Step 2. Install Camera and Network Devices
< CB Series>

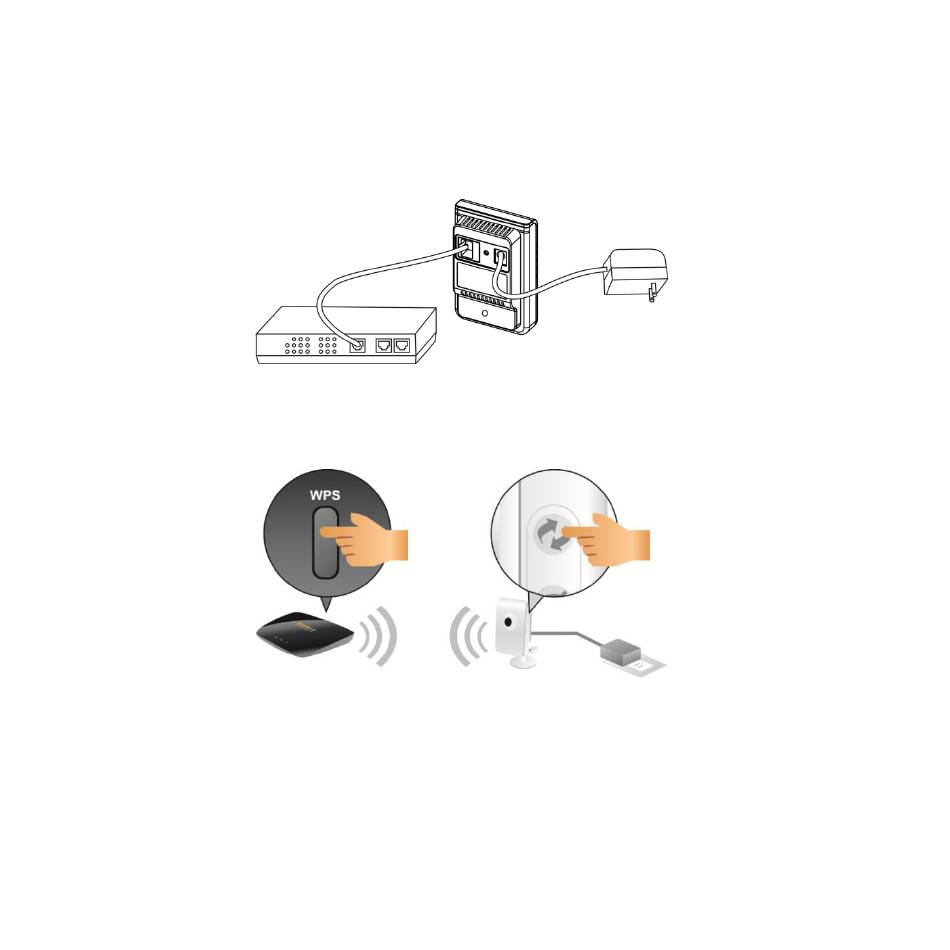

Wired Connection
Connect the supplied power cable from the camera to a power outlet and the camera to a switch
via Ethernet cable.
Wireless Connection
Connect the supplied power cable from the camera to a power outlet. And press WPS button
both on the camera and the wireless router (DWRT-600N).
1) Terminal I/O Connector Block Connection
Attach the supplied connector block to the terminal connector on the camera. Refer to the
diagram below to attach external devices to the connector block.
