Strapex STP 62
4

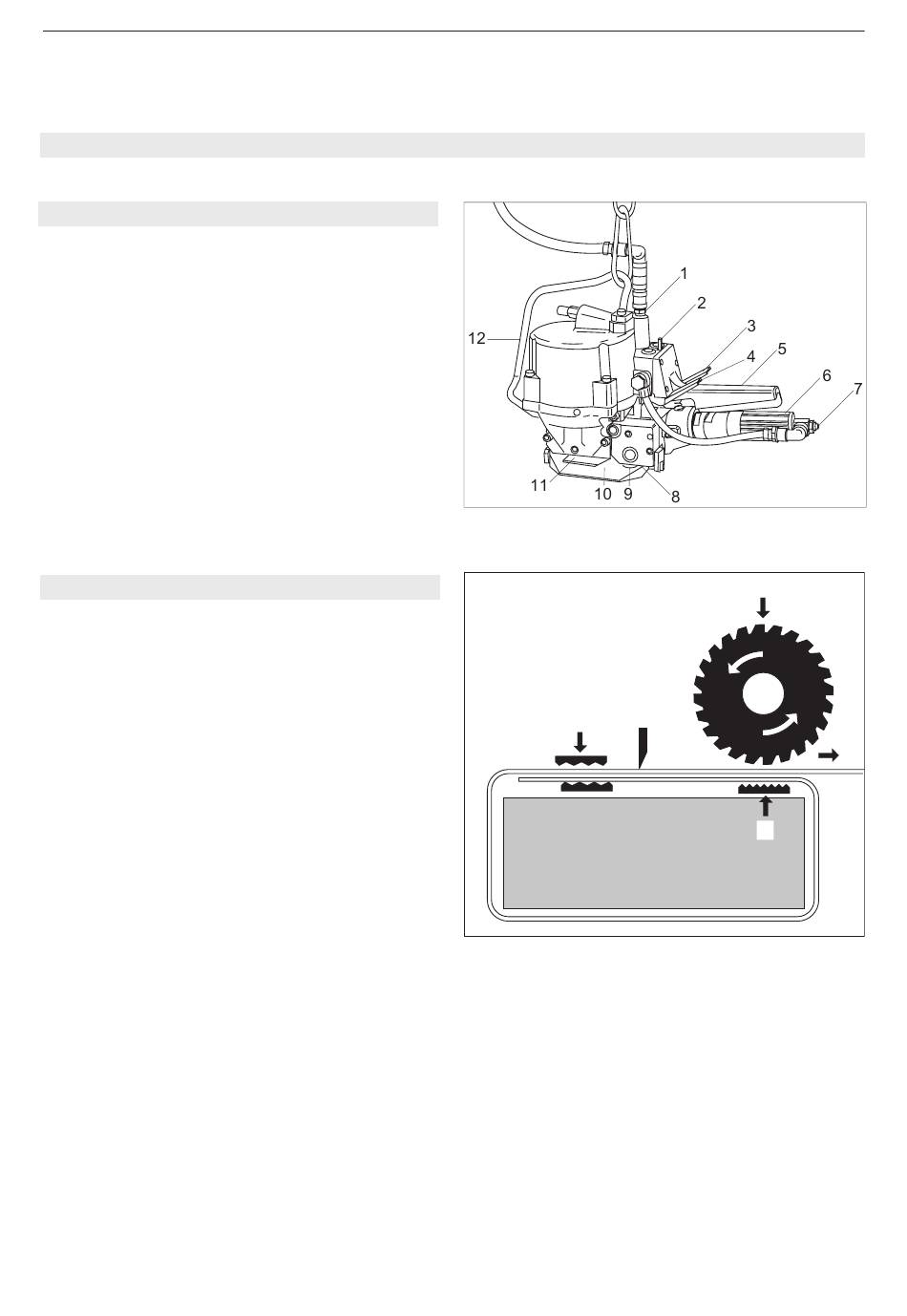

4.1 DESIGN

1 Compressed air connection
2 Pawl (Interrupting tensioning process)
3 Yellow button (Sealing)
4 Green button (Tensioning)
5 Handle
6 Compressed air motor
7 Pressure reduzing valve
8 Tension wheel
9 Tension plug
10 Base plate
11 Sealing jaws
12 Suspension bow

4.2 FUNCTION

– Strap clamped by pressure on toothed plate (2/2).
– Tensioning by feed wheel principle (2/1).
– Sealing by punching strap (2/3).
– Strap cut with knife (2/4).
16

DESCRIPTION

Fig. 1
Fig. 2
4
3
1
2
05.11
