Technical Specifications - Simons Voss Technologies SmartCD.G2 Kurzanleitung

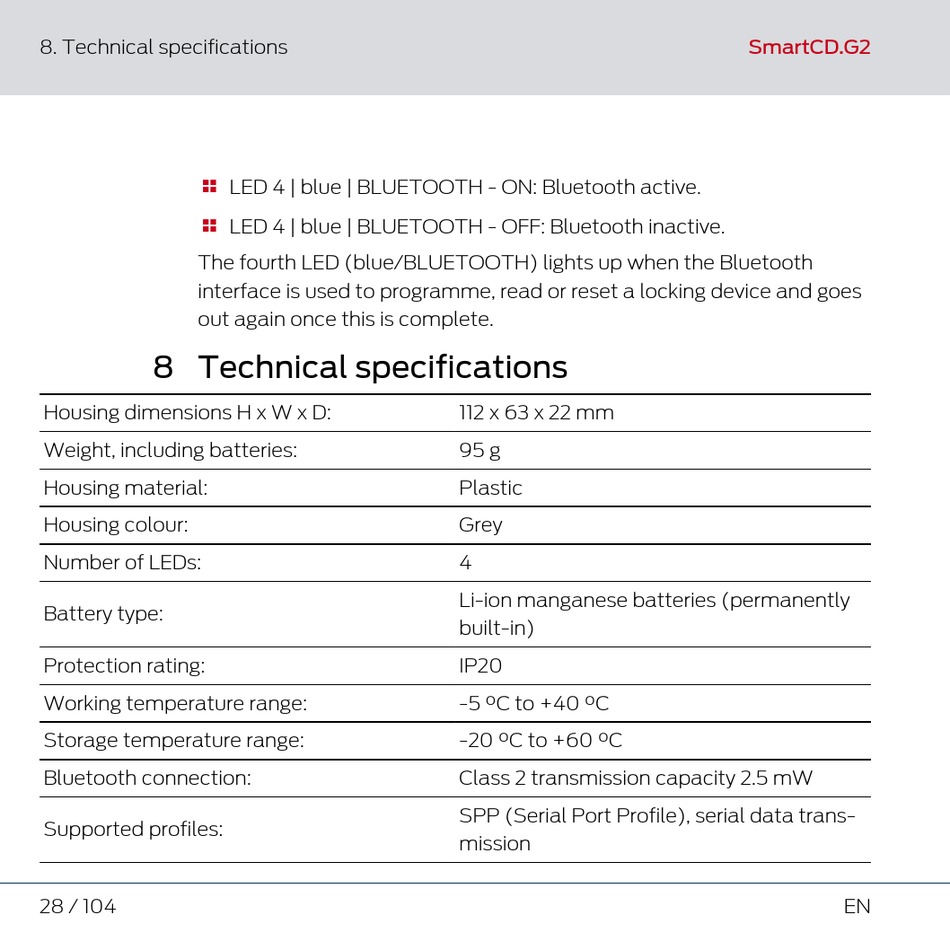

8. Technical specifications



The fourth LED (blue/BLUETOOTH) lights up when the Bluetooth
interface is used to programme, read or reset a locking device and goes
out again once this is complete.
8 Technical specifications
Housing dimensions H x W x D:
Weight, including batteries:
Housing material:
Housing colour:
Number of LEDs:
Battery type:
Protection rating:
Working temperature range:
Storage temperature range:
Bluetooth connection:
Supported profiles:
28 / 104
LED 4 | blue | BLUETOOTH - ON: Bluetooth active.
LED 4 | blue | BLUETOOTH - OFF: Bluetooth inactive.
112 x 63 x 22 mm
95 g
Plastic
Grey
4
Li-ion manganese batteries (permanently
built-in)
IP20
-5 °C to +40 °C
-20 °C to +60 °C
Class 2 transmission capacity 2.5 mW
SPP (Serial Port Profile), serial data trans-
mission
SmartCD.G2
EN
