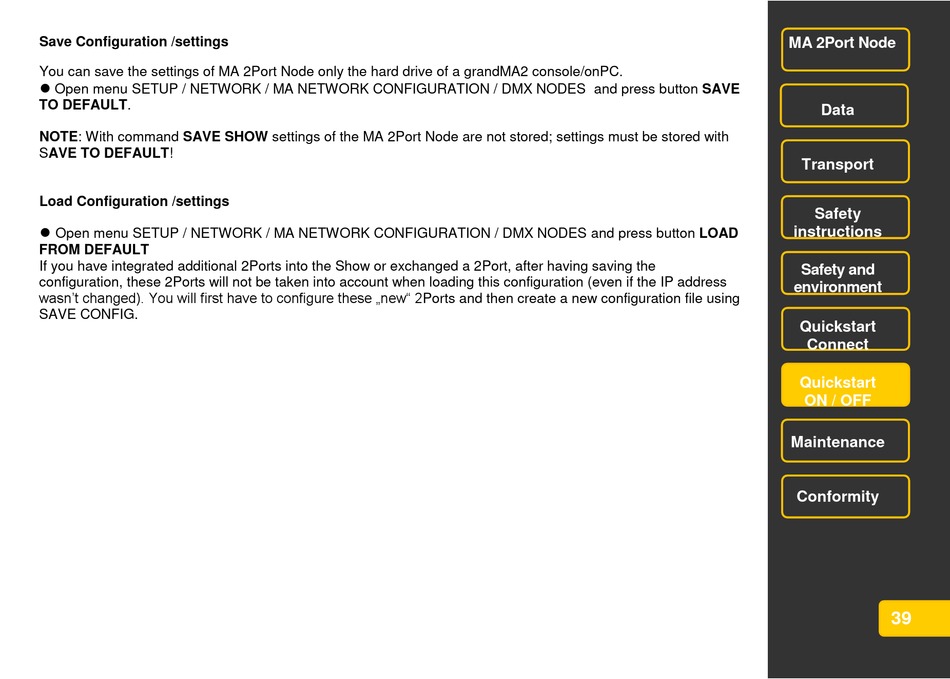

Save Configuration /settings
You can save the settings of MA 2Port Node only the hard drive of a grandMA2 console/onPC.

Open menu SETUP / NETWORK / MA NETWORK CONFIGURATION / DMX NODES and press button SAVE
TO DEFAULT.
NOTE: With command SAVE SHOW settings of the MA 2Port Node are not stored; settings must be stored with
SAVE TO DEFAULT!
Load Configuration /settings


Open menu SETUP / NETWORK / MA NETWORK CONFIGURATION / DMX NODES and press button LOAD
FROM DEFAULT
If you have integrated additional 2Ports into the Show or exchanged a 2Port, after having saving the
configuration, these 2Ports will not be taken into account when loading this configuration (even if the IP address
wasn't changed). You will first have to configure these „new" 2Ports and then create a new configuration file using
SAVE CONFIG.
