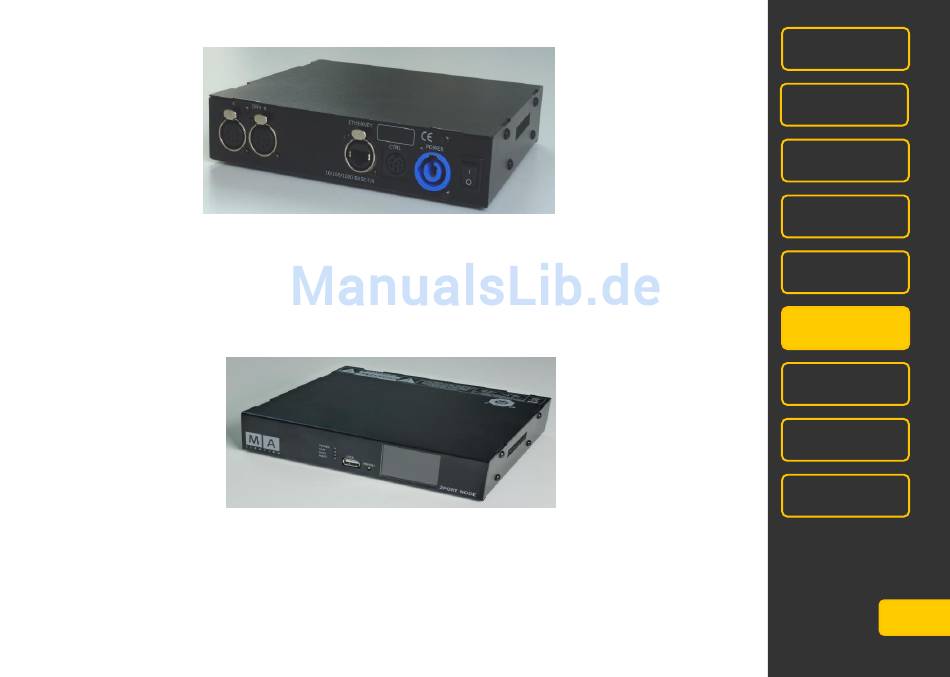

Connectivity
2 x DMX OUT (XLR 5 pin)
RJ45 Ethernet socket
CTRL
PowerCon In (blue)
Main switch
USB socket
MENU –button
POWER-LED green
LINK-LED green
DATA-LED green
BOOT-LED red
Ports can also be configured to DMX IN
Network connection
Currently no function
100 – 240 V~ 50/60 Hz
(USA, Canada) Automatic operation, no switching
necessary! The open end must be fitted with a shock-proof plug and must
meet the local requirements.
To turn on or off the device
To update via USB-stick - do not connect peripherals –mouse, keyboard, etc.!
To switch the menu and setting of parameters (see also Quickstart ON/OFF)
Steady = device is ready
Steady = light signals correct connection to onPC or console
Flashes = data-traffic
Lights during the boot process
