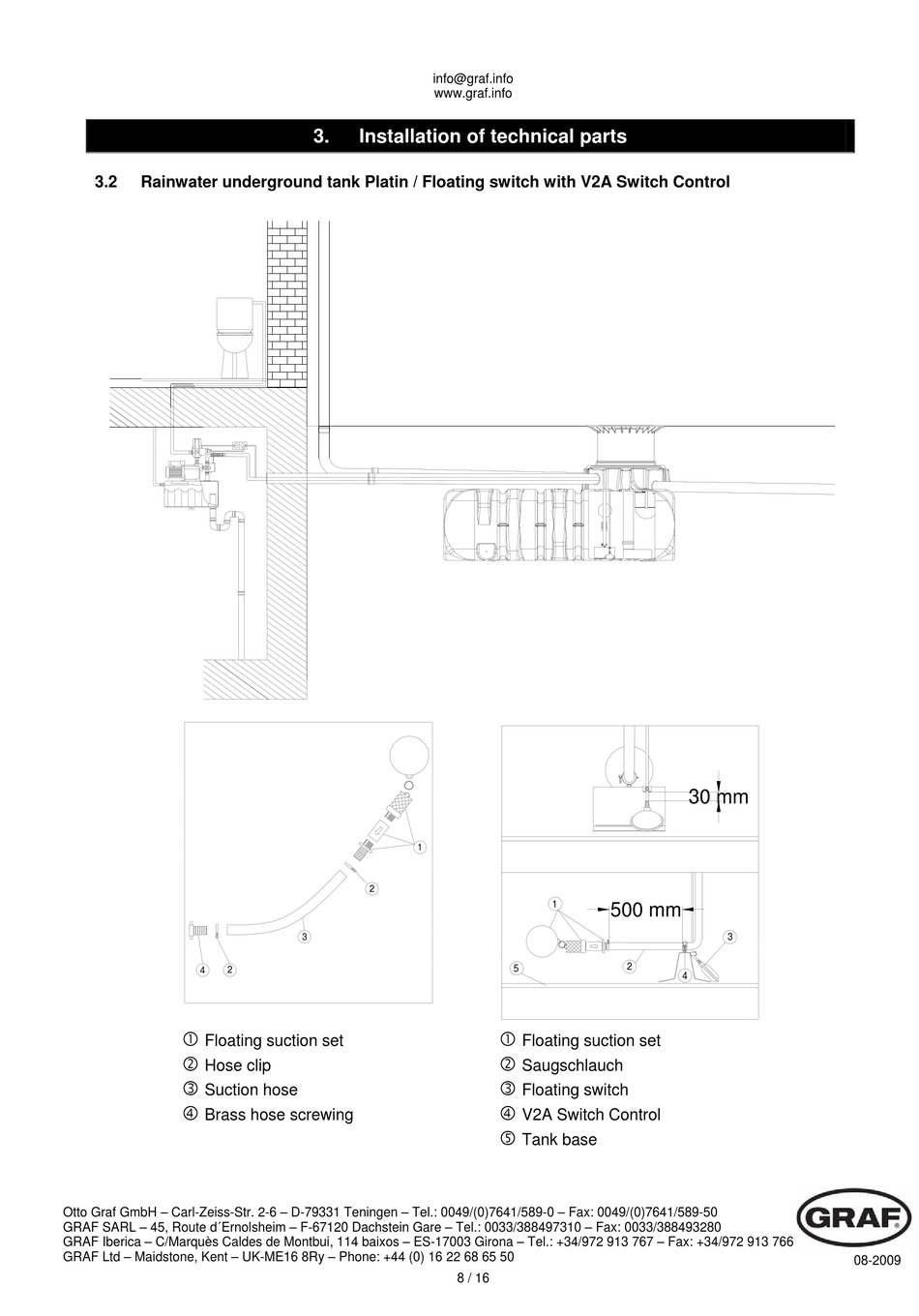

3.2 Rainwater underground tank Platin / Floating switch with V2A Switch Control
4 2
Floating suction set
Hose clip
Suction hose
Brass hose screwing
