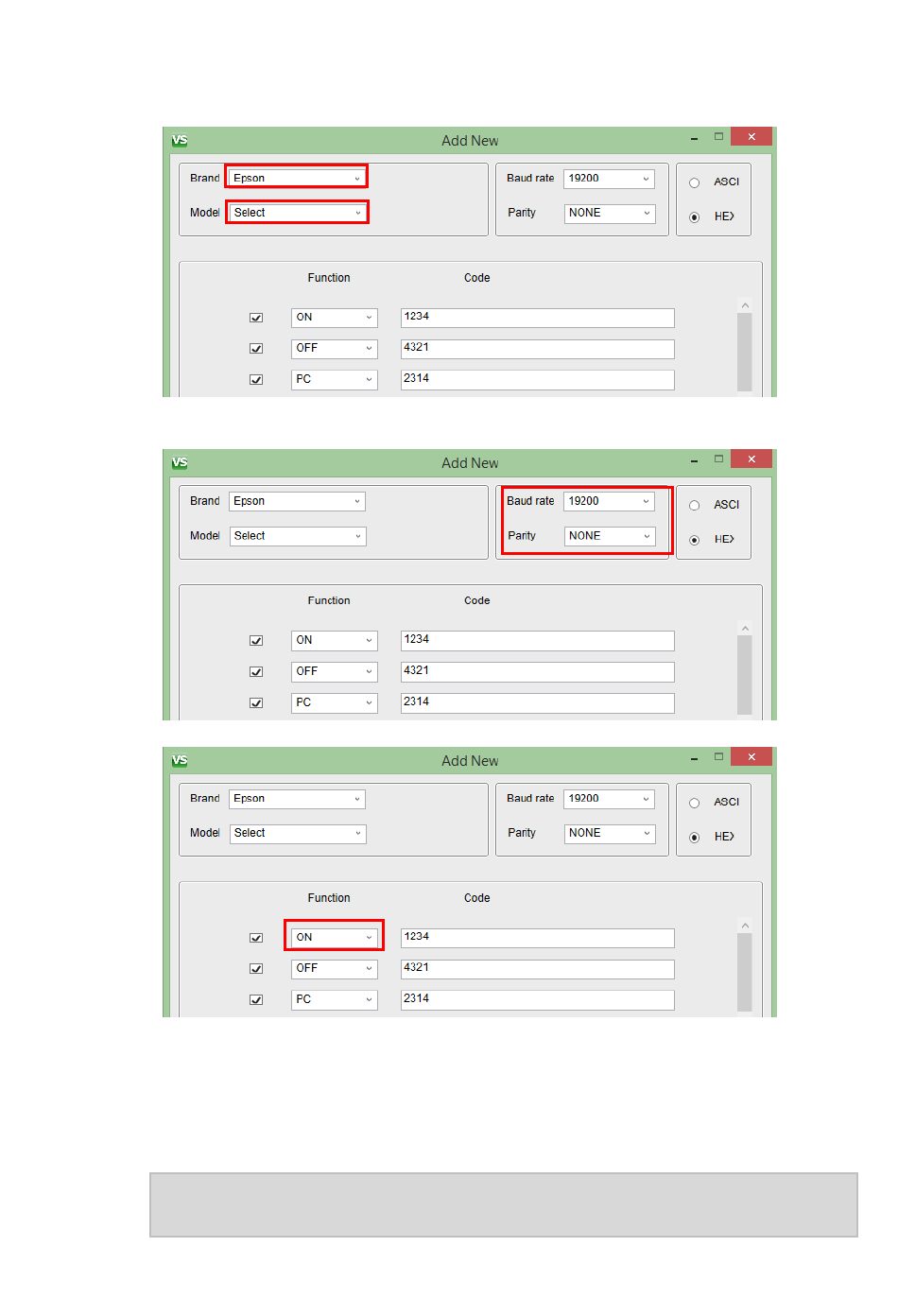

6. SET UP NEW CODES select "Add New" in any of the device columns. A new window
appears:
a. Type over existing text in Device / Brand / Model fields.
b. RS-232 only: Baud Rate and Parity settings are normally unchanged. The
projector manual will advise if they need to be changed.
c. Type over existing text in Function fields and enter code.
d. If adding IR codes a learn button will be to the right of each code.
Note: External power is not required for the module. Set power switch to
"PWR".
i. Connect a TC2-CTL3 to PC with a USB cable.
ii. Press learn then wait until the red LED lights on the module
iii. Point original remote at front of module and press and hold button
iv. Once you have finished the button will be blue to show codes are
allocated.
