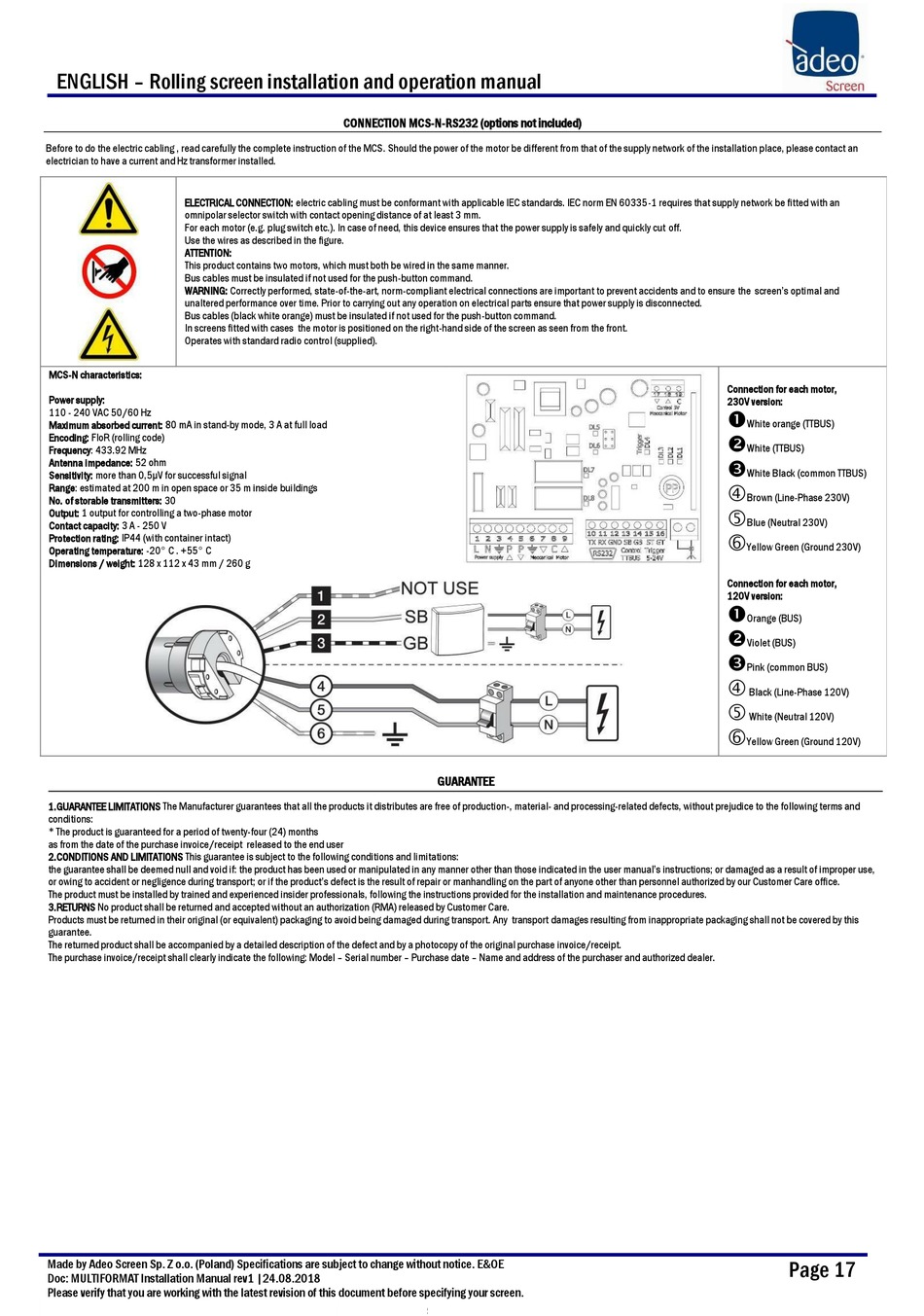

ADEO SCREEN MULTIFORMAT Bedienungs- Und Installationsanleitung Seite 17

ENGLISH – Rolling screen installation and operation manual
Before to do the electric cabling , read carefully the complete instruction of the MCS. Should the power of the motor be different from that of the supply network of the installation place, please contact an
electrician to have a current and Hz transformer installed.
ELECTRICAL CONNECTION: electric cabling must be conformant with applicable IEC standards. IEC norm EN 60335-1 requires that supply network be fitted with an
omnipolar selector switch with contact opening distance of at least 3 mm.
For each motor (e.g. plug switch etc.). In case of need, this device ensures that the power supply is safely and quickly cut off.
Use the wires as described in the figure.
ATTENTION:
This product contains two motors, which must both be wired in the same manner.
Bus cables must be insulated if not used for the push-button command.
WARNING: Correctly performed, state-of-the-art, norm-compliant electrical connections are important to prevent accidents and to ensure the screen's optimal and
unaltered performance over time. Prior to carrying out any operation on electrical parts ensure that power supply is disconnected.
Bus cables (black white orange) must be insulated if not used for the push-button command.
In screens fitted with cases the motor is positioned on the right-hand side of the screen as seen from the front.
Operates with standard radio control (supplied).
MCS-N characteristics:
Power supply:
110 - 240 VAC 50/60 Hz
Maximum absorbed current: 80 mA in stand-by mode, 3 A at full load
Encoding: FloR (rolling code)
Frequency: 433.92 MHz
Antenna impedance: 52 ohm
Sensitivity: more than 0,5μV for successful signal
Range: estimated at 200 m in open space or 35 m inside buildings
No. of storable transmitters: 30
Output: 1 output for controlling a two-phase motor
Contact capacity: 3 A - 250 V
Protection rating: IP44 (with container intact)
Operating temperature: -20° C . +55° C
Dimensions / weight: 128 x 112 x 43 mm / 260 g
1.GUARANTEE LIMITATIONS The Manufacturer guarantees that all the products it distributes are free of production-, material- and processing-related defects, without prejudice to the following terms and
conditions:
* The product is guaranteed for a period of twenty-four (24) months
as from the date of the purchase invoice/receipt released to the end user
2.CONDITIONS AND LIMITATIONS This guarantee is subject to the following conditions and limitations:
the guarantee shall be deemed null and void if: the product has been used or manipulated in any manner other than those indicated in the user manual's instructions; or damaged as a result of improper use,
or owing to accident or negligence during transport; or if the product's defect is the result of repair or manhandling on the part of anyone other than personnel authorized by our Customer Care office.
The product must be installed by trained and experienced insider professionals, following the instructions provided for the installation and maintenance procedures.
3.RETURNS No product shall be returned and accepted without an authorization (RMA) released by Customer Care.
Products must be returned in their original (or equivalent) packaging to avoid being damaged during transport. Any transport damages resulting from inappropriate packaging shall not be covered by this
guarantee.
The returned product shall be accompanied by a detailed description of the defect and by a photocopy of the original purchase invoice/receipt.
The purchase invoice/receipt shall clearly indicate the following: Model – Serial number – Purchase date – Name and address of the purchaser and authorized dealer.
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Doc: MULTIFORMAT Installation Manual rev1 |24.08.2018
Please verify that you are working with the latest revision of this document before specifying your screen.
CONNECTION MCS-N-RS232 (options not included)
GUARANTEE
Connection for each motor,
230V version:

White orange (TTBUS)

White (TTBUS)

White Black (common TTBUS)

Brown (Line-Phase 230V)

Blue (Neutral 230V)

Yellow Green (Ground 230V)
Connection for each motor,
120V version:

Orange (BUS)

Violet (BUS)

Pink (common BUS)

Black (Line-Phase 120V)

White (Neutral 120V)

Yellow Green (Ground 120V)
