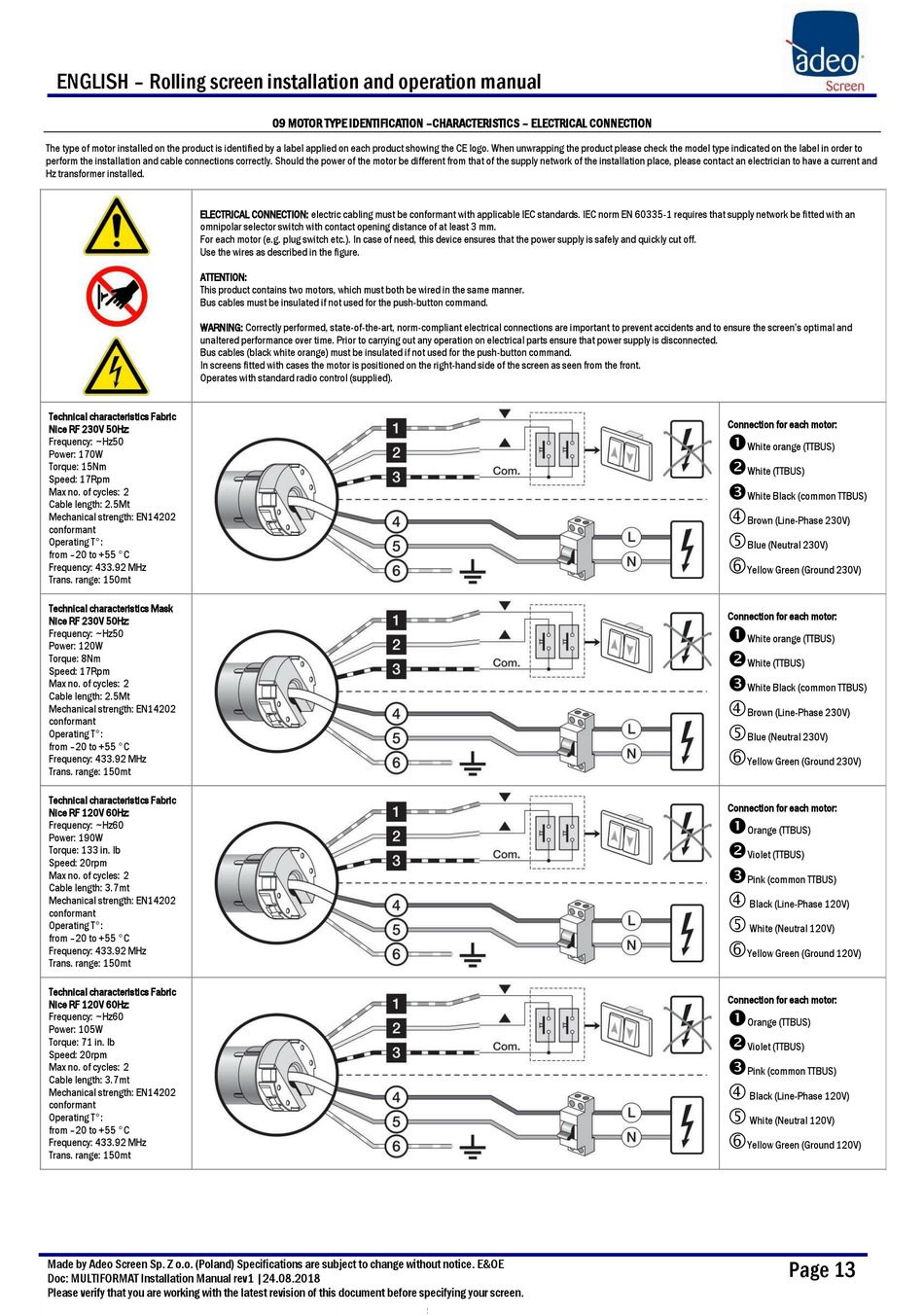

ENGLISH – Rolling screen installation and operation manual
The type of motor installed on the product is identified by a label applied on each product showing the CE logo. When unwrapping the product please check the model type indicated on the label in order to
perform the installation and cable connections correctly. Should the power of the motor be different from that of the supply network of the installation place, please contact an electrician to have a current and
Hz transformer installed.
ELECTRICAL CONNECTION: electric cabling must be conformant with applicable IEC standards. IEC norm EN 60335-1 requires that supply network be fitted with an
omnipolar selector switch with contact opening distance of at least 3 mm.
For each motor (e.g. plug switch etc.). In case of need, this device ensures that the power supply is safely and quickly cut off.
Use the wires as described in the figure.
ATTENTION:
This product contains two motors, which must both be wired in the same manner.
Bus cables must be insulated if not used for the push-button command.
WARNING: Correctly performed, state-of-the-art, norm-compliant electrical connections are important to prevent accidents and to ensure the screen's optimal and
unaltered performance over time. Prior to carrying out any operation on electrical parts ensure that power supply is disconnected.
Bus cables (black white orange) must be insulated if not used for the push-button command.
In screens fitted with cases the motor is positioned on the right-hand side of the screen as seen from the front.
Operates with standard radio control (supplied).
Technical characteristics Fabric
Nice RF 230V 50Hz:
Frequency: ~Hz50
Power: 170W
Torque: 15Nm
Speed: 17Rpm
Max no. of cycles: 2
Cable length: 2.5Mt
Mechanical strength: EN14202
conformant
Operating T°:
from –20 to +55 °C
Frequency: 433.92 MHz
Trans. range: 150mt
Technical characteristics Mask
Nice RF 230V 50Hz:
Frequency: ~Hz50
Power: 120W
Torque: 8Nm
Speed: 17Rpm
Max no. of cycles: 2
Cable length: 2.5Mt
Mechanical strength: EN14202
conformant
Operating T°:
from –20 to +55 °C
Frequency: 433.92 MHz
Trans. range: 150mt
Technical characteristics Fabric
Nice RF 120V 60Hz:
Frequency: ~Hz60
Power: 190W
Torque: 133 in. lb
Speed: 20rpm
Max no. of cycles: 2
Cable length: 3.7mt
Mechanical strength: EN14202
conformant
Operating T°:
from –20 to +55 °C
Frequency: 433.92 MHz
Trans. range: 150mt
Technical characteristics Fabric
Nice RF 120V 60Hz:
Frequency: ~Hz60
Power: 105W
Torque: 71 in. lb
Speed: 20rpm
Max no. of cycles: 2
Cable length: 3.7mt
Mechanical strength: EN14202
conformant
Operating T°:
from –20 to +55 °C
Frequency: 433.92 MHz
Trans. range: 150mt
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Doc: MULTIFORMAT Installation Manual rev1 |24.08.2018
Please verify that you are working with the latest revision of this document before specifying your screen.
09 MOTOR TYPE IDENTIFICATION –CHARACTERISTICS – ELECTRICAL CONNECTION
Connection for each motor:
White orange (TTBUS)
White (TTBUS)
White Black (common TTBUS)
Brown (Line-Phase 230V)
Blue (Neutral 230V)
Yellow Green (Ground 230V)
Connection for each motor:
White orange (TTBUS)
White (TTBUS)
White Black (common TTBUS)
Brown (Line-Phase 230V)
Blue (Neutral 230V)
Yellow Green (Ground 230V)
Connection for each motor:
Orange (TTBUS)
Violet (TTBUS)
Pink (common TTBUS)
Black (Line-Phase 120V)
White (Neutral 120V)
Yellow Green (Ground 120V)
Connection for each motor:
Orange (TTBUS)
Violet (TTBUS)
Pink (common TTBUS)
Black (Line-Phase 120V)
White (Neutral 120V)
Yellow Green (Ground 120V)
Page 13
