AXIS T92E05/T92E20 Installation Guide

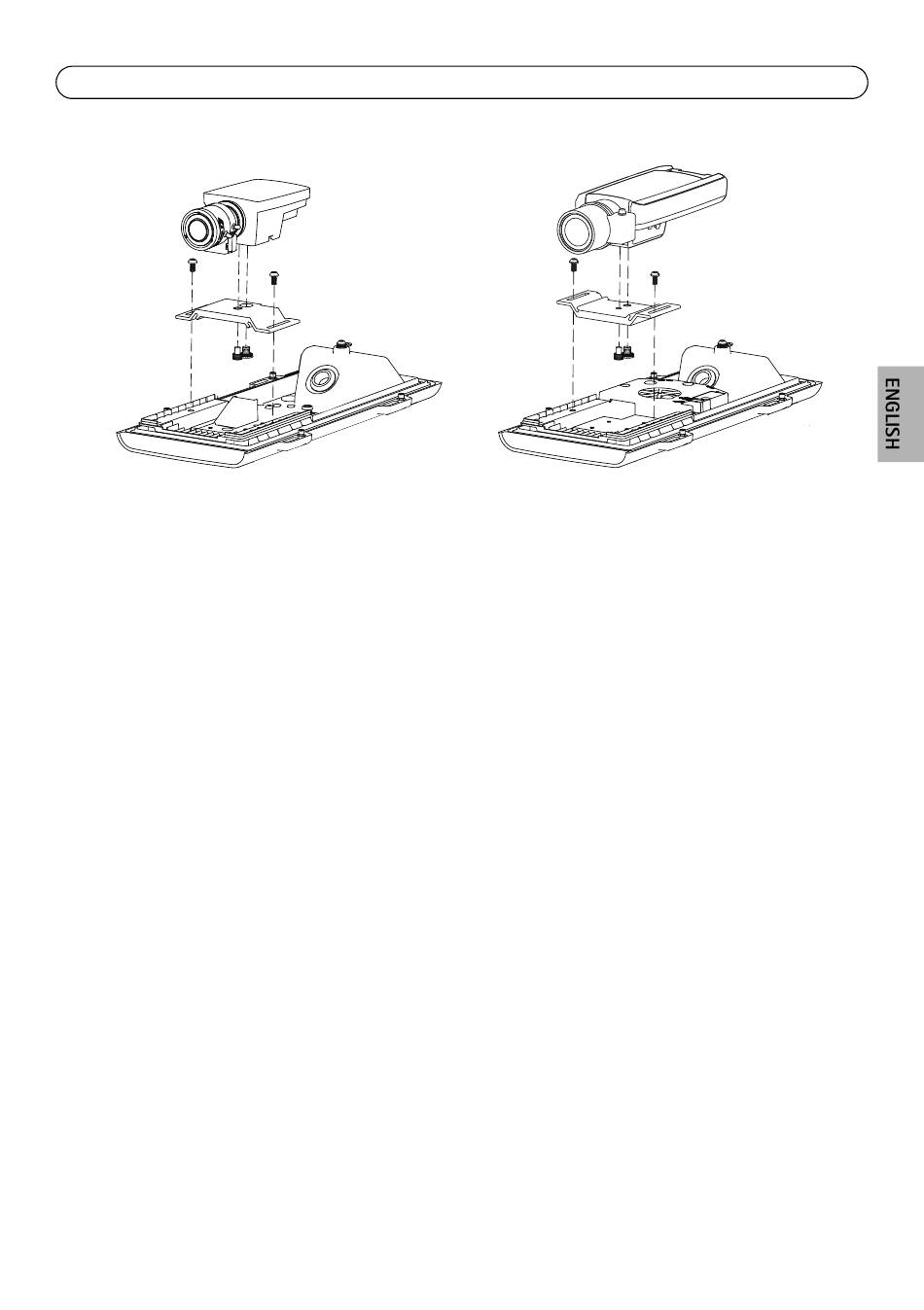

Example images: AXIS M1114 Network camera and AXIS T92E05 Protective Housing
AXIS P1343 Network camera and AXIS T92E20 Outdoor Housing
4. If applicable, connect the network cable and the I/O cable, which are pre-installed in the
outdoor housing, to the camera, see illustration on page 10 and table on page 8.
5. Fit the holder on the bottom cover and adjust its position. Allow just enough distance,
approximately 5–10 mm (0.2–0.4 in.), between the camera lens and the front end of the plastic
inner housing to fit the top cover without the window scratching the lens.
6. Tighten the screws.
7. Optionally insert an SD memory card (not included) into the SDHC (Secure Digital High
Capacity) card slot. A standard or high capacity SD card is required to store images locally in
the camera.
8. If applicable, set the Cold Startup Delay switch to the correct position, see table on page 8 and
Cold Startup Delay Switch, on page 12.
Note:
IO cables and camera holders may vary between different camera models.
Install the camera on the bracket
1. Loosen the cable cover screws and remove the cable cover from the bottom cover.
2. Install the camera with the bottom cover on the bracket and tighten the bracket adapter
screws.
3. Remove the gasket from one of the holes in the bottom cover, see illustrations on page 6 and
page 11.
