4. Route the cable through the hole and attach the cable gasket to the hole.
I/O cable
Bracket adapter screw (4x)
Bracket adjustment screw
5. Install the cable cover and tighten the cable cover screws.
6. Connect the camera to the network. Depending on the type of housing, connect the network
cable to the network connector on the camera or the housing, see illustrations on page 10 and
page 10.

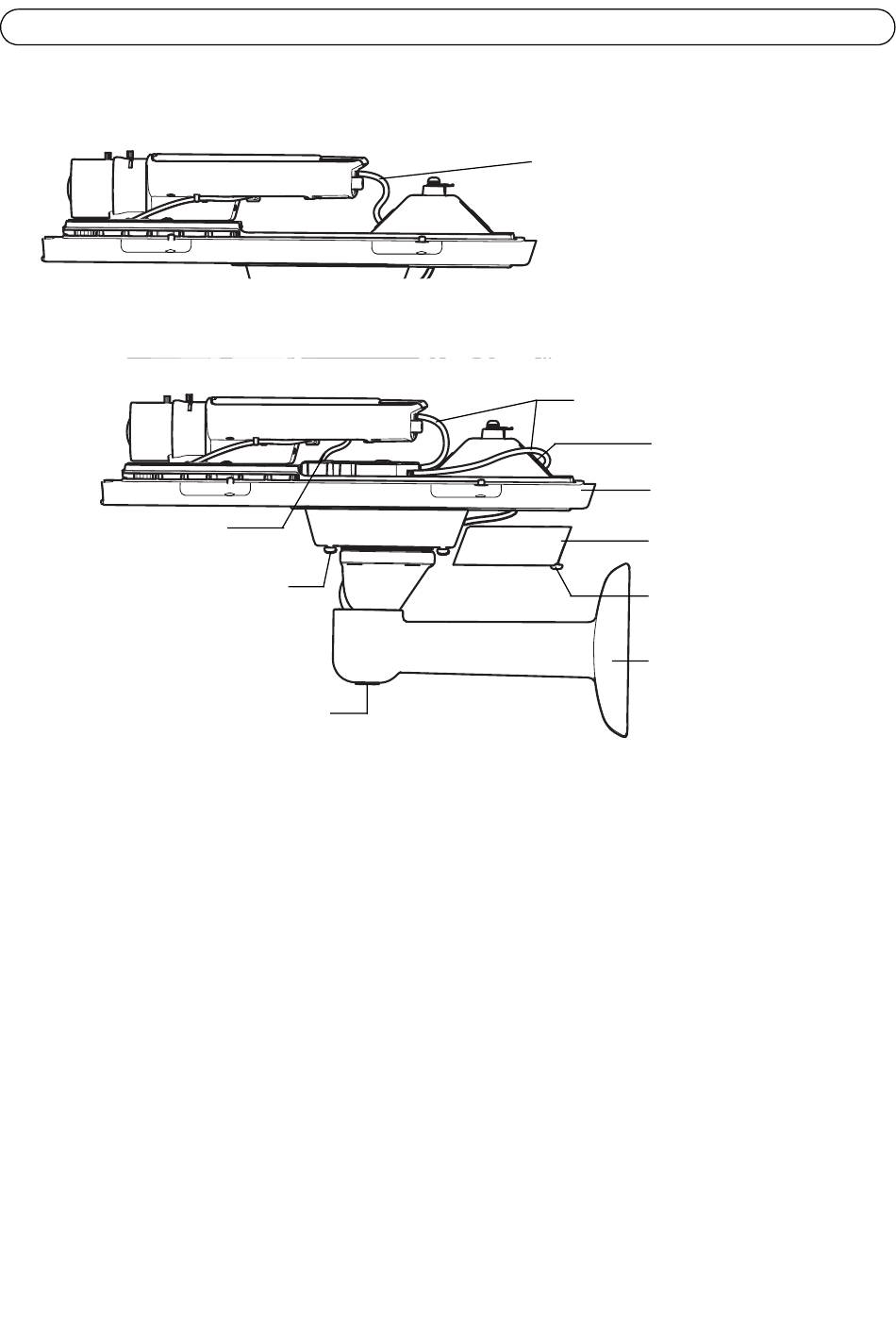

Example image: AXIS P1343 Network Camera and AXIS T92E05 Protective Housing
Example image: AXIS P1343 Network Camera and AXIS T92E20 Outdoor Housing
AXIS T92E05/T92E20 Installation Guide
Network cable (route
through wall bracket)
Network cables
Cable holes
Bottom cover
Cable cover
Cable cover screw (2x)
Wall bracket
