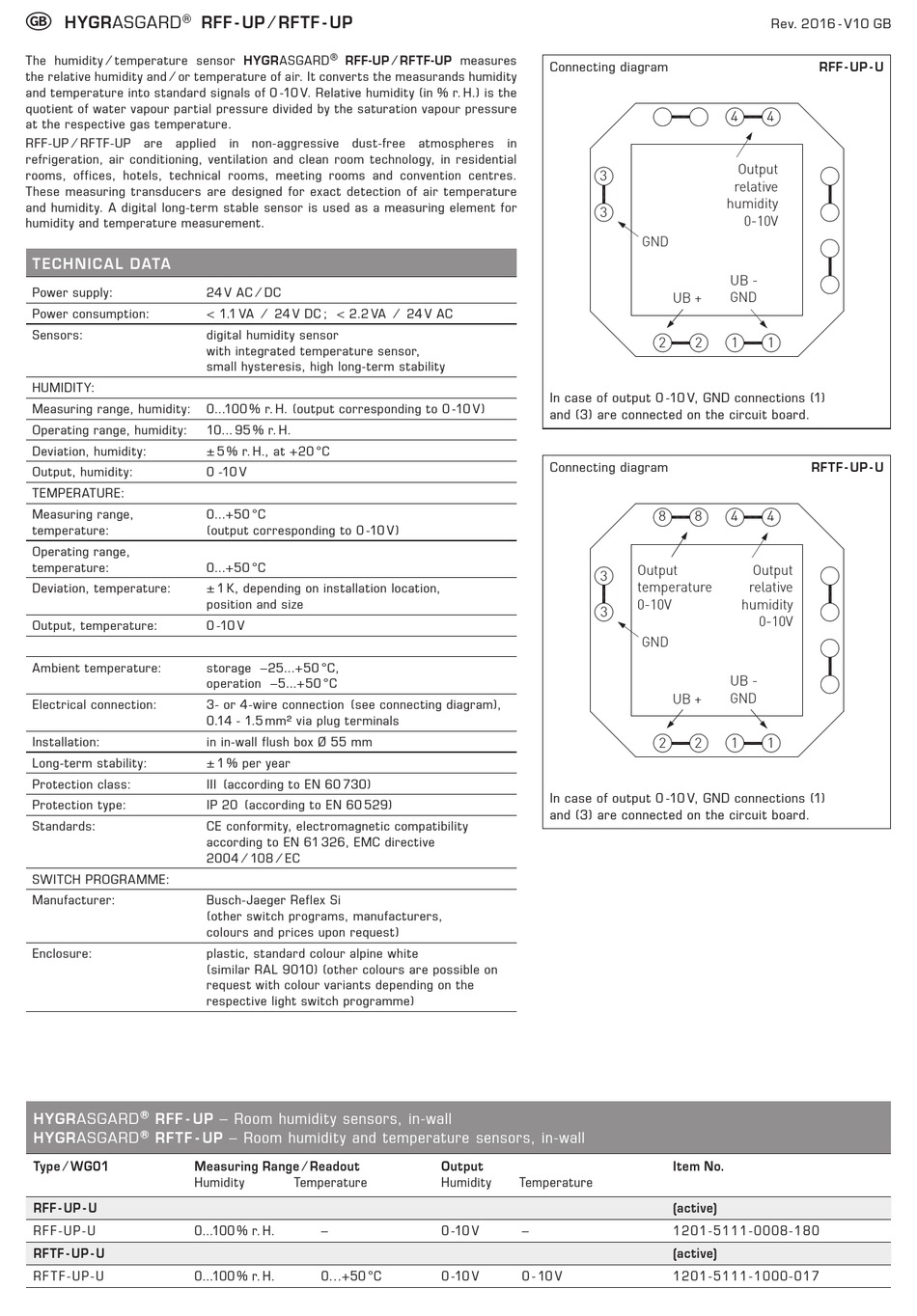

Technical Data - S+S REGELTECHNIK HYGRASGARD RFF-UP Bedienungs- Und Montageanleitung

G
®
HYGRASGARD
The humidity ⁄ temperature sensor HYGRASGARD
the relative humidity and ⁄ or temperature of air. It converts the measurands humidity
and temperature into standard signals of 0 -10 V. Relative humidity (in % r. H.) is the
quotient of water vapour partial pressure divided by the saturation vapour pressure
at the respective gas temperature.
RFF-UP ⁄ RFTF-UP are applied in non-aggressive dust-free atmospheres in
refrigeration, air conditioning, ventilation and clean room technology, in residential
rooms, offices, hotels, technical rooms, meeting rooms and convention centres.
These measuring transducers are designed for exact detection of air temperature
and humidity. A digital long-term stable sensor is used as a measuring element for
humidity and temperature measurement.

TECHNICAL DATA

Power supply:
Power consumption:
Sensors:
HUMIDITY:
Measuring range, humidity:
Operating range, humidity:
Deviation, humidity:
Output, humidity:
TEMPERATURE:
Measuring range,
temperature:
Operating range,
temperature:
Deviation, temperature:
Output, temperature:
Ambient temperature:
Electrical connection:
Installation:
Long-term stability:
Protection class:
Protection type:
Standards:
SWITCH PROGRAMME:
Manufacturer:
Enclosure:
HYGRASGARD ® RFF - UP – Room humidity sensors, in-wall
®
HYGRASGARD RFTF - UP – Room humidity and temperature sensors, in-wall
Type ⁄ WG01 Measuring Range ⁄ Readout
Humidity
RFF - UP - U
R F F - U P - U 0...100 % r. H.
RFTF - UP - U
R F T F - U P - U 0...100 % r. H.
RFF - UP ⁄ RFTF - UP
® RFF-UP ⁄ RFTF-UP measures
24 V AC ⁄ DC
< 1.1 VA ⁄ 24 V DC ; < 2.2 VA ⁄ 24 V AC
digital humidity sensor
with integrated temperature sensor,
small hysteresis, high long-term stability
0...100 % r. H. (output corresponding to 0 -10 V)
10... 95 % r. H.
± 5 % r. H., at +20 °C
0 -10 V
0...+50 °C
(output corresponding to 0 -10 V)
0...+50 °C
± 1 K, depending on installation location,
position and size
0 -10 V
storage –25...+50 °C,
operation –5...+50 °C
3- or 4-wire connection (see connecting diagram),
0.14 - 1.5 mm² via plug terminals
in in-wall flush box Ø 55 mm
± 1 % per year
III (according to EN 60 730)
IP 20 (according to EN 60 529)
CE conformity, electromagnetic compatibility
according to EN 61 326, EMC directive
2004 ⁄ 108 ⁄ EC
Busch-Jaeger Reflex Si
(other switch programs, manufacturers,
colours and prices upon request)
plastic, standard colour alpine white
(similar RAL 9010) (other colours are possible on
request with colour variants depending on the
respective light switch programme)
Temperature
–
0...+50 °C
Connecting diagram
3
3
In case of output 0 -10 V, GND connections (1)
and (3) are connected on the circuit board.
Connecting diagram
3
3
In case of output 0 -10 V, GND connections (1)
and (3) are connected on the circuit board.
Output
Humidity Temperature
0 -10 V –
0 -10 V 0 - 10 V
Rev. 2016 - V10 GB
4 4
Output
relative
humidity
0-10V
GND
UB -
GND
UB +
2 2 1 1
8 8 4 4
Output Output
temperature relative
0-10V humidity
0-10V
GND
UB -
UB + GND
2 2 1 1
Item No.
(active)
1201-5111-0008-180
(active)
1201-5111-1000-017
RFF - UP - U
RFTF - UP - U
