– use of all contacts in mains voltage electric circuits;
EN
– use of all contacts in very low voltage electric circuits;
– use of relays 1 and 2 (or 3 and 4) in mains voltage electric
circuits and relays 3 and 4 (or 1 and 2) in very low voltage
electric circuits.
Relay wiring diagrams
Fig. 4 shows the diagram for connection of the relays to a
general electric circuit (motor, lamp etc.) with power from the
mains.
Fig. 5 shows the diagram for connection of the relays to a bi-
directional motor (awnings, Venetian blinds etc.).

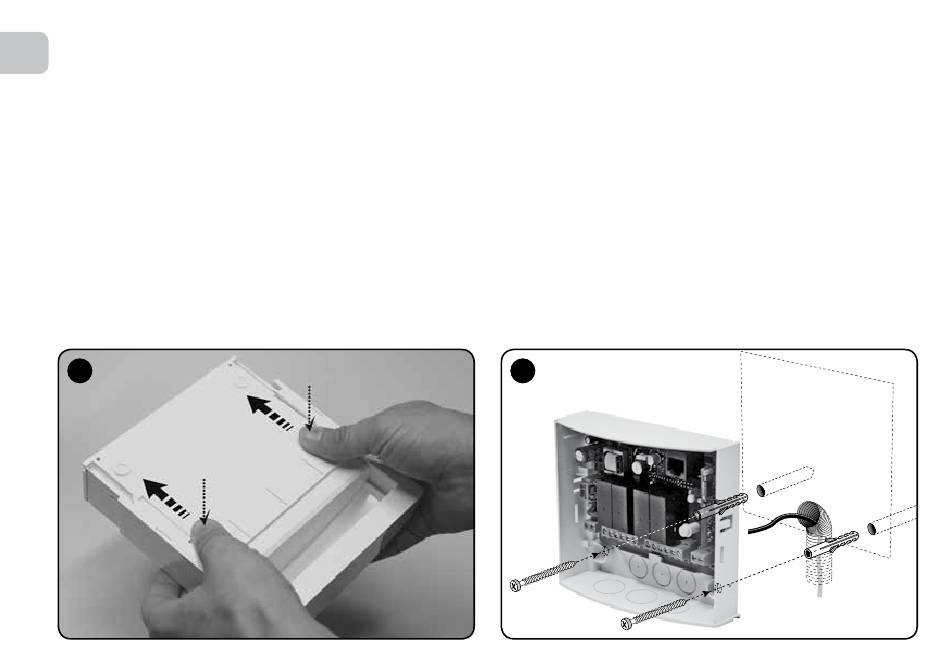

1
4
Warnings for aerial connection
• When connecting the aerial supplied, leave the wire at the
length supplied and lay straight to avoid excessive bending.
• If the receiver is not in a good position and the radio signal
is weak, replace the aerial supplied with an external version
to improve reception (mod. ABF or ABFKIT). The new aerial
must be positioned as high as possible above any metal or
reinforced concrete structures present in the area.
2
