General Information

Installation

All installations should comply with local
regulations
Do NOT position Detector where personnel
or objects can enter the beam path
Do NOT install the Detector or Reflector in
environments where condensation or icing are
likely to occur unless preventative measures
have been taken
0.5m
Position beam as high as possible, but with a
minimum distance of 0.3m from Detector and
Reflector to ceiling.
For detectors approved to UL268 refer to
NFPA72 for installation guidance. In such
installations, it is advised that the maximum
distance of Detector and Reflector from the
ceiling must be 10% of the distance between
floor and ceiling
≥ 0.3m

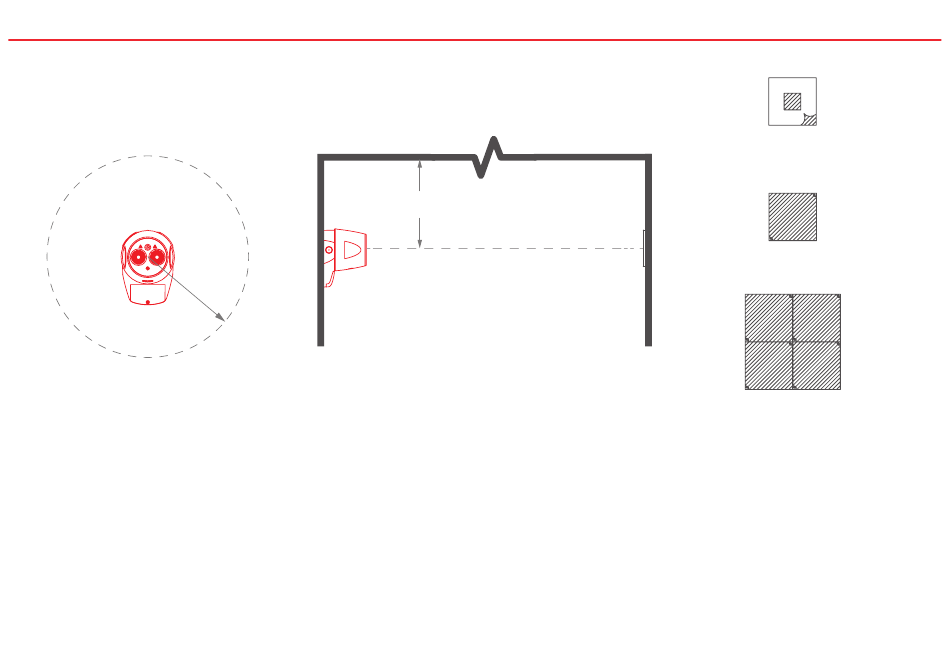

5m - 120m
5 - 20m =
1Reflector + Short Range Mask
20 - 50m = 1 Reflector
50 - 120m = 4 Reflectors
Ensure correct Reflector selected for the
appropriate distance
Mount Detector and Reflector directly
opposite each other
Do not mount Reflector onto reflective
surfaces
