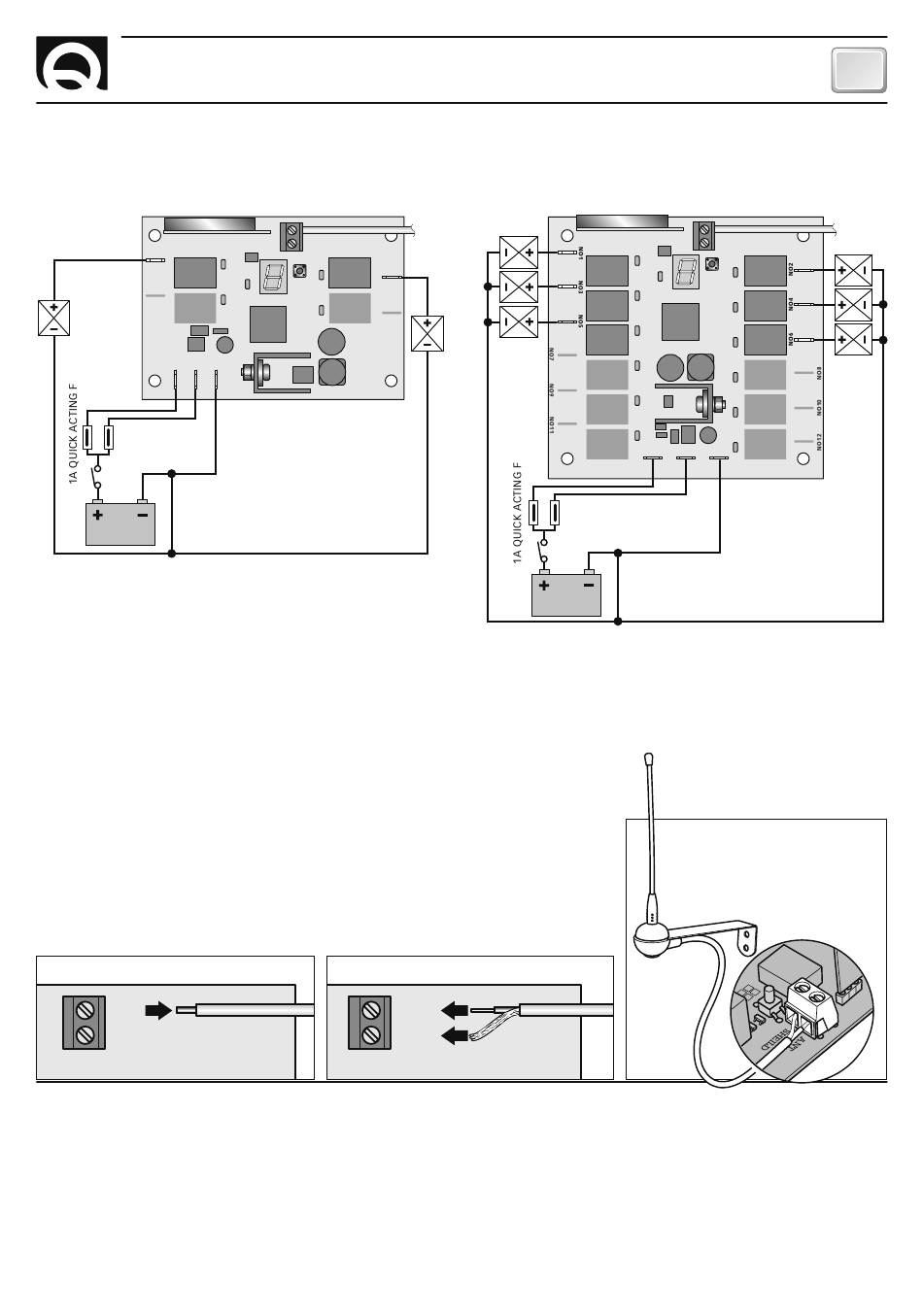

CONNECTION EXAMPLES

R02 - R04
FIG.2
NO1
relè 1
*
NO3
relè 3
V+ COM
FUSE **
COMMON FOR THE
USED DEVICES
10,5-31Vdc
BATTERY
*
DEVICES USED IN DIRECT CURRENT
**
THE FUSE VALUE MUST BE CHOSEN BASED ON ABSORPTION
OF THE USED DEVICES.
EXTERNAL ANTENNA
If the installation of an external antenna is required, proceed as follows:
• remove the internal antenna, made of an 8 cm long folded wire, from the
ANT input (fi g.3).
• Connect the centre core of the coaxial cable of the antenna to the ANT
input (fi g.4). The metallic shield must be connected to the SHIELD input.
• Coaxial cable during laying must not be throttled and bended at a right
angle. Must also be taken away from heat sources.
• The antenna must be installed vertically at a distance of at least 1 metre
above the boat fl oating level, away from electrical sources of disturbance
and not inside any metal structures.
• Do not install the antenna close to that of other equipment as VHF, radar,
GPS, etc.
FIG.3
ANT
SHEILD
OPERATION
Start-up
The receiver starts-up once the power supply is connected. After start-up, the ON/OFF LED and all display seg-
ments will light up for a short time.
Awaiting signal status
The ON/OFF LED fl ashes slowly. The receiver waits for a valid command from a stored transmitter or for confi gura-
tion.
RRC R02/12 - REV002A
ANT
SHEILD
PROG
relè 2
relè 4
1
V -
FIG.4
INSTALLATION - OPERATION
R06 - R08 - R10 - R12
NO2
*
NO4
*
10,5-31Vdc
BATTERY
ANT
SHEILD
ANT
SHEILD
PROG
relè 1
relè 3
relè 5
relè 7
relè 9 relè 10
relè 11 relè 12
V+ COM V -
FUSE **
COMMON FOR THE
USED DEVICES
EXTERNAL ANTENNA
GB
relè 2
relè 4
relè 6
*
relè 8
15
