COMPACT 3.0
EN
14

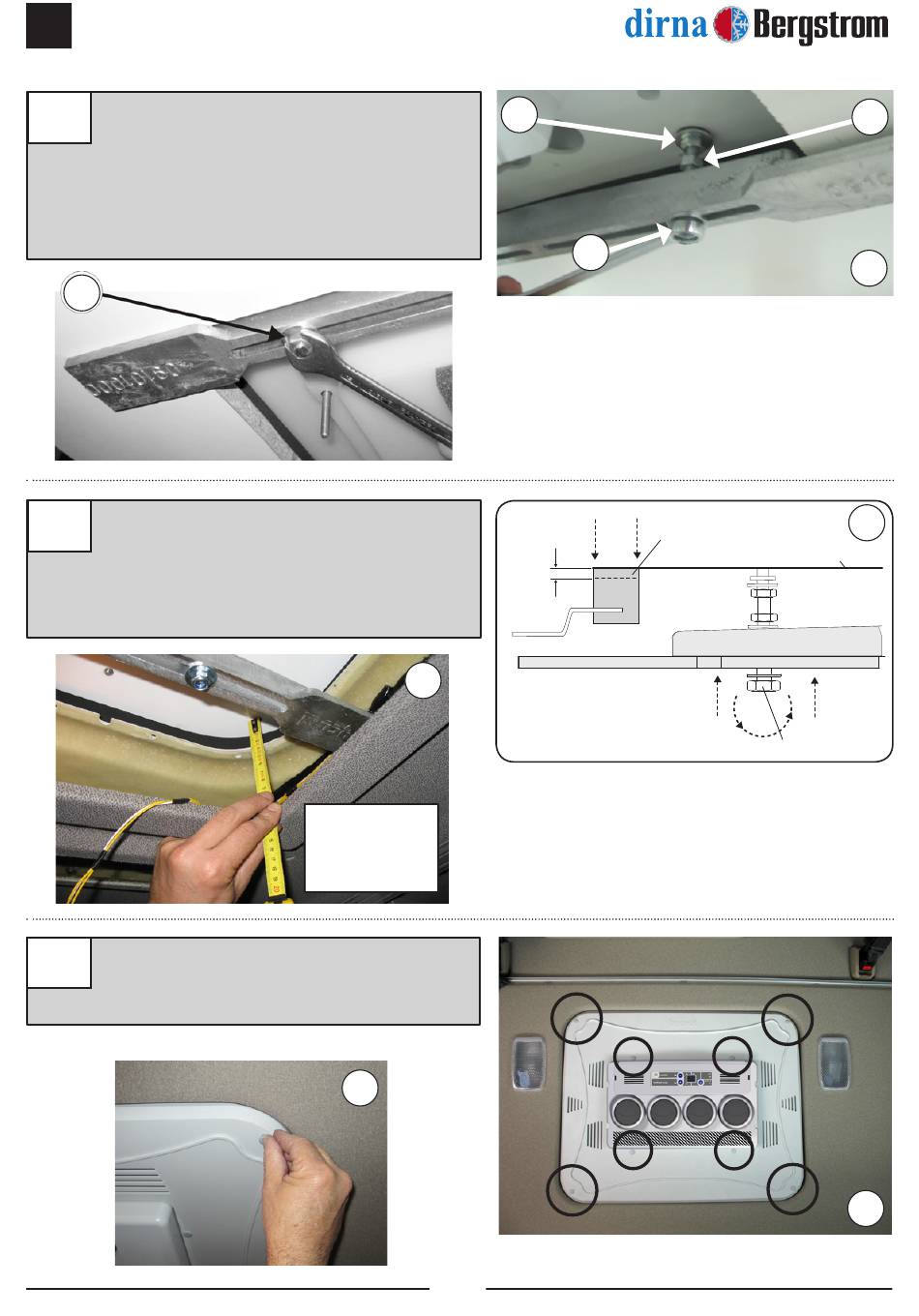

Once these operations have been carried out,
take down the console in order to secure the
supports by tightening the nuts (A) until the
original edgeband is tight against the base
of the unit, then tighten nuts (B) and (C) (see
diagram).
14
15 Important:
In order to prevent water from dripping, ensure
the original edgeband is tight against the base
of the unit, as shown in the diagram.
16
Place console with (4) originale screws, put
round 8 plastic trims on them.
15
Check
compression
thickness using a
tape measure in
the four corners.
16
18
B
A
Original edgeband
3÷6 mm.
Tighten nuts A until original
edgeband torque is between
3 and 6 mm.
®
C
14
15
Compact base
B
C
A
M8 selfblocking
16
