Mode Switch And Mode Keys; Keyboard - Sharp XE-A303 Bedienungsanleitung

3

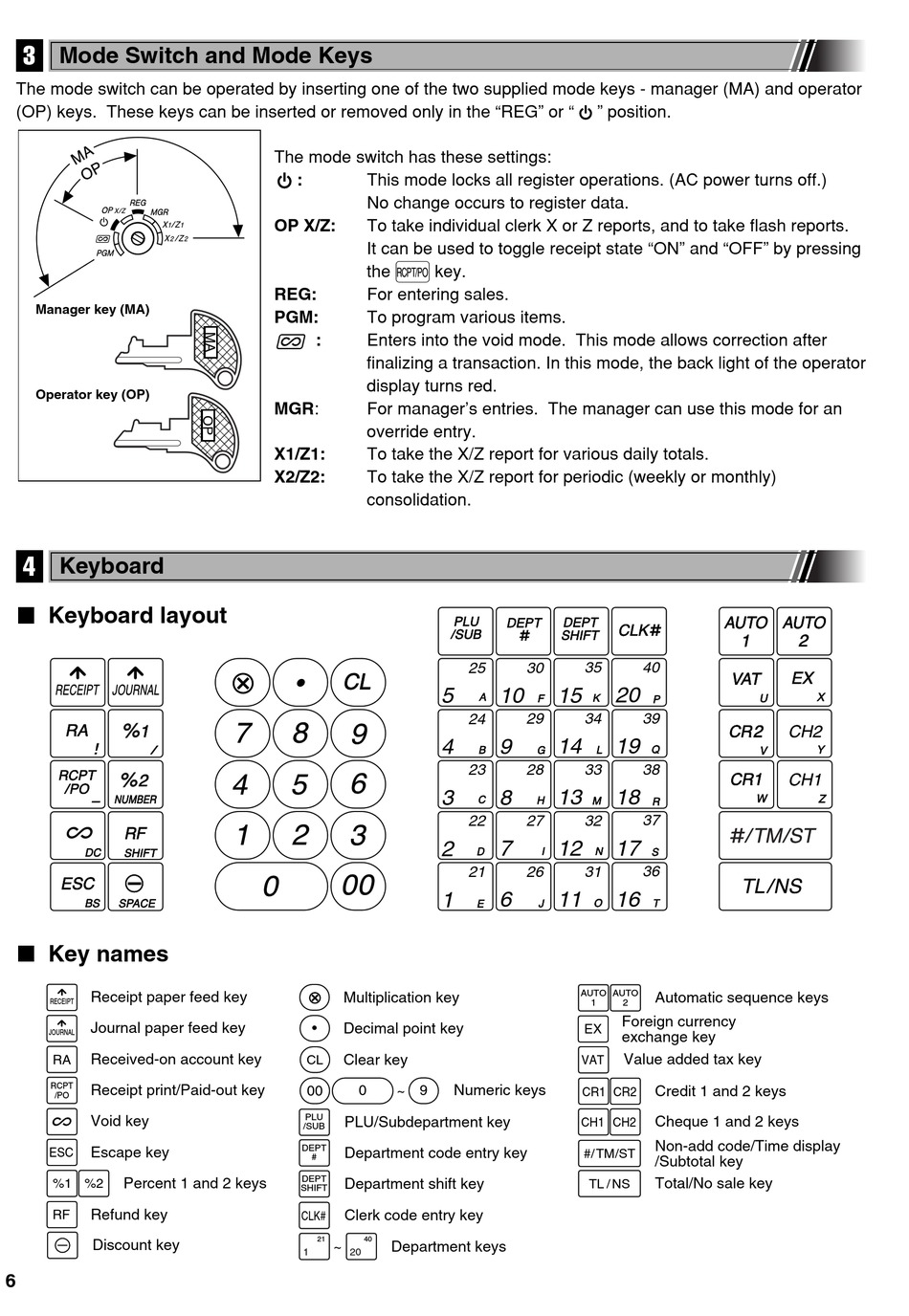

Mode Switch and Mode Keys

The mode switch can be operated by inserting one of the two supplied mode keys - manager (MA) and operator
(OP) keys. These keys can be inserted or removed only in the "REG" or "
Manager key (MA)
Operator key (OP)
4

Keyboard

Keyboard layout
Key names
Receipt paper feed key
RECEIPT
Journal paper feed key
JOURNAL
Received-on account key
RA
RCPT
Receipt print/Paid-out key
/PO
Void key
Escape key
ESC
Percent 1 and 2 keys
%1 %2
Refund key
RF
Discount key
6
The mode switch has these settings:
: This mode locks all register operations. (AC power turns off.)
No change occurs to register data.
OP X/Z: To take individual clerk X or Z reports, and to take flash reports.
It can be used to toggle receipt state "ON" and "OFF" by pressing
R
the key.
REG: For entering sales.
PGM: To program various items.
: Enters into the void mode. This mode allows correction after
finalizing a transaction. In this mode, the back light of the operator
display turns red.
MGR: For manager's entries. The manager can use this mode for an
override entry.
X1/Z1: To take the X/Z report for various daily totals.
X2/Z2: To take the X/Z report for periodic (weekly or monthly)
consolidation.
5
4
3
2
1
Multiplication key
• Decimal point key
Clear key
CL
00 0 ~ 9
PLU
PLU/Subdepartment key
/SUB
DEPT
Department code entry key
#
DEPT
Department shift key
SHIFT
Clerk code entry key
CLK#
21 40
~ Department keys
1 20
" position.
25 30 35
10 15 20
29 34
24
19
9 14
23 28 33
8 13 18
32
22 27
7 12 17
21 26 31
11 16
6
AUTO AUTO
1 2
Foreign currency
EX
exchange key
Value added tax key
VAT
Numeric keys
CR1 CR2
CH1 CH2
#/ TM/ST
TL / NS
40
39
38
37
36
Automatic sequence keys
Credit 1 and 2 keys
Cheque 1 and 2 keys
Non-add code/Time display
/Subtotal key
Total/No sale key
