Technical Data

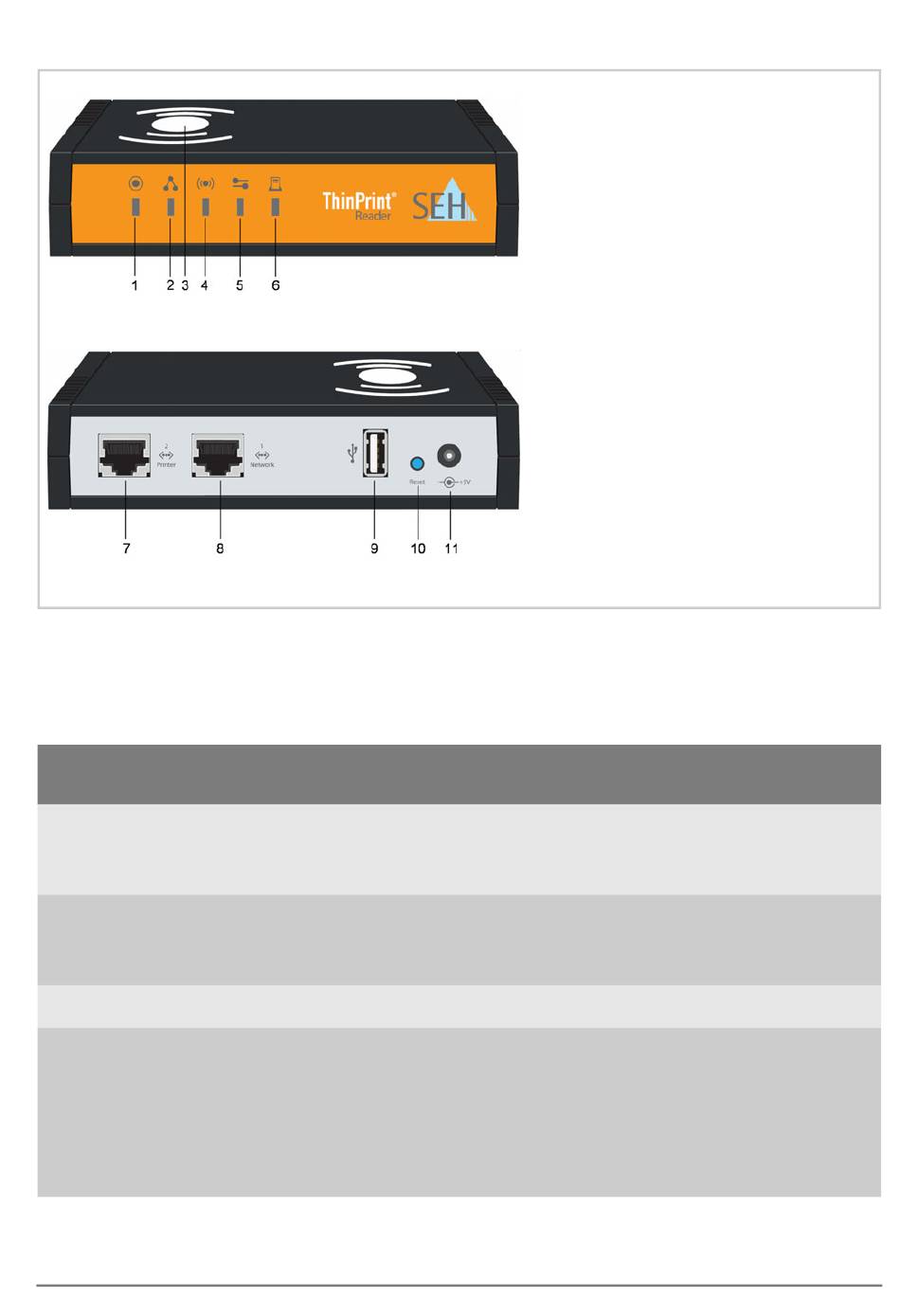

Front view
Rear view
* The shield connection of the RJ-45 network connector is connected to the shield of the device port.
This connection must be taken into account when arranging your network cabling. For more
information, please consult your retailer.
Properties
Printer port
Network connection
Device connection
Smart card reader
Supported transponders:
Quick Installation Guide
Values
logical: - IEEE 802.3
physical: - RJ-45 (STP Cat. 5)
logical: - IEEE 802.3
physical: - RJ-45 (STP Cat. 5)
- 1 × USB 2.0 Hi-SpeedS
- 1 × contactless multi-protocol RFID smart card reader
- 125 kHz/134.2 kHz:
AWID, Cardax, CASI-RUSCO, EM4100, EM4102,
EM4105, EM4200 FDX-B, G-Prox II, HITAG 1/2/S,
Honeywell NexWatch, IDTECK, Miro, Pyramid, Q5, TIRIS
(HDX), T55x7,TITAN, UNIQUE, ZOODIAC
1) Activity LED (green)
2) Network status LED (green/orange/
red)
3) RFID contact area
4) Smart card reader status LED
(green/red)
5) Server communication LED (green/
red)
6) Print status LED (green)
7) Printer port (RJ-45) for 1000BaseT,
100BaseTX and 10BaseT *
8) Network connector (RJ-45) for
1000BaseT, 100BaseTX and
10BaseT *
9) USB port for the saving of
parameters, etc.
10) Status/reset button
11) Connector for the included power
pack
[en] 5
