Tx-1, Tx-5 and Tx-10 transmitters
1
3
5
7
8
11
16
17
18
19
12
2
6
4
10
13 14 15 20
23
8

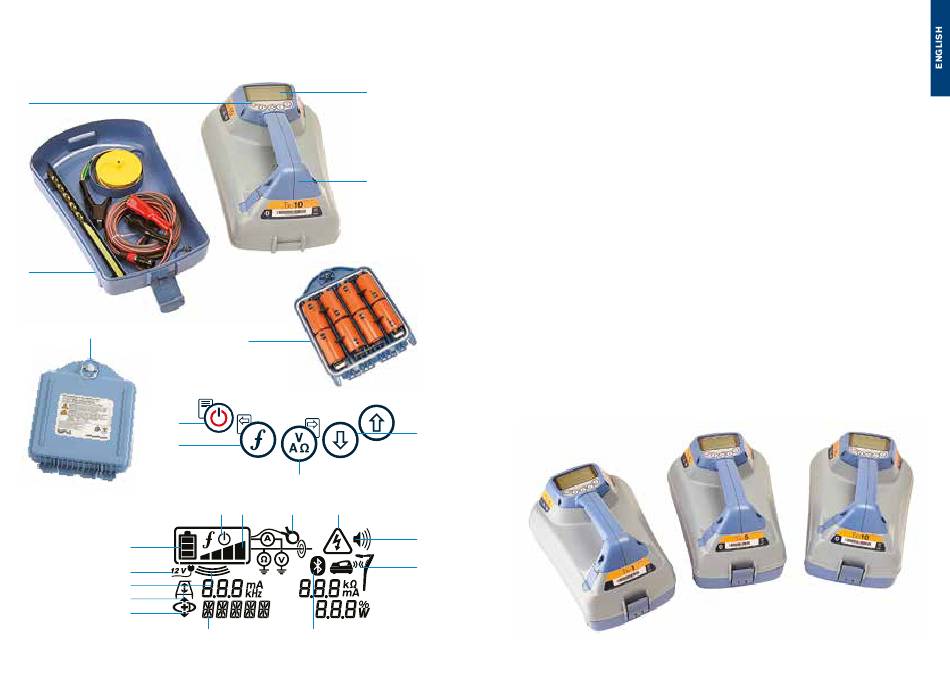

Transmitter features
1. Keypad.
2. LCD.
3. Removable accessory tray.
4. D-cell battery tray.
5. Optional Lithium-Ion battery pack.
6. Bluetooth module (iLOC units).
Transmitter keypad
7. Power key.
8. Frequency key.
9. Up and down arrows.
10. Measure key.
Transmitter screen icons
11. Battery level indicator.
12. Operation mode readout.
13. Standby icon.
14. Output level indicator.
9
21
22
15. Clamp icon: Indicates when a signal
clamp or other accessory is connected.
16. DC Power connected indicator.
17. Induction mode indicator.
18. A-Frame: Indicates when the
transmitter is in Fault-Find Mode.
19. CD Mode: Indicates that the transmitter
is in Current Direction Mode.
20. Voltage warning indicator: Indicates
that the transmitter is outputting
potentially hazardous voltage levels.
21. Volume level indicator.
iLOC enabled transmitters only:
22. Pairing icon: Appears when the
transmitter and locator are connected
via iLOC.
23. Bluetooth icon: Indicates status of
Bluetooth connection. Flashing icon
means pairing is in progress.
9
