Installation of room/control panel

This unit may only be installed in flush-mounting box 6136/UP.
1. Fit terminals to the lines (230V, TP if
required) (see chapter "Connection").
2. Connect terminals to the unit.
3. Insert unit into flush-mounting box and

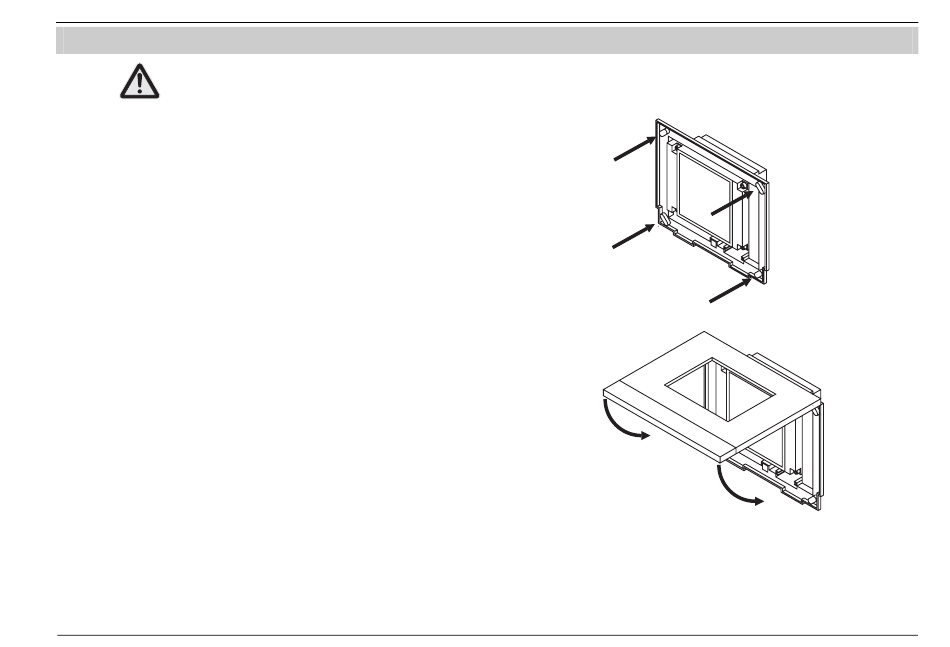

tighten screws (Fig. 65).
4. Attach the frame and secure it using the
enclosed screw (Fig. 66).
ENG
Fig. 65
Fig. 66
