SLIMFIT
Take care not to invert polarities when connecting the unit to the power supply. If this were to
happen, the plate would not come on and the unit would not work.
Centrifugal
blower
2,6 Amp.
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
2 Compressor

IMPORTANT NOTE!

Electronic
control
Battery /
Authorized connection
19
Air conditioning for vehicles

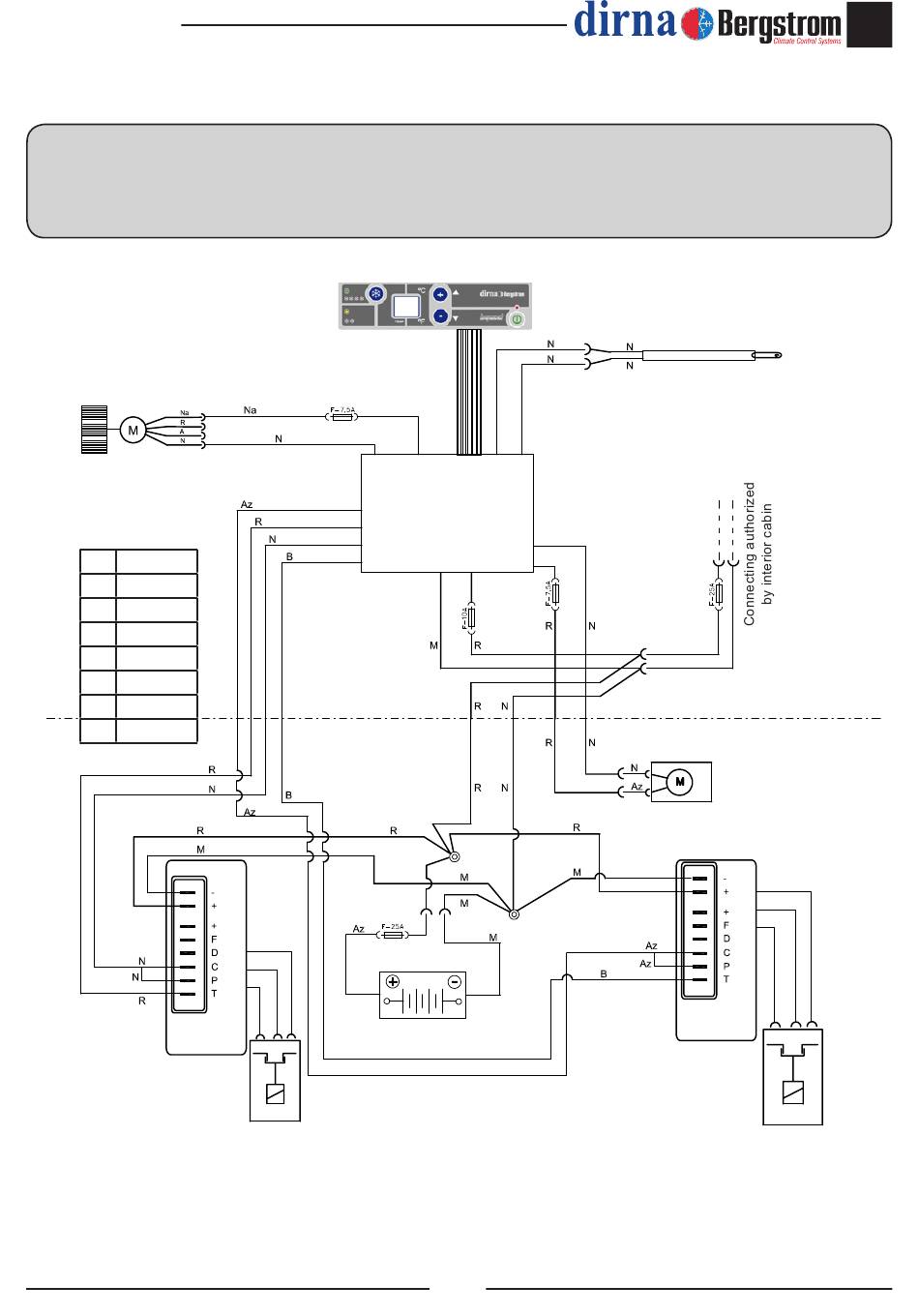

Electrical Diagram

Return
air probe
NTC 15KΩ a 25º
Comsuption 30 mAmp.
2,9 Amp.
PWM.
Condenser fan
Compressor
electronic
module
1 Compressor
EN
