dirna Bergstrom Bycool Slim Fit MAN Montageanweisungen Seite 13

SLIMFIT
3

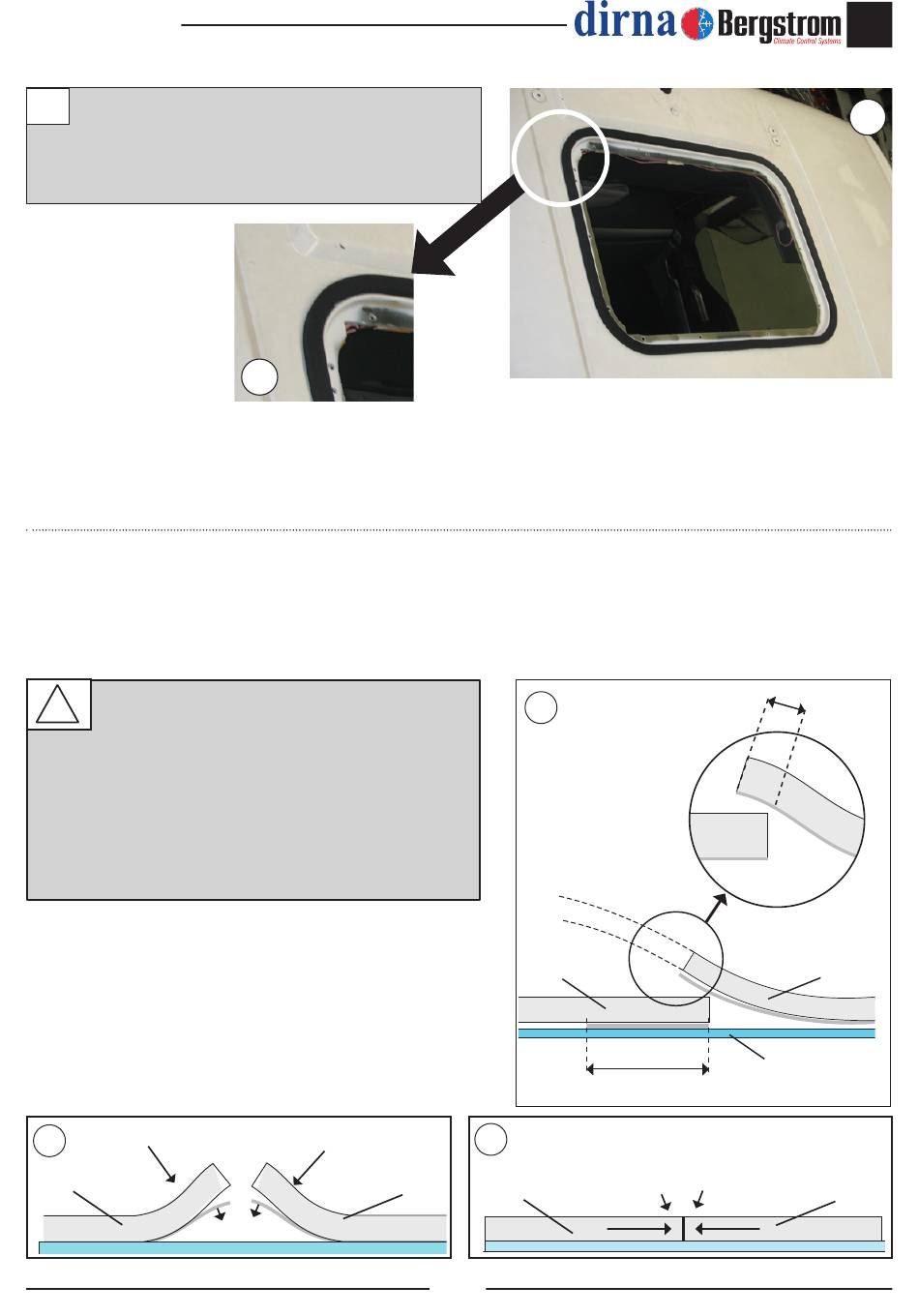

Attach the EPDM 40x40 seal around the hatch
gap ridge (see the details to cut the ends of the
seal joint).
HOW TO CUT THE EPDM SEAL TO PREVENT
!
WATER FROM DRIPPING IN THE CABIN
A- Attach the seal, keeping 100 mm of
protection paper on each side.
B- Remove the two pieces of paper.
C- Attach by pressing both ends.
B
Joint
3
Joint
Remove
Air conditioning for vehicles
A
Joint
100 mm approx. (protection paper)
C
Joint
13
EN
3
15 mm
Joint
Cabin ceiling
Joint
