Next, check your talkback. Have the switcher operator and camera operators speak to each
other using their 'press to talk' buttons and headsets.
If you are using an ATEM switcher, tally signals are sent over the SDI connection. To make sure
tally is working, check the camera number on ATEM Camera Converters and make sure they
match the camera numbers on the ATEM switcher. For more information, refer to the 'Using
ATEM Camera Converter/Setting the Camera number' section of this manual.
If you experience any trouble setting up your ATEM Converters, please visit the
Blackmagic Design support center at www.blackmagicdesign.com/support where you can often
find answers quickly by browsing the Blackmagic Forum. Here you can read information and
comments from other experienced users and Blackmagic Design staff. You can also find
contact information for your local Blackmagic Design support team.
1 M/E Production Studio 4K
PUSH
ATEM Talkback Converter 4K

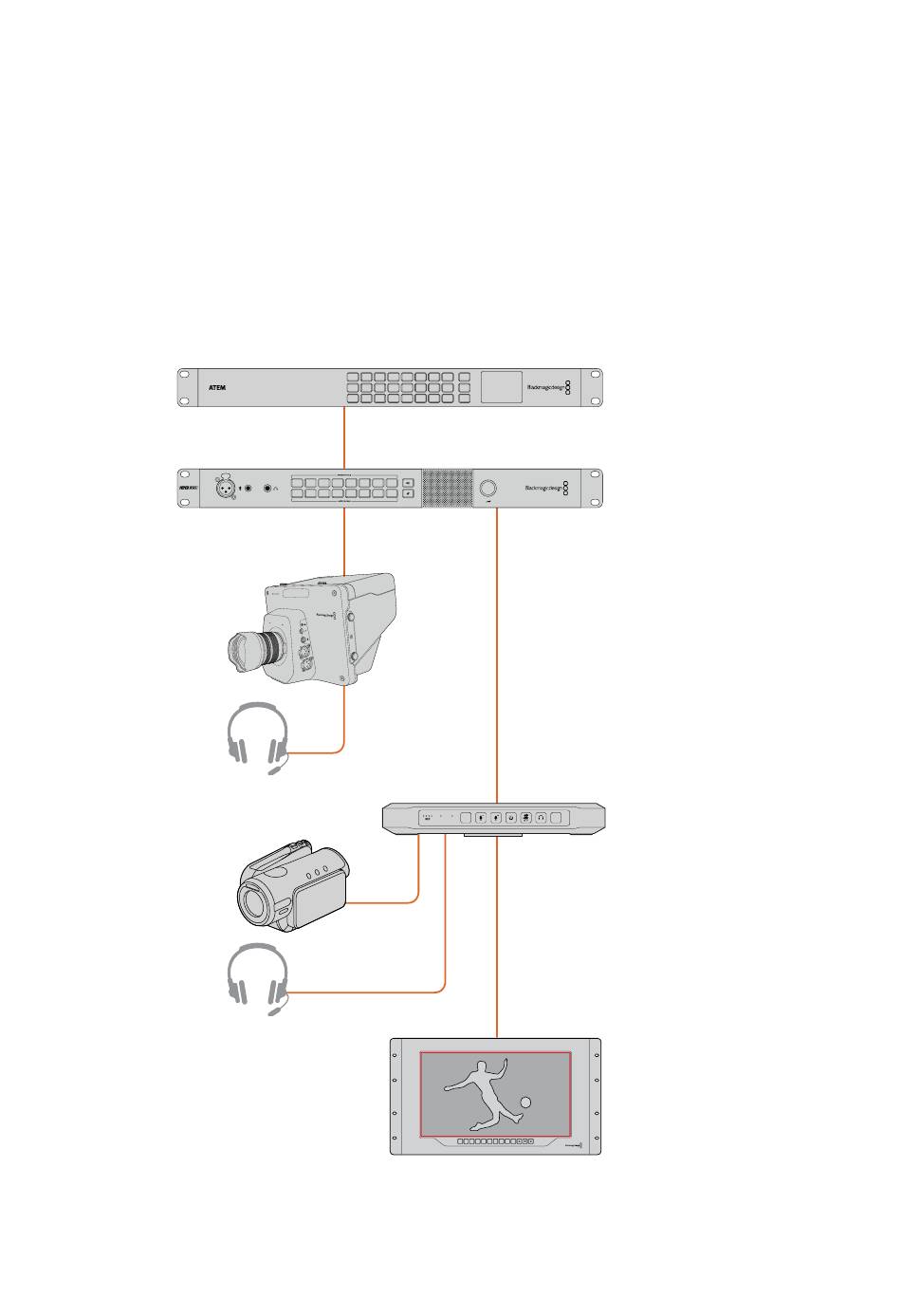

Refer to the 'Connection Diagrams' section for more information on how to connect your ATEM Converters.
