ANSMANN Racing ST4 Anleitung Seite 5

Diff. vorne/hinten / F/R Differential / différentiel avant arrière
3
125000983 10x15x4
Ball Bearing
............4
125000958 10x12x0.2
Washer
..................4
125000968 2.6x6x3
Stop push ball bearing
..................2
125000930 2.6x25
Diff Screw
125000930 4x1 O-Ring
..................2
125000940 13.1x19x0.8
Washer
.........4
125000982 5x8x2.5
Ball Bearing
..................4
T02048 2.37mm Ball
..............................24
4
125000946 2.0 E-ring
...........................2
125000949 2x9.8 Pin
...............4
125000960 M3x5 Screw
...............2
5.1x8x0.2 Washer
...............2
125000984 5x10x4
Ball Bearing
...............4
x2
125000941
125000982
125000940
125000949
125000982
125000940
125000941
x2
125000927
125000946
125000930
125000966
125000968
125000927
125000930
125000930
Diff connecting
Cup-Short
125000949
125000949
125000946
125000984
- 5 -
125000983
125000958
125000958
125000983

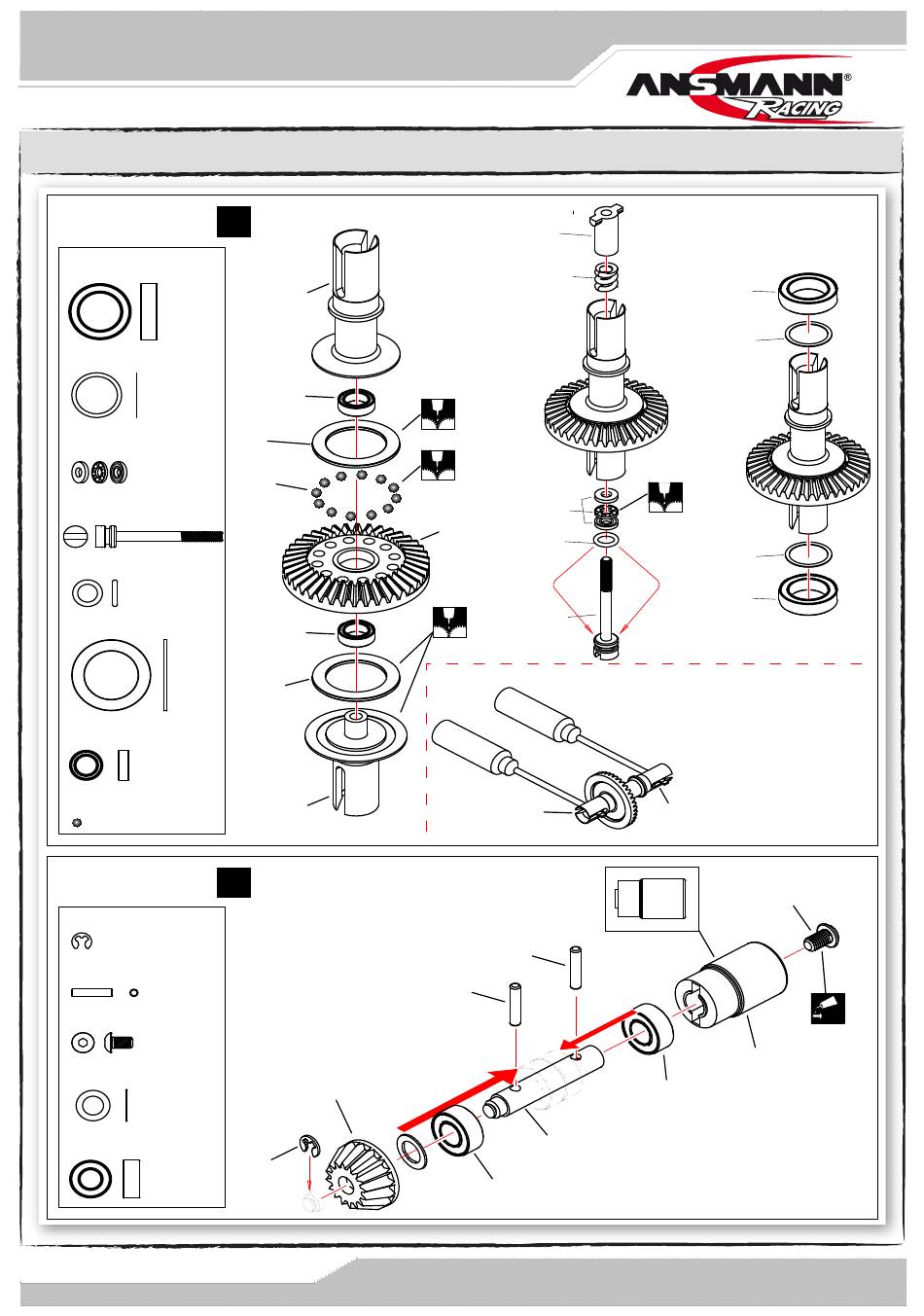

Secure parts <Diff connecting hub-Short> and
<Diff connecting hub-Long> in place with two flat
head screwdrivers and rotate the differential
case until it becomes tight.
Diff connecting Cup-Long
125000960
M3x5
125000929
125000984
Screw
Cement
