Eneo VMC-22LED Betriebsanleitung Seite 3

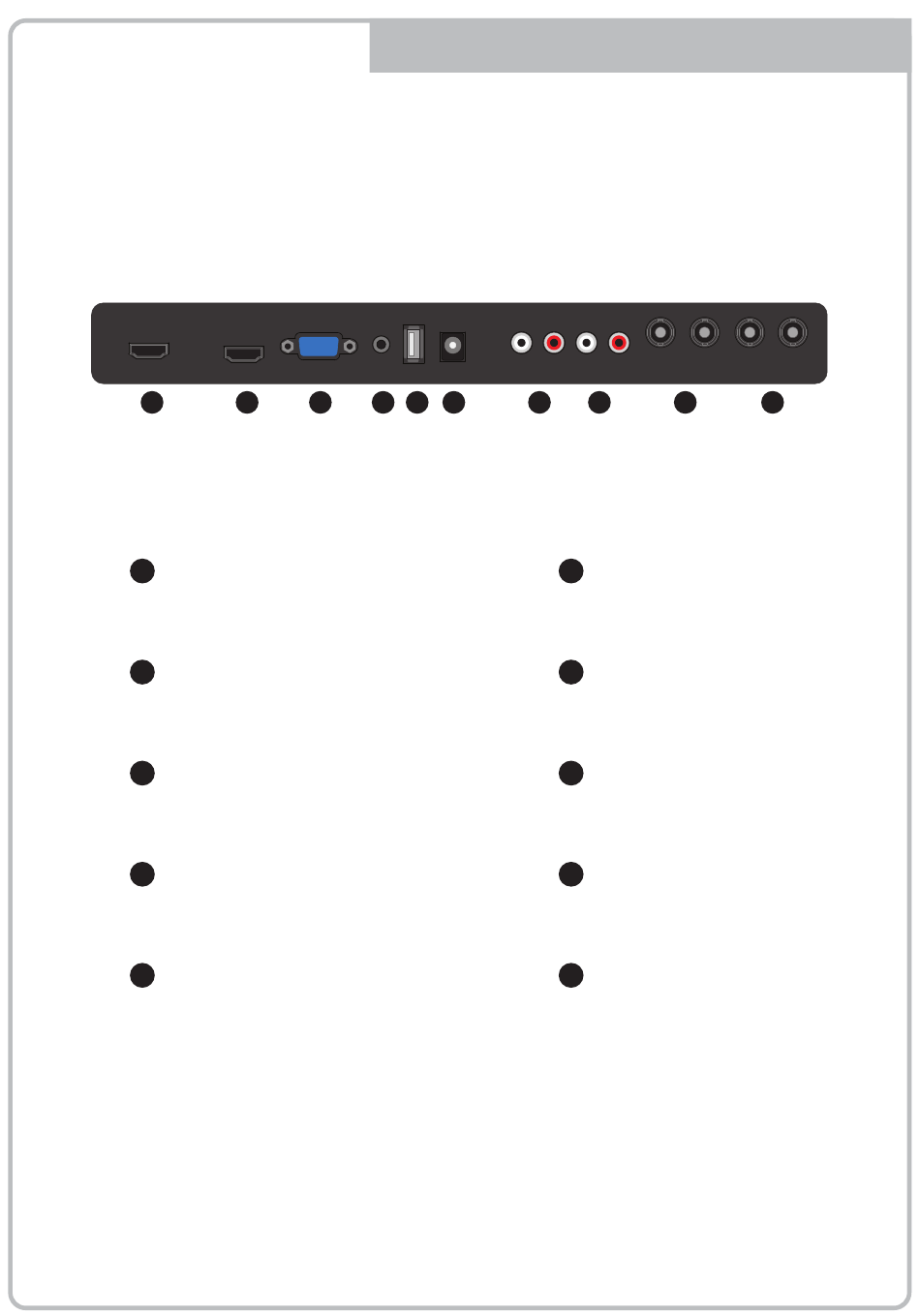

1 2
1
HDMI 1
HDMI signal 1 input
2
HDMI 2
HDMI signal 2 input
3
VGA
VGA (PC RGB) signal input
4
AUDIO (PC)
Stereo audio input for VGA
5
For FW Update
3 4 5 6 7 8 9
6
DC12V
DC adapter input
7
AUDIO (VIDEO-1)
Stereo audio input for VIEO-1
8
AUDIO (VIDEO-2)
Stereo audio input for VIDEO-2
9
VIDEO-1 IN/OUT
VIDEO-1 signal input / looping out
10
VIDEO-2 IN/OUT
VIDEO-2 signal input / looping out
CONNECTION
10
