G
®

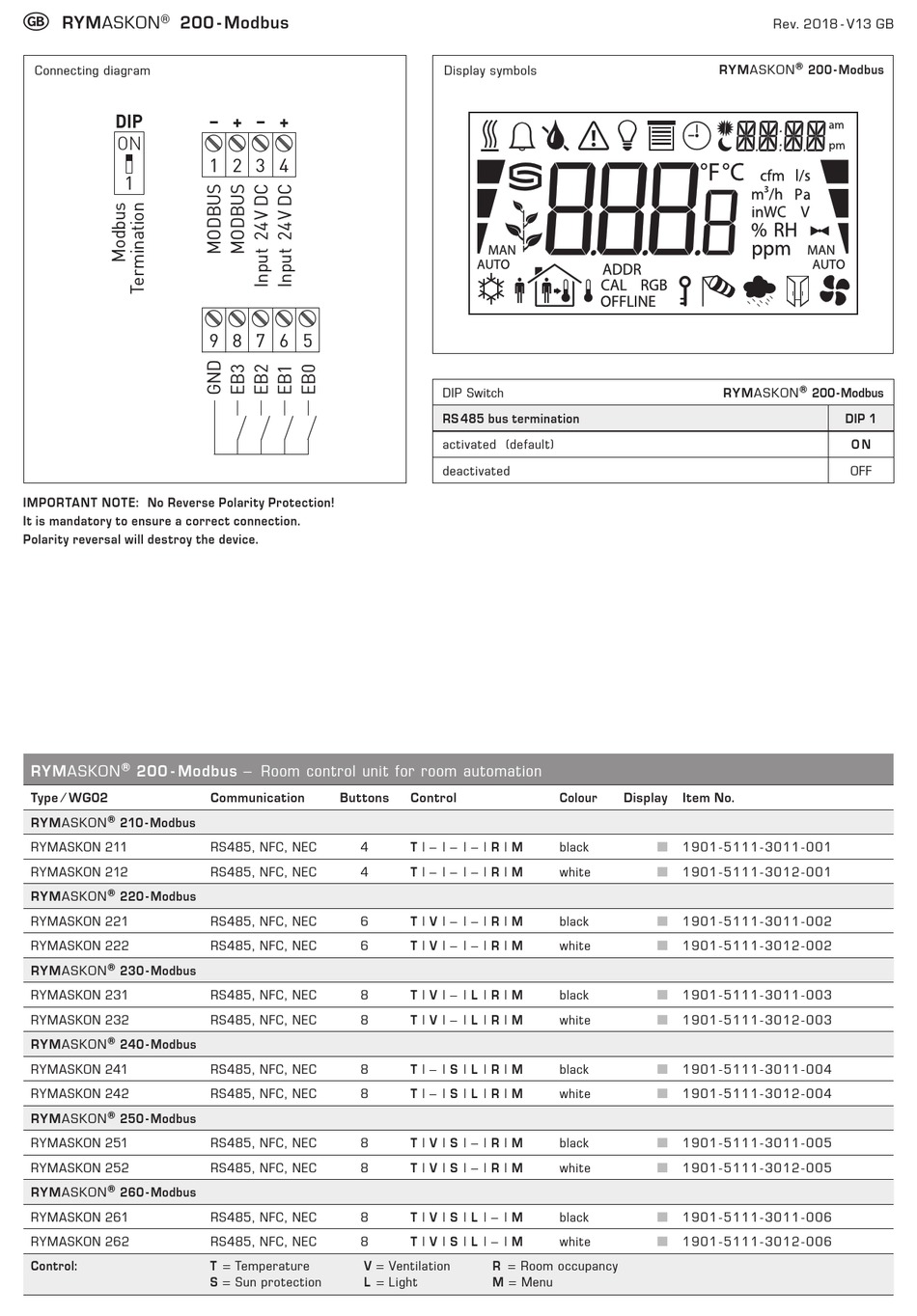

RYMASKON 200 - Modbus
Connecting diagram
DIP
ON
1
IMPORTANT NOTE: No Reverse Polarity Protection!
It is mandatory to ensure a correct connection.
Polarity reversal will destroy the device.
RYMASKON ® 200 - Modbus – Room control unit for room automation
Type ⁄ WG02
RYMASKON ® 210 - Modbus
RYMASKON 211
RYMASKON 212
®
RYMASKON 220 - Modbus
RYMASKON 221
RYMASKON 222
®
RYMASKON 230 - Modbus
RYMASKON 231
RYMASKON 232
®
RYMASKON 240 - Modbus
RYMASKON 241
RYMASKON 242
RYMASKON ® 250 - Modbus
RYMASKON 251
RYMASKON 252
RYMASKON ® 260 - Modbus
RYMASKON 261
RYMASKON 262
Control:
RYMASKON 200
– + – +
1 2 3 4
9 8 7 6 5
Communication Buttons
RS485, NFC, NEC 4
RS485, NFC, NEC 4
RS485, NFC, NEC 6
RS485, NFC, NEC 6
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
RS485, NFC, NEC 8
T = Temperature V = Ventilation
S = Sun protection L = Light
Display symbols
DIP Switch
RS 485 bus termination
activated (default)
deactivated
Control Colour
T | – | – | – | R | M black
T | – | – | – | R | M white
T | V | – | – | R | M black
T | V | – | – | R | M
white
T | V | – | L | R | M black
T | V | – | L | R | M white
T | – | S | L | R | M
black
T | – | S | L | R | M white
T | V | S | – | R | M black
T | V | S | – | R | M white
T | V | S | L | – | M black
T | V | S | L | – | M white
R = Room occupancy
M = Menu
Rev. 2018 - V13 GB
®
RYMASKON
RYMASKON
Display Item No.
■ 1 9 0 1 -5 1 1 1 - 3 0 1 1 - 0 0 1
■ 1 9 0 1 -5 1 1 1 - 3 0 1 2 - 0 0 1
■ 1 9 0 1 -5 1 1 1 -3 0 1 1 - 0 0 2
■ 1 9 0 1 -5 1 1 1 -3 0 1 2 - 0 0 2
■ 1 9 0 1 -5 1 1 1 -3 0 1 1 - 0 0 3
■ 1 9 0 1 -5 1 1 1 -3 0 1 2 - 0 0 3
■ 1 9 0 1 -5 1 1 1 - 3 0 1 1 - 0 0 4
■ 1 9 0 1 -5 1 1 1 - 3 0 1 2 - 0 0 4
■ 1 9 0 1 -5 1 1 1 -3 0 1 1 - 0 0 5
■ 1 9 0 1 -5 1 1 1 -3 0 1 2 - 0 0 5
■ 1 9 0 1 -5 1 1 1 -3 0 1 1 - 0 0 6
■ 1 9 0 1 -5 1 1 1 -3 0 1 2 - 0 0 6
200 - Modbus
®
200 - Modbus
DIP 1
O N
OFF
