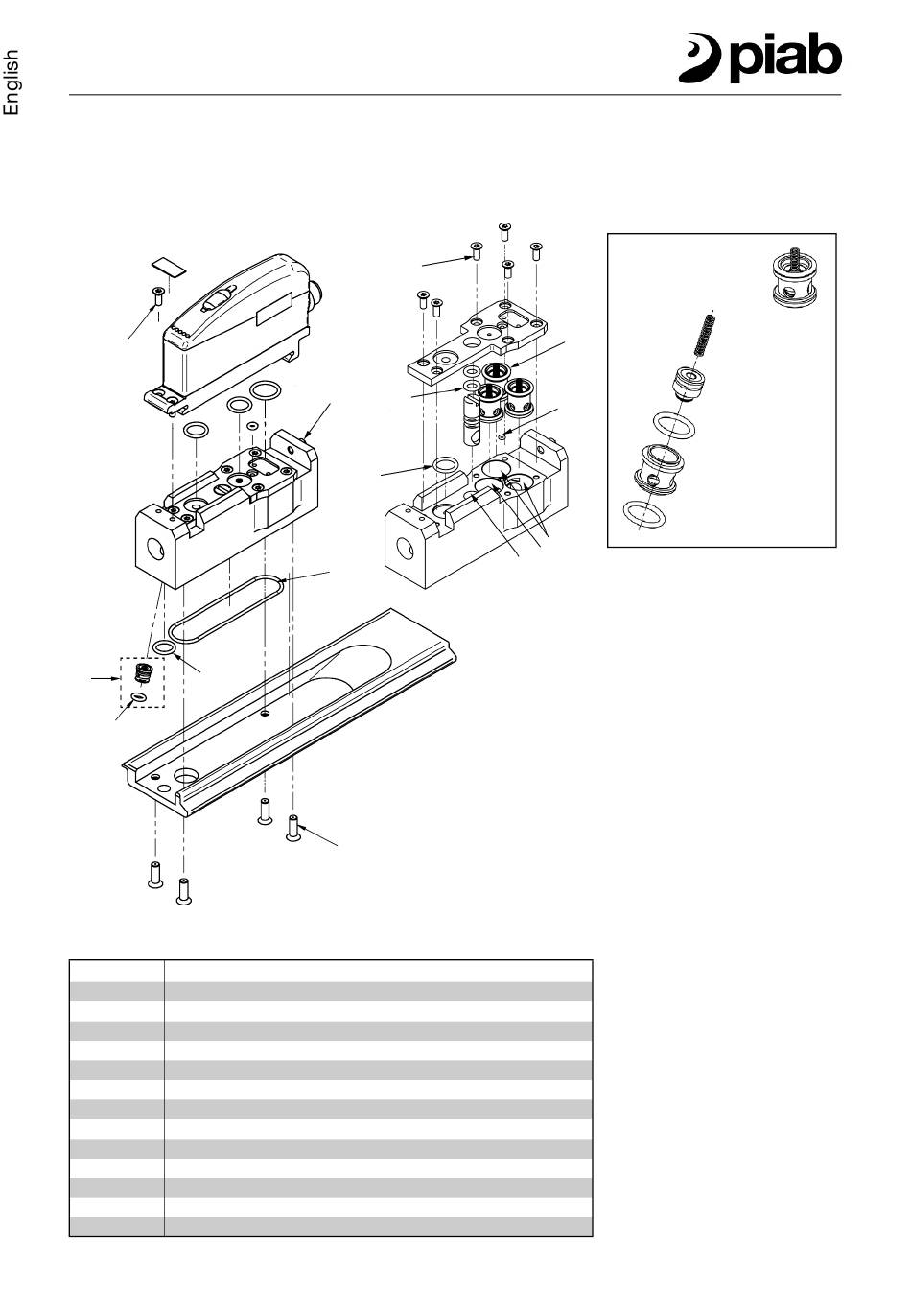

P6010 CU EXPLODED VIEW
Control and valve unit
1
B 8
7
Pos. Description
1 2x M3x8mm TX
2 M5x10
3 9.1x1.6mm
4 2x 4.76x1.78mm
5 1.4x1mm
6 6x M3x8mm TX
7 4.1x1.6mm
8 8.1x1.6mm
9 49x1.6mm
10 4x M4x12mm MFX
V Vacuum on/off valve
1
V Blow-off valve
2
V Blow-off adjustment valve
3
22
6
4
2
3
9
10
A
A
5
V
1
V
A. Repair kit,
V
2
3
Art. No. 0124255
Black poppet valve cpl (incl.
o-rings 11.1x1.6mm and
spring). Valid for CU units
produced from January 2010.
Recommended grease:
Klübersynth UH1 14-151 or
similiar synthetic lubricating
grease.
B.
Spare parts used in the
separated blow-off.
