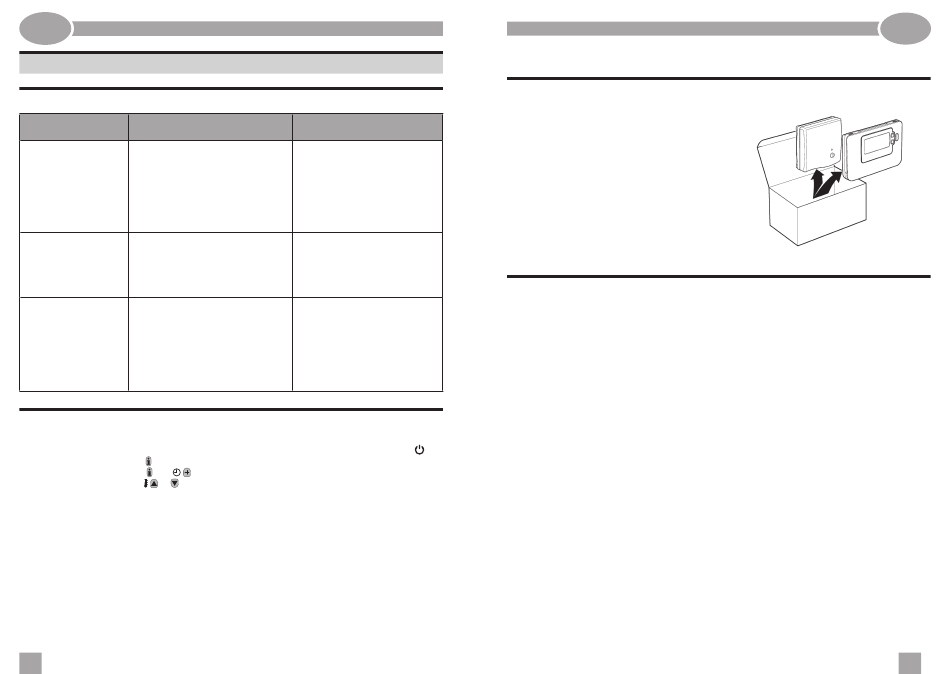

5. Troubleshooting

5.1 Troubleshooting Guide

Symptom (Fault

Possible Cause

Message)
The RF Receiver
The Room Unit and RF Receiver are
does not react to
not bound or the installer parameter
setpoint changes on
8:Su has not been set correctly.
the Room Unit.
After the binding
Incorrect or incomplete
procedure the red LED
binding procedure.
continues to flash on
Incorrect position of the Room
the RF Receiver.
Unit during binding.
The red LED is on
The RF Receiver receives no RF
the RF Receiver
messages from the Room Unit:
(Communication loss)
RF signal is blocked due to wrong
location of the Room Unit.
Room Unit batteries are exhausted.

5.2 Diagnostic Mode

The Room Unit has a user accessible mode that provides information useful to a remote service
person and a means of checking whether the heating system is working. To access this press the
button then press and hold the
button for 5 seconds. The Room Unit will enter the user settings
mode. Next press and hold the
and
buttons together. The following information can be viewed
on the display by pressing the
or
buttons : model ID, date code (WW/YY) & checksum.
Hereby, ACV declares that this Room Unit and RF Receiver are in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC, 2006/95/EC and 2004/108/EC.
12
INSTALLATION AND OPERATION MANUAL
Remedy
Make sure that the 8:Su parameter
value is set correctly. Reset
the RF Receiver by pressing
and holding the push button
for 15 seconds. Then follow the
binding / rebinding procedure as
described in section 4. Binding
/ Rebinding Procedure.
Repeat the binding procedure.
Repeat the binding procedure
keeping approx. 1m distance
between the RF Receiver
and the Room Unit.
Re-locate the Room Unit
following instructions in section
2. Installing the RC35RF.
Replace batteries in
the Room Unit.
EINBAUANLEITUNG
Einbauanleitung

Beschreibung

Der Raumthermostat steht in Verbindung mit dem
Empfänger mit einer Radio Frequenz (RF) von
868MHz. Die RF-Verbindung zwischen dem einzelnen
Raumthermostat und dem Empfänger in System-
Packs, die von geliefert werden, ist werksvoreingestellt
und SOLLTE daher am gleichen Ort installiert werden.
Dies macht den Installationsvorgang schnell und einfach,
doch wenn Produkte von einzelnen System-Packs getrennt
werden oder mit anderen vorkonfigurierten System-Packs
während der Installationen vermischt werden, lesen Sie
bitte Abschnitt 4. Zuordnungs/Neuzuordnungsverfahren,
um die gewünschten Geräte zu verbinden und deren
Kommunikation untereinander zu ermöglichen.
Inhaltsübersicht
1. Installationsinformationen ..................................................................................................................14
2. Installation des RC35RF ......................................................................................................................15
2.1 Installation des Empfänger ..............................................................................................................15
2.2 Installation des Raumthermostats ....................................................................................................16
2.2.1 Einschalten ...............................................................................................................................16
2.2.2 RF-Kommunikationscheck ........................................................................................................16
2.2.3 Lokalisierung des Raumthermostats ........................................................................................17
2.3 Kommunikationsunterbrechung .......................................................................................................17
3. Installateurmodus ................................................................................................................................18
3.1 Eingabe Installateurmodus ..............................................................................................................18
3.2 Einstellen des ausfallsicheren Modus..............................................................................................18
3.3 Verwendung des Raumthermostats für besondere Anwendungen .................................................19
3.3 Verwendung der Besonderheiten des Raumthermostats ................................................................19
3.4 Tabelle Installateurparameter ..........................................................................................................20
3.4.1 Kategorie 1 - Raumthermostat-Einstellungen...........................................................................20
3.4.2 Kategorie 2 - Systemeinstellungen ..........................................................................................21
4. Zuordnungs-/Neuzuordnungsverfahren.............................................................................................22
5. Störungsbehebung ..............................................................................................................................23
5.1 Anleitung zur Störungsbehebung ....................................................................................................23
5.2 Diagnose-Modus .............................................................................................................................23
DE
13
