2. Installing the RC35RF

Please follow the illustrations and information below in sequence to install the
RF Receiver and Room Unit correctly. To enable special features and see what
other system options are available refer to section 3. Installer Mode.

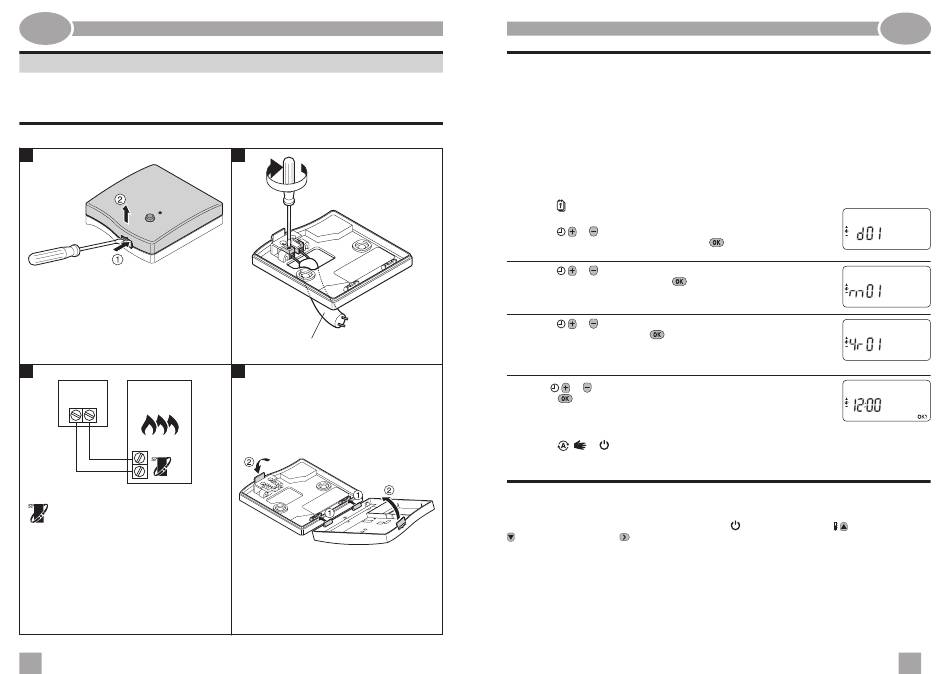

2.1 Installing the RF Receiver

1
NOTE: The RF Receiver contains no user
serviceable parts. It should be opened and
installed by qualified installer only.
WARNING: Electrostatic sensitive device!
Do not touch the circuit board.
3
RF Receiver
OpenTherm - communication
®
The RC35RF can be connected to other OpenTherm
appliances. For the correct wiring connections refer
to the installation manual of the OpenTherm device.
NOTE: All wiring must be in
accordance with IEE regulations
CAUTION: Observe ambient temperature and
current limits (see the RF Receiver wiring label)
4
INSTALLATION AND OPERATION MANUAL
2
max. 30m. 2 x 0.5mm 2 ; 2 x 0.8mm 2
4
INSTALLATION AND OPERATION MANUAL

2.2 Installing the Room Unit

2.2.1 Power Up

Installing the Batteries:
a. Lift up the front cover of the Room Unit to reveal the battery cover and product controls.
b. Remove the battery cover by pressing down and sliding out.
c. Insert the 2 x AA LR6 Alkaline Batteries supplied with the Room Unit, ensuring the correct orientation.
d. After a short pause the Room Unit will display information on the screen and is now ready for use.
e. Replace the battery cover by sliding it firmly back into the front of the Room Unit.
Setting the Date and Time:
a. Press the button to begin setting the date. When you set the date for
the first time after the batteries are inserted, the display will show:
Press the or buttons to set the current day of the month (e.g. d
01 = 1 day of the month) then press the green
st
b. Press the or buttons to set the current month of the year (e.g.
m 01 = January) then press the green
c. Press the or buttons to set the current year (e.g. yr
15 = 2015) then press the green button to confirm.
The date is now stored and the Day Indicator will be displayed under
the current day of the week (e.g. 1 = Monday, 2 = Tuesday, etc.)
d. Use the or buttons to set the correct time then press
the green button to confirm. Each press of the buttons will
change the time by one minute and holding them down will
change the time slowly at first and get progressively quicker.
Note: If this mode is entered accidentally then
press the , or buttons to exit.
2.2.2 RF Communication Check (Test Mode)
To check the RF communication, hold the Room Unit about 2-3 metres from the installed
RF Receiver. Set the Room Unit to off by pressing the
buttons together with the button for 3 seconds. The unit will display 'tESt' and it will
send test signals to the RF Receiver. If the test signals are received the LED on the RF
Receiver will flash between 1 and 5 times. The number of flashes indicates the strength
of the radio signal. The higher the number of flashes, the stronger the signal is.
NOTE: If the LED does not flash or if you are installing a replacement RF Receiver or Room
Unit, follow the procedures described in section 4. Binding / Rebinding Procedure.
button to confirm.
button to confirm.
button. then press the and
