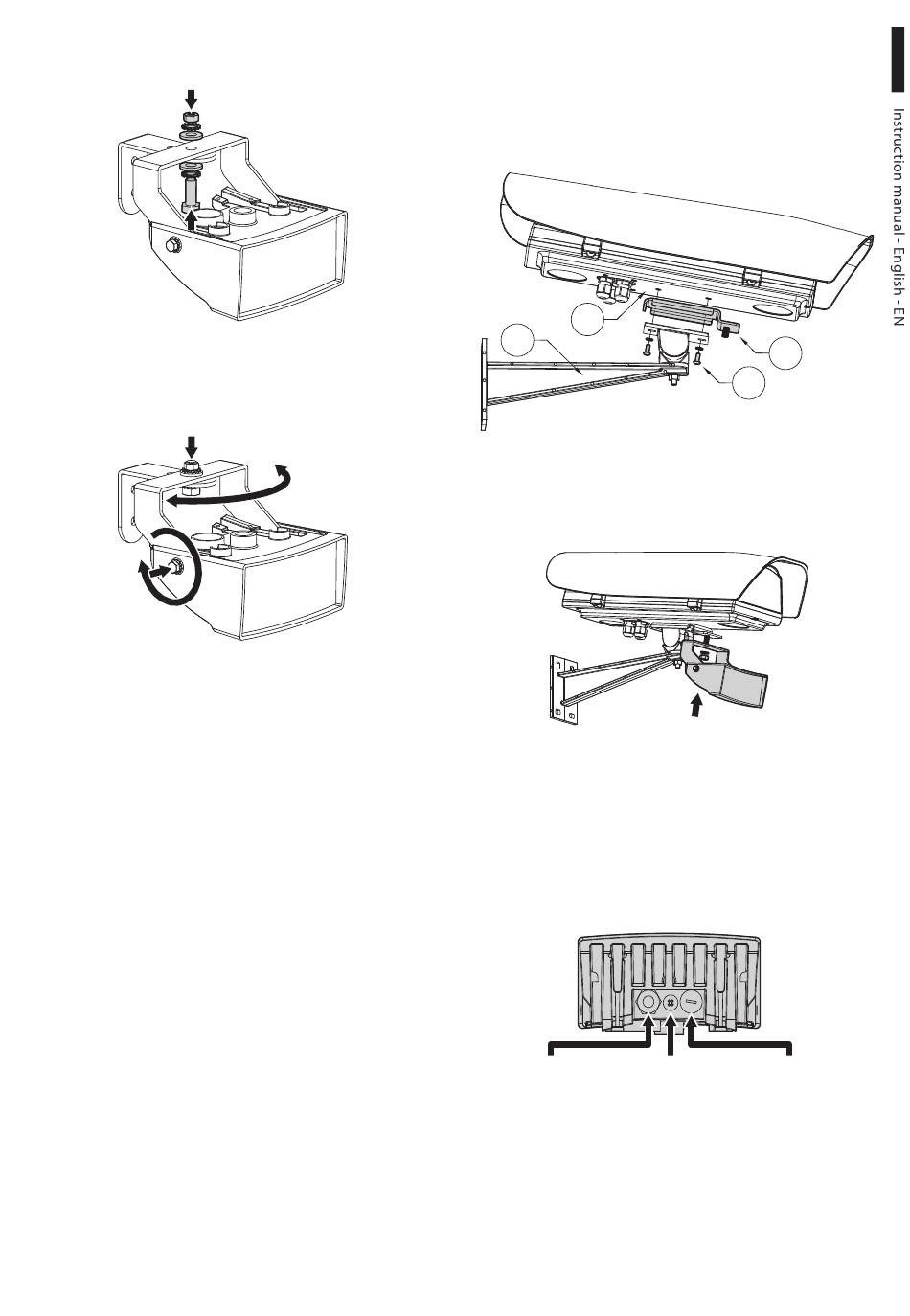

Fasten the illuminator, complete with its bracket,
using the screw, the nut and the washer supplied.
Fig. 6
Set the illuminator's vertical and horizontal
inclination by adjusting the two fastening screws.
Fig. 7
Check the resulting illumination range on the screen.
Tighten all the screws.
MNVCIRHS_1634_EN
6.2.2 Installation of housing-fitted
illuminator (OSUPPIR kit)
Fasten the plate (01) between the bottom of the
housing (02) and the bracket (03) using the screws
supplied (04).
02
03
Fig. 8
Fasten the illuminator (complete with its bracket)
using the nut and the washer.
Fig. 9
Set the vertical and horizontal inclination (Fig. 7,
page 7).
Check the resulting illumination range on the screen.
Tighten all the screws.

6.2.3 Connections

Power supply Photocell
and control
Fig. 10
01
04
Switch-on
threshold
regulator
7
