6 Assembling and installing

During normal operation the surface of the
illuminator can reach high temperatures.
Do not allow direct contact and position
the appliance where it is inaccessible to
unauthorised persons. Before touching
switch off the illuminator and allow to cool
for a minimum period of 10 minutes.
Do not stare directly into the lamp at a
distance of less than 1.7m (5.6ft).
The assembly and installation must be
performed only by skilled personnel.

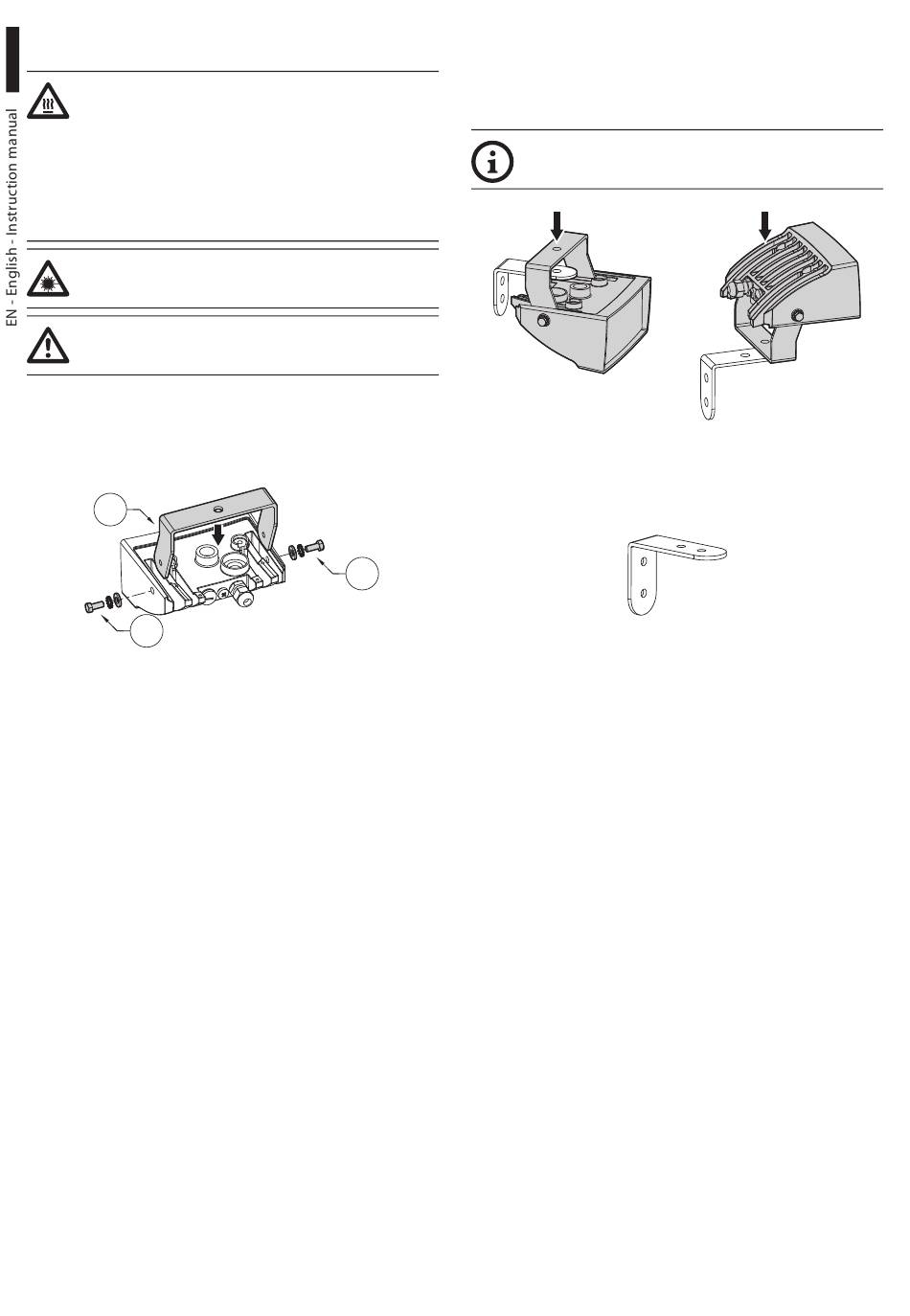

6.1 Assembly

Fasten the top bracket (01) to the illuminator using
the screws and washers (02) supplied.
01
02
Fig. 3
6

6.2 Installation

6.2.1 Installation of wall-mounted
illuminator
The illuminator's position can be decided at
the time of installation.
Fig. 4
Fasten the bracket as shown in the figure. Drive the
wall screws in tight.
02
Fig. 5
