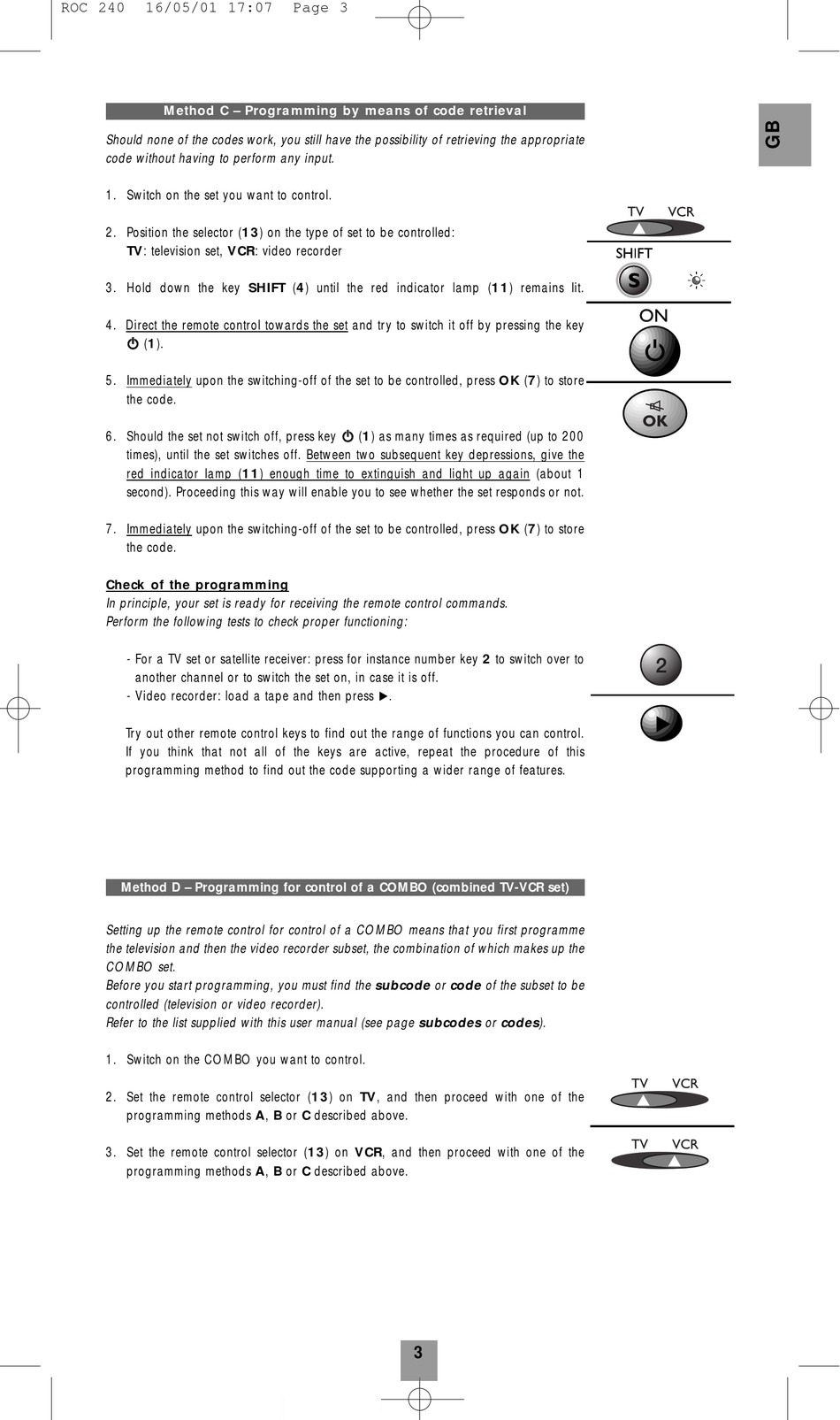

Method C – Programming by means of code retrieval
Should none of the codes work, you still have the possibility of retrieving the appropriate
code without having to perform any input.
1. Switch on the set you want to control.
2. Position the selector (13) on the type of set to be controlled:
TV: television set, VCR: video recorder
3. Hold down the key SHIFT (4) until the red indicator lamp (11) remains lit.
4. Direct the remote control towards the set and try to switch it off by pressing the key
B B (1).
5. Immediately upon the switching-off of the set to be controlled, press OK (7) to store
the code.
6. Should the set not switch off, press key B
times), until the set switches off. Between two subsequent key depressions, give the
red indicator lamp (11) enough time to extinguish and light up again (about 1
second). Proceeding this way will enable you to see whether the set responds or not.
7. Immediately upon the switching-off of the set to be controlled, press OK (7) to store
the code.
Check of the programming
In principle, your set is ready for receiving the remote control commands.
Perform the following tests to check proper functioning:
- For a TV set or satellite receiver: press for instance number key 2 to switch over to
another channel or to switch the set on, in case it is off.
- Video recorder: load a tape and then press B .
Try out other remote control keys to find out the range of functions you can control.
If you think that not all of the keys are active, repeat the procedure of this
programming method to find out the code supporting a wider range of features.
Method D – Programming for control of a COMBO (combined TV-VCR set)
Setting up the remote control for control of a COMBO means that you first programme
the television and then the video recorder subset, the combination of which makes up the
COMBO set.
Before you start programming, you must find the subcode or code of the subset to be
controlled (television or video recorder).
Refer to the list supplied with this user manual (see page subcodes or codes).
1. Switch on the COMBO you want to control.
2. Set the remote control selector (13) on TV, and then proceed with one of the
programming methods A, B or C described above.
3. Set the remote control selector (13) on VCR, and then proceed with one of the
programming methods A, B or C described above.
Page 3
B (1) as many times as required (up to 200
3
