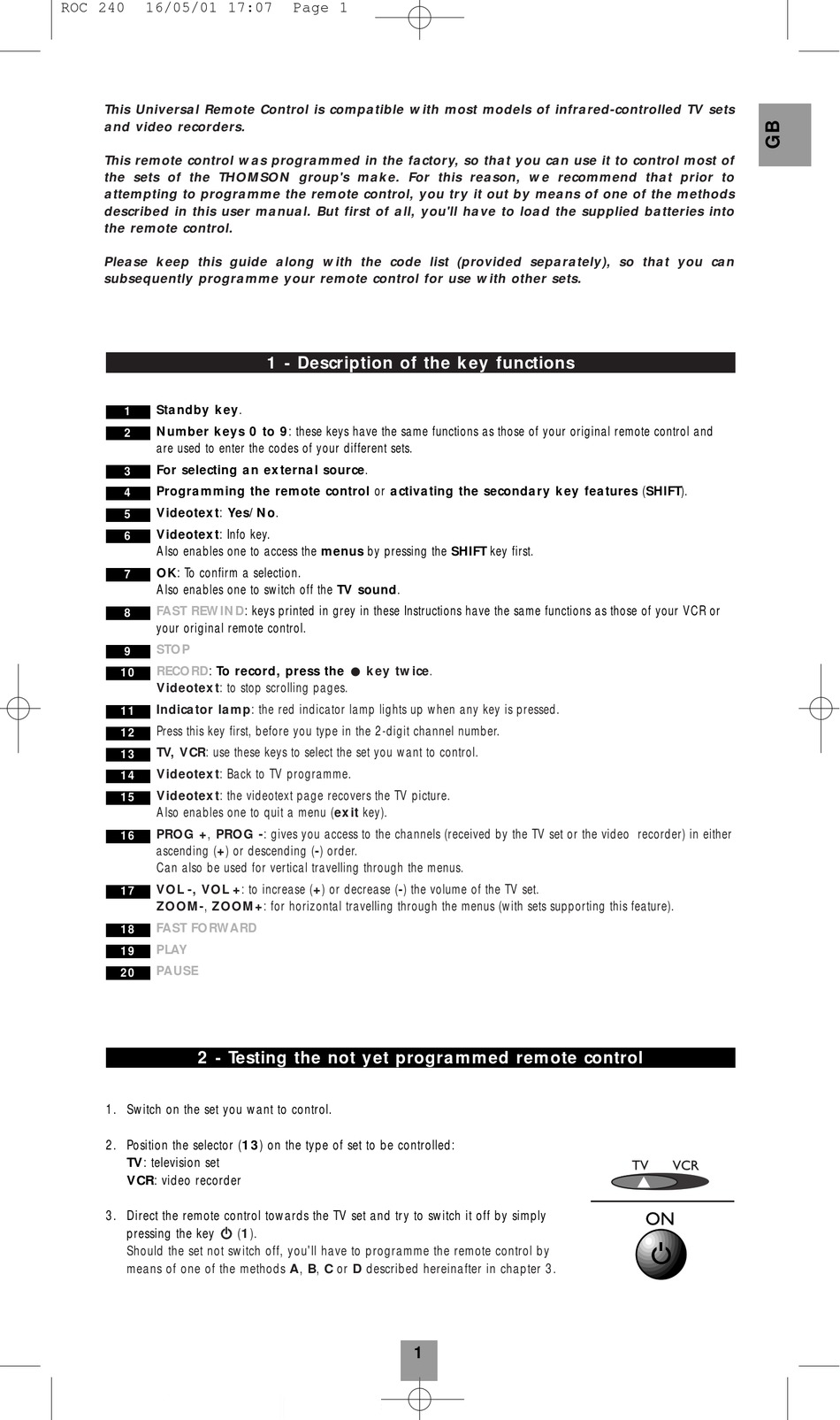

THOMSON ROC240 Anleitung Seite 2

ROC 240 16/05/01 17:07
This Universal Remote Control is compatible with most models of infrared-controlled TV sets
and video recorders.
This remote control was programmed in the factory, so that you can use it to control most of
the sets of the THOMSON group's make. For this reason, we recommend that prior to
attempting to programme the remote control, you try it out by means of one of the methods
described in this user manual. But first of all, you'll have to load the supplied batteries into
the remote control.
Please keep this guide along with the code list (provided separately), so that you can
subsequently programme your remote control for use with other sets.
Standby key.
1
Number keys 0 to 9: these keys have the same functions as those of your original remote control and
2
are used to enter the codes of your different sets.
For selecting an external source.
3
Programming the remote control or activating the secondary key features (SHIFT).
4
Videotext: Yes/No.
5
Videotext: Info key.
6
Also enables one to access the menus by pressing the SHIFT key first.
OK: To confirm a selection.
7
Also enables one to switch off the TV sound.
FAST REWIND: keys printed in grey in these Instructions have the same functions as those of your VCR or
8
your original remote control.
STOP
9
RECORD: To record, press the
10
Videotext: to stop scrolling pages.
Indicator lamp: the red indicator lamp lights up when any key is pressed.
11
Press this key first, before you type in the 2-digit channel number.
12
TV, VCR: use these keys to select the set you want to control.
13
Videotext: Back to TV programme.
14
Videotext: the videotext page recovers the TV picture.
15
Also enables one to quit a menu (exit key).
PROG +, PROG -: gives you access to the channels (received by the TV set or the video recorder) in either
16
ascending (+) or descending (-) order.
Can also be used for vertical travelling through the menus.
VOL -, VOL +: to increase (+) or decrease (-) the volume of the TV set.
17
ZOOM-, ZOOM+: for horizontal travelling through the menus (with sets supporting this feature).
FAST FORWARD
18
PLAY
19
PAUSE
20
2 - Testing the not yet programmed remote control
1. Switch on the set you want to control.
2. Position the selector (13) on the type of set to be controlled:
TV: television set
VCR: video recorder
3. Direct the remote control towards the TV set and try to switch it off by simply
pressing the key B (1). B
Should the set not switch off, you'll have to programme the remote control by
means of one of the methods A, B, C or D described hereinafter in chapter 3.
Page 1
1 - Description of the key functions
M key twice.
1
