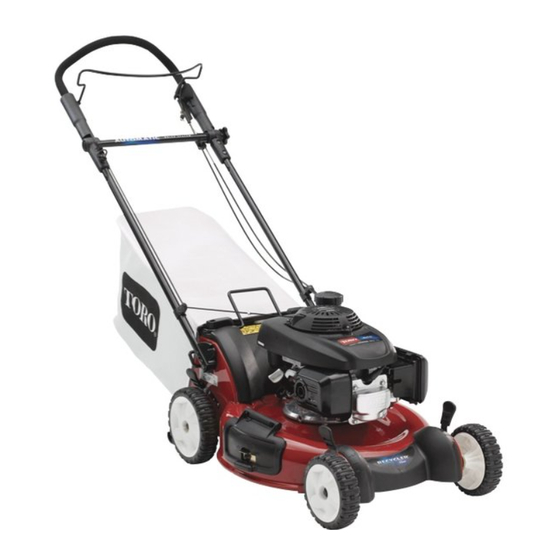

53cm Recycler
Model No. 20999-Serial No. 313000001 and Up
Introduction
This rotary-blade, walk-behind lawn mower is intended
to be used by residential homeowners. It is designed
primarily for cutting grass on well-maintained lawns
on residential properties. It is not designed for cutting
brush or for agricultural uses.
Read this information carefully to learn how to operate and
maintain your machine properly and to avoid injury and
equipment damage. You are responsible for operating the
machine properly and safely.
You may contact Toro directly at www.Toro.com for product
and accessory information, help finding a dealer, or to register
your product.
Whenever you need service, genuine Toro parts, or additional
information, contact an Authorized Service Dealer or Toro
Customer Service and have the model and serial numbers of
your machine ready. Figure 1 identifies the location of the
model and serial numbers on the product.
1. Model and serial number location
Write the product model and serial numbers in the following
space:
Model No.
Serial No.
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol (Figure 2),
which signals a hazard that may cause serious injury or death
if you do not follow the recommended precautions.
© 2012-The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Figure 1
Register at www.Toro.com.
® Lawn Mower
1. Safety alert symbol
This manual uses 2 words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
This product complies with all relevant European directives.
For details, see the separate product-specific Declaration of
Conformity (DOC) sheet.
For models with stated engine horsepower, the gross
horsepower of the engine was laboratory rated by the engine
manufacturer in accordance with SAE J1940. As configured
to meet safety, emission, and operating requirements, the
actual engine horsepower on this class of lawn mower will
be significantly lower.
Do not tamper with the engine controls or alter the governor
speed; doing so may create an unsafe condition resulting in
personal injury.
Contents
Introduction .................................................................. 1
General Lawn Mower Safety ..................................... 2
Sound Pressure ...................................................... 3
Sound Power .......................................................... 3
Hand/Arm Vibration .............................................. 3
Safety and Instructional Decals ................................. 4
Setup ............................................................................ 5
1 Unfolding the Handle............................................ 5
2 Installing the Recoil-starter Rope in the Rope
Guide................................................................. 5
3 Filling the Engine with Oil...................................... 6
4 Install the Mulch Plug or the Grass Bag .................... 6
Product Overview .......................................................... 8
Specifications ......................................................... 8
Operation ..................................................................... 8
Filling the Fuel Tank ................................................ 8
Checking the Engine Oil Level .................................. 9
Adjusting the Cutting Height .................................... 9
Adjusting the Upper Handle Height ........................... 9
Starting the Engine .................................................10
Using the Self-propel Drive......................................11
Stopping the Engine ...............................................11
Form No. 3376-800-ASM Rev A
Operator's Manual
Figure 2
Original Instructions (EN) All Rights Reserved *3376-800-ASM* A
