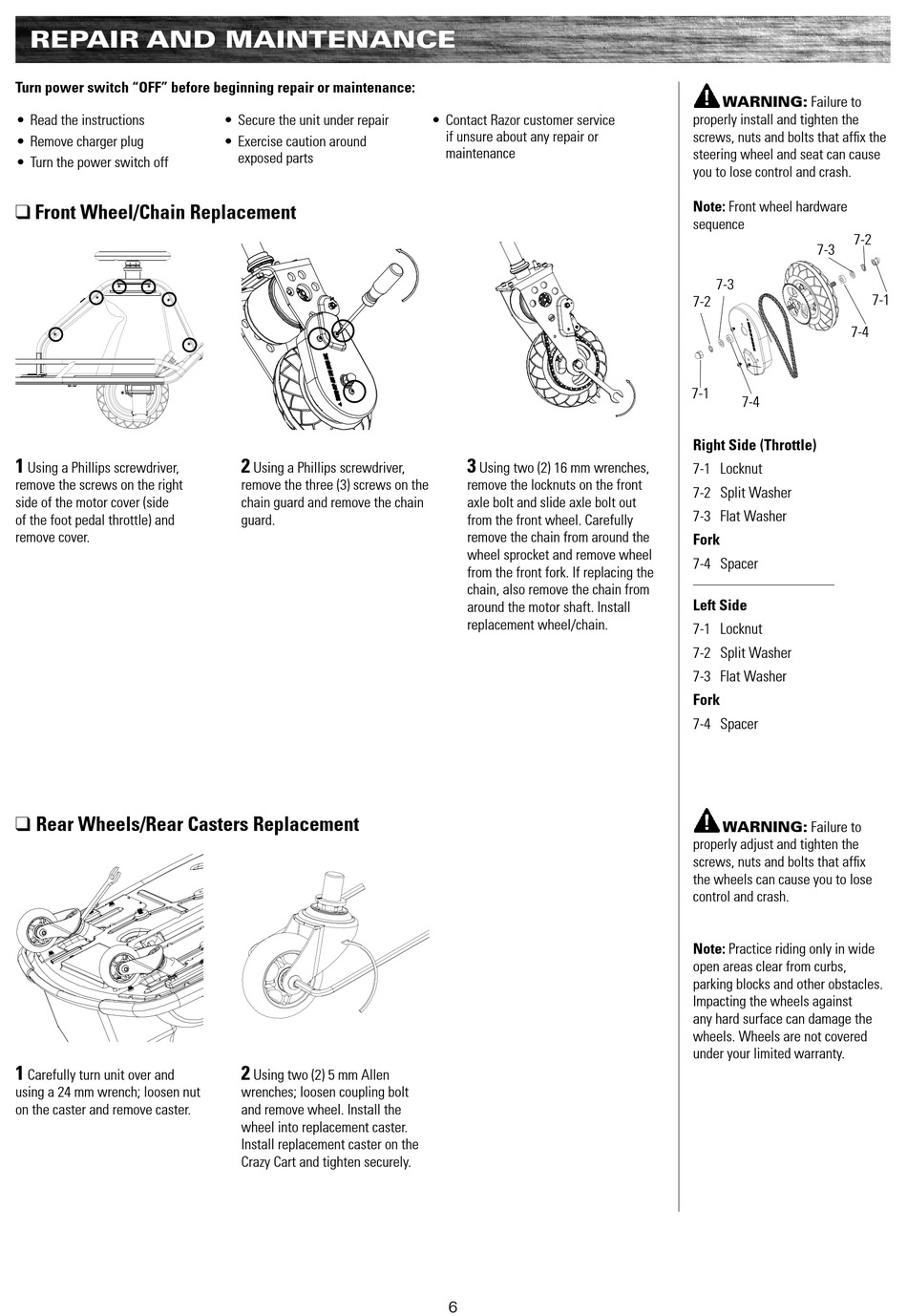

REPAIR AND MAINTENANCE

Turn power switch "OFF" before beginning repair or maintenance:
• Read the instructions
• Remove charger plug
• Turn the power switch off
q Front Wheel/Chain Replacement
1
Using a Phillips screwdriver,
remove the screws on the right
side of the motor cover (side
of the foot pedal throttle) and
remove cover.
q Rear Wheels/Rear Casters Replacement
1
Carefully turn unit over and
using a 24 mm wrench; loosen nut
on the caster and remove caster.
• Secure the unit under repair
• Exercise caution around
exposed parts
2
Using a Phillips screwdriver,
remove the three (3) screws on the
chain guard and remove the chain
guard.
2
Using two (2) 5 mm Allen
wrenches; loosen coupling bolt
and remove wheel. Install the
wheel into replacement caster.
Install replacement caster on the
Crazy Cart and tighten securely.
• Contact Razor customer service
if unsure about any repair or
maintenance
3
Using two (2) 16 mm wrenches,
remove the locknuts on the front
axle bolt and slide axle bolt out
from the front wheel. Carefully
remove the chain from around the
wheel sprocket and remove wheel
from the front fork. If replacing the
chain, also remove the chain from
around the motor shaft. Install
replacement wheel/chain.
6
WARNING: Failure to
properly install and tighten the
screws, nuts and bolts that affix the
steering wheel and seat can cause
you to lose control and crash.
Note: Front wheel hardware
sequence
7-2
7-3
7-3
7-2
7-4
7-1
7-4
Right Side (Throttle)
7-1 Locknut
7-2 Split Washer
7-3 Flat Washer
Fork
7-4 Spacer
Left Side
7-1 Locknut
7-2 Split Washer
7-3 Flat Washer
Fork
7-4 Spacer
WARNING: Failure to
properly adjust and tighten the
screws, nuts and bolts that affix
the wheels can cause you to lose
control and crash.
Note: Practice riding only in wide
open areas clear from curbs,
parking blocks and other obstacles.
Impacting the wheels against
any hard surface can damage the
wheels. Wheels are not covered
under your limited warranty.
7-1
