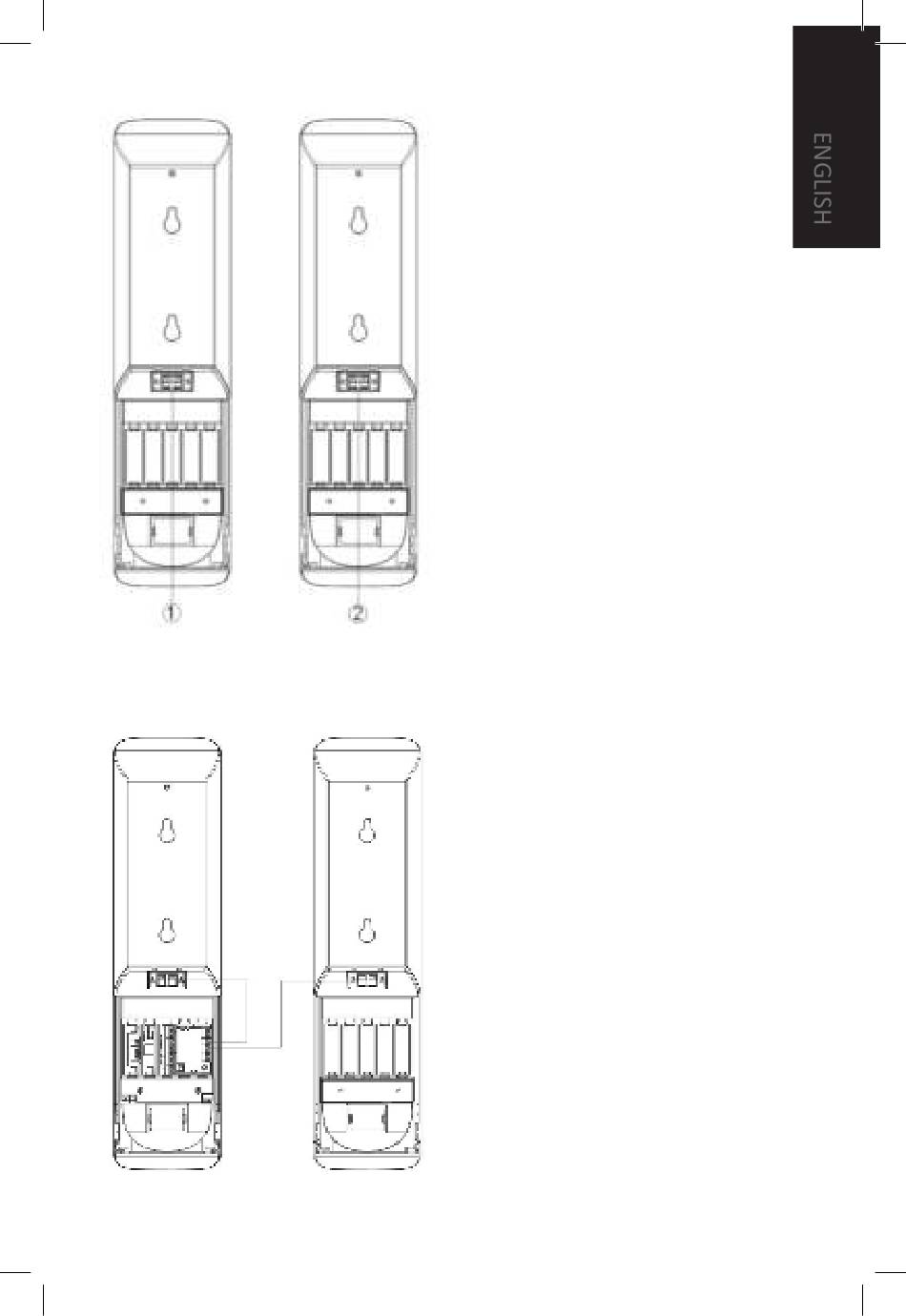

3. Connect cables to the loudspeakers
A) NOT USING TECHCONNECT MODULES
If using separate connectivity faceplate and
amplifier then only speaker cable needs to
be connected to the bare-wire terminals
shown (1, 2).
B) USING TECHCONNECT MODULES
If installing with Techconnect modules, then
follow these steps:
Step 1:
Install required Techconnect modules.
Step 2:
Connect audio from rear of connectivity
modules to inputs on rear of Techconnect
Amplifier.
Step 3:
Connect the loudspeaker outputs of the
amplifier module to the bare-wire speaker
terminals as shown.
