CONTROL BOX
Safety Instructions:
Before any manipulation of the controller power cord (230 volt)
Before each operation, all devices connected
Electrical connections must be performed by professionals
For direct connection to the electrical mains is necessary to provide a device that ensures disconnection from
the electrical mains, with an opening distance of the contacts that allows the complete disconnection under the
conditions ofovervoltage category III, in accordance with the rules of installation.
The plug or omnipolar switch must be accessible when the unit is installed
If the power cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer
or its service agent. The cable used must be of type H05VV-F 3 x 0.75 mm2 minimum cross-section.
Warning : Make all wiring connections to the wiring box before connecting the power supply 230V.
Failure to observe this procedure can cause severe damages to electronics.

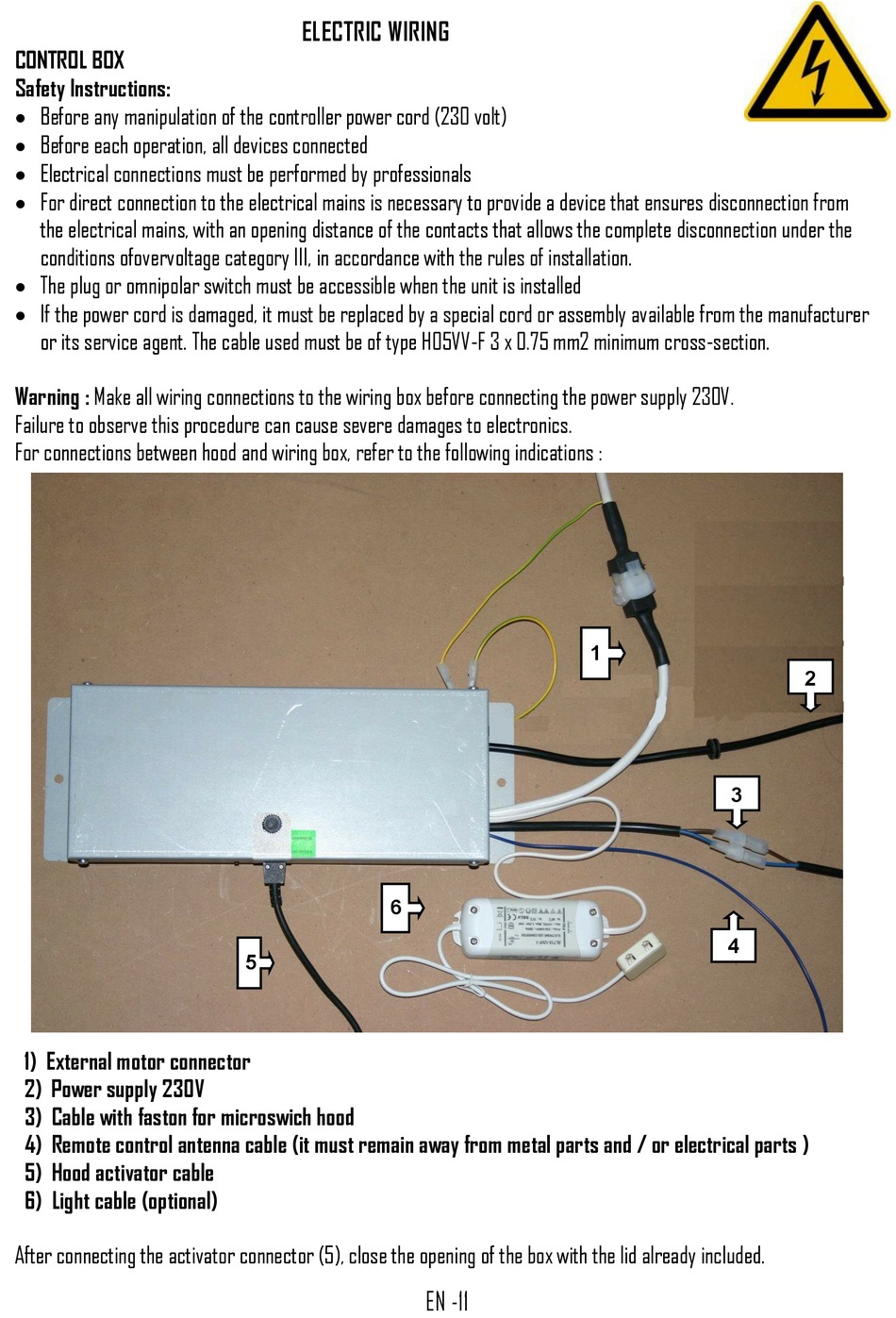

For connections between hood and wiring box, refer to the following indications :
1) External motor connector
2) Power supply 230V
3) Cable with faston for microswich hood
4) Remote control antenna cable (it must remain away from metal parts and / or electrical parts )
5) Hood activator cable
6) Light cable (optional)
After connecting the activator connector (5), close the opening of the box with the lid already included.
