Operation of the visualisation
560.6.14). These include:
Operation = normal operation;
• •
battery operation, e.g. in case of power failure; and
GB
• •
fault summary, e.g. a battery failure of a luminaire.
• •
Click on the coloured area to access a detailed presentation of the messages.
All connected self-contained luminaires can be blocked simultaneously on the
right side.
A function test of all luminaires is started, the logbook is displayed and further
settings are made in the lower blue control area.
Tap on the red button to close the software application if necessary.
3.2.2

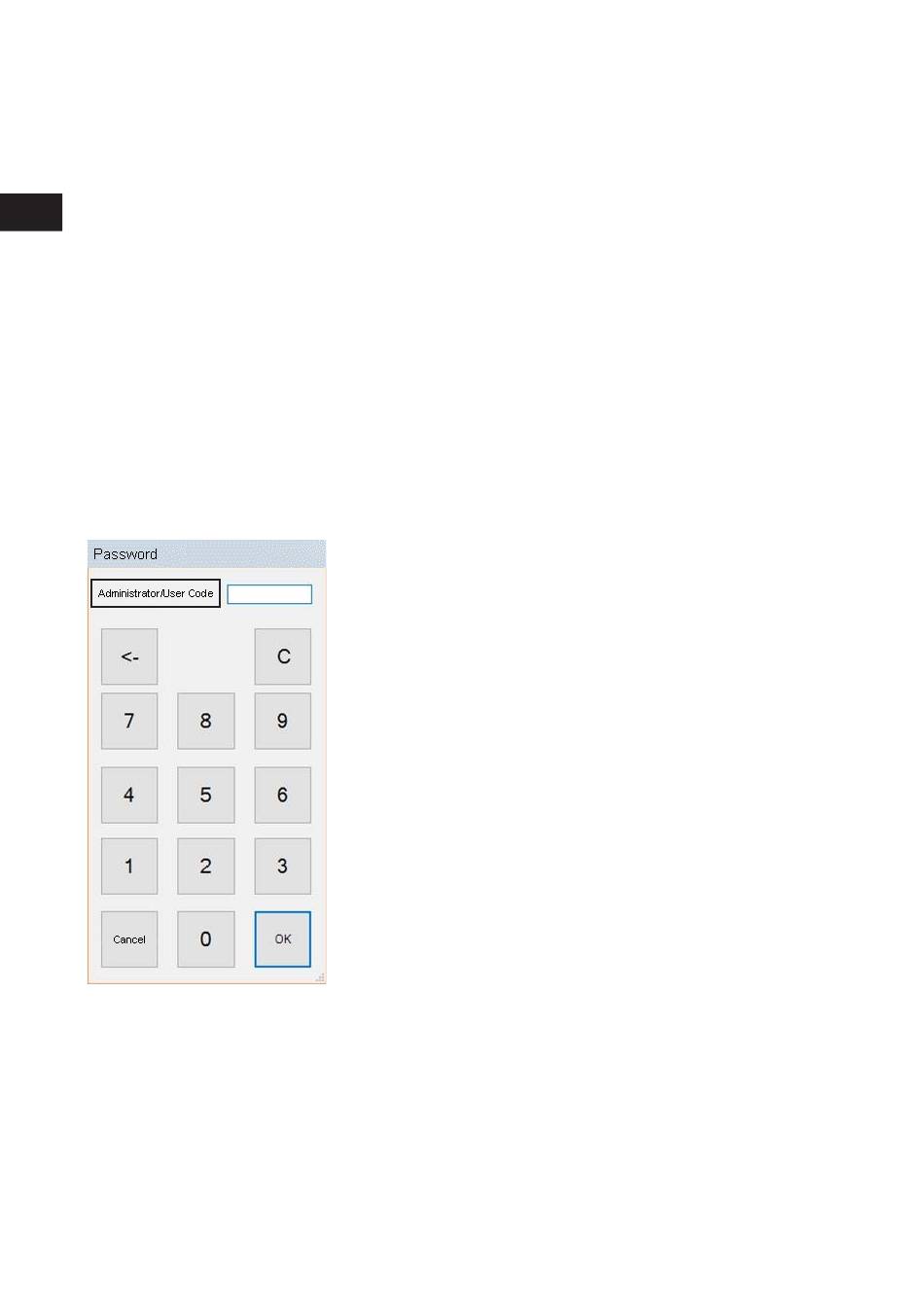

For configuration control operations, e.g. to block luminaires, a prompt window is
shown with a virtual numeric keypad to type in a PIN number:
8
Quick installation manual CGLine+ Web Touchscreen Controller ZNO2037700 B www.eaton.com
PIN authentication for operation
The Administrator PIN and User PIN are set ex
works. The Administrator has full access rights. The
User only has limited rights, e.g. to start a function
test. The rights required for performing an operation
are shown in the PIN prompt window.
Administrator
9876 followed by OK
User
0000 followed by OK
N ote:
Administrator and User can be changed in the
settings. See next page.
The PIN numbers of the
