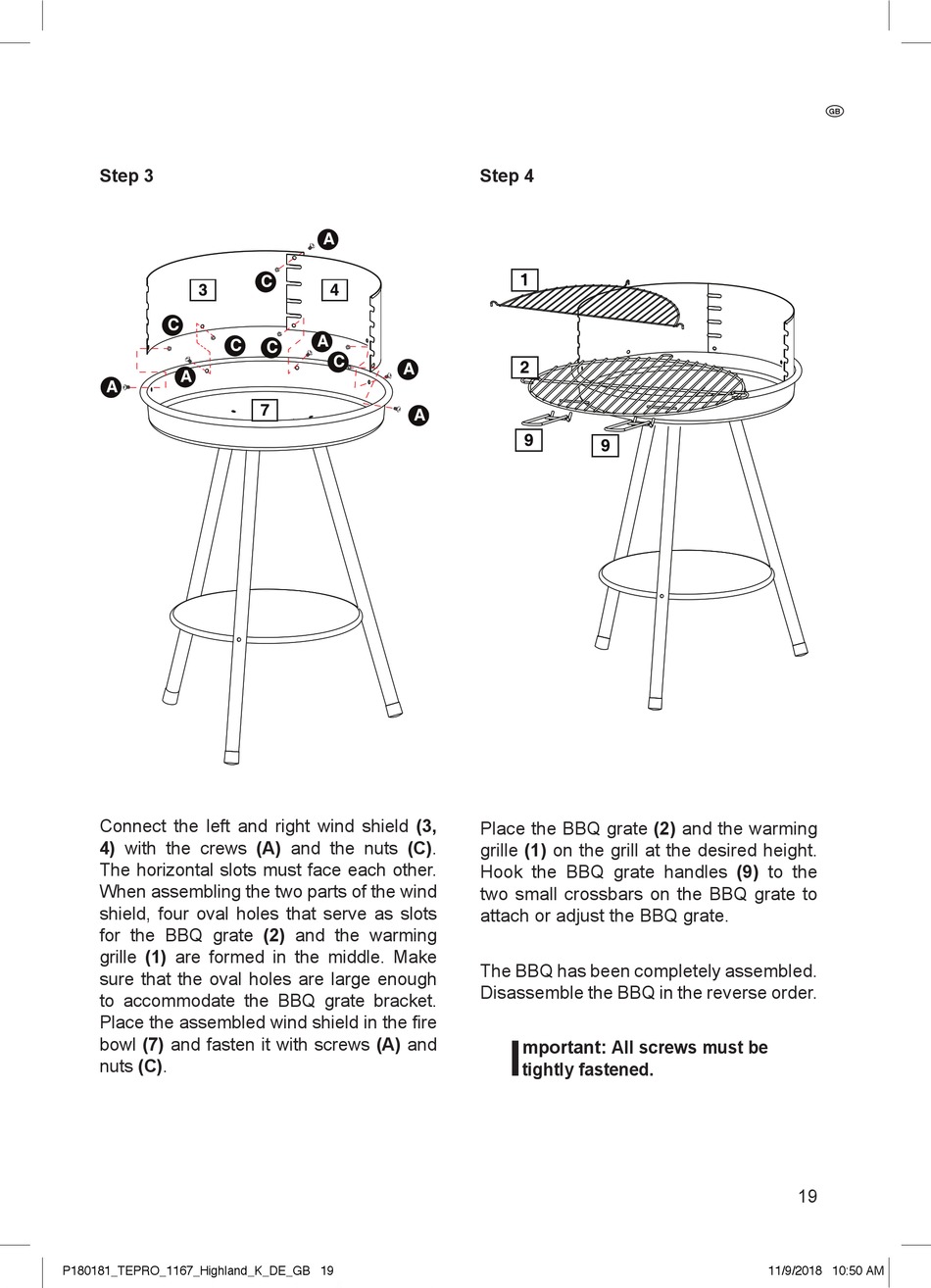

Step 3
Connect the left and right wind shield (3,
4) with the crews (A) and the nuts (c).
The horizontal slots must face each other.
When assembling the two parts of the wind
shield, four oval holes that serve as slots
for the BBQ grate (2) and the warming
grille (1) are formed in the middle. Make
sure that the oval holes are large enough
to accommodate the BBQ grate bracket.
Place the assembled wind shield in the fire
bowl (7) and fasten it with screws (A) and
nuts (c).
P180181_TEPRO_1167_Highland_K_DE_GB 19
Step 4
Place the BBQ grate (2) and the warming
grille (1) on the grill at the desired height.
Hook the BBQ grate handles (9) to the
two small crossbars on the BBQ grate to
attach or adjust the BBQ grate.
The BBQ has been completely assembled.
Disassemble the BBQ in the reverse order.
I
mportant: All screws must be
tightly fastened.
t
19
