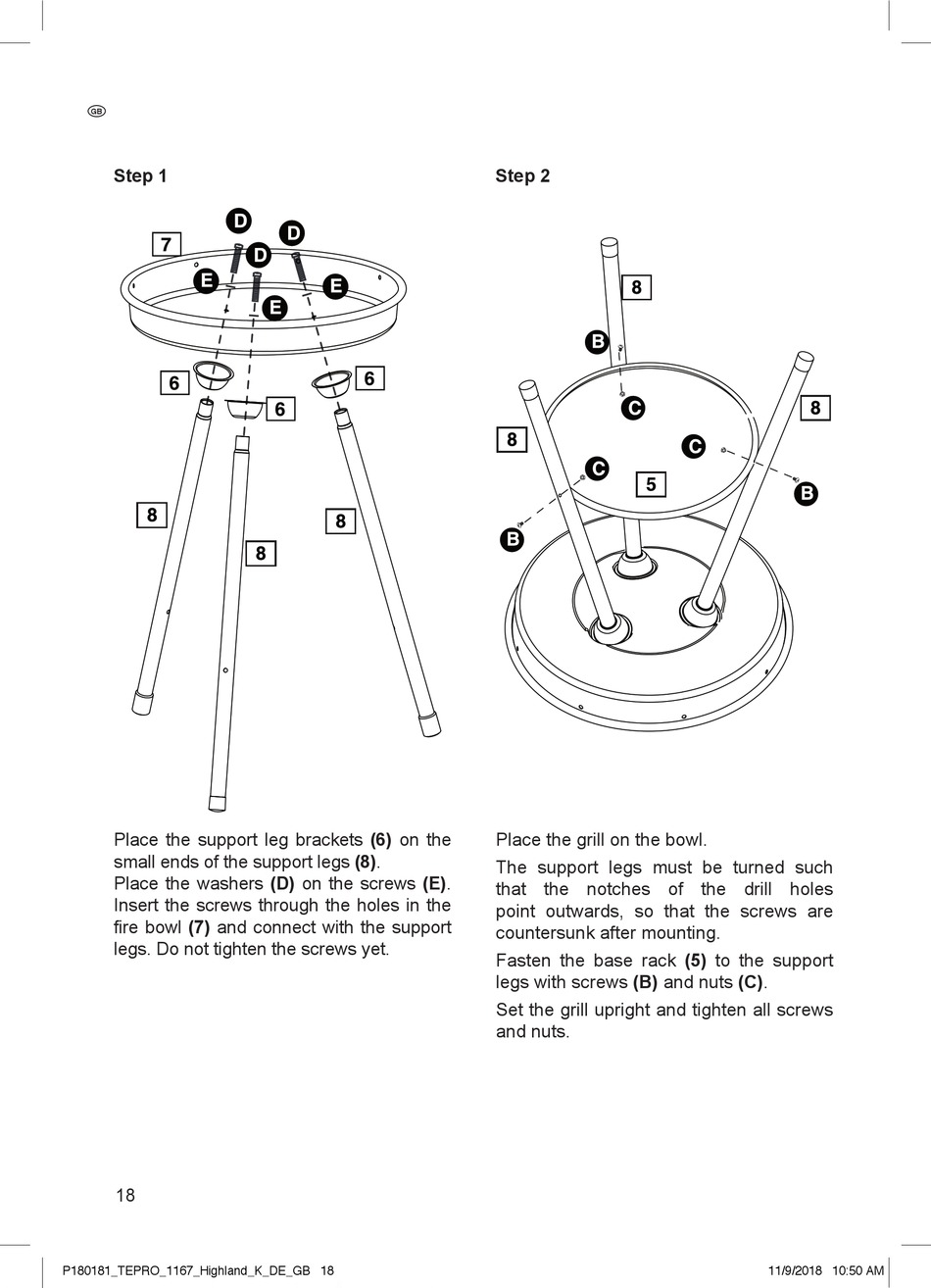

Step 1
Place the support leg brackets (6) on the
small ends of the support legs (8).
Place the washers (D) on the screws (E).
Insert the screws through the holes in the
fire bowl (7) and connect with the support
legs. Do not tighten the screws yet.
18
P180181_TEPRO_1167_Highland_K_DE_GB 18
Step 2
Place the grill on the bowl.
The support legs must be turned such
that the notches of the drill holes
point outwards, so that the screws are
countersunk after mounting.
Fasten the base rack (5) to the support
legs with screws (B) and nuts (c).
Set the grill upright and tighten all screws
and nuts.
