AXIS M31 Network Camera Series
Adjust the direction of the lens
Fit the lens tool to the lens holder, and adjust the position of the lens by
pointing the lens tool handle in the preferred direction (See illustration
on page 6). This can be done vertically from 0 to 90 degrees, and 30
degrees to the left or the right on either side in increments of five.
The lens holder can also be rotated to adjust the image.

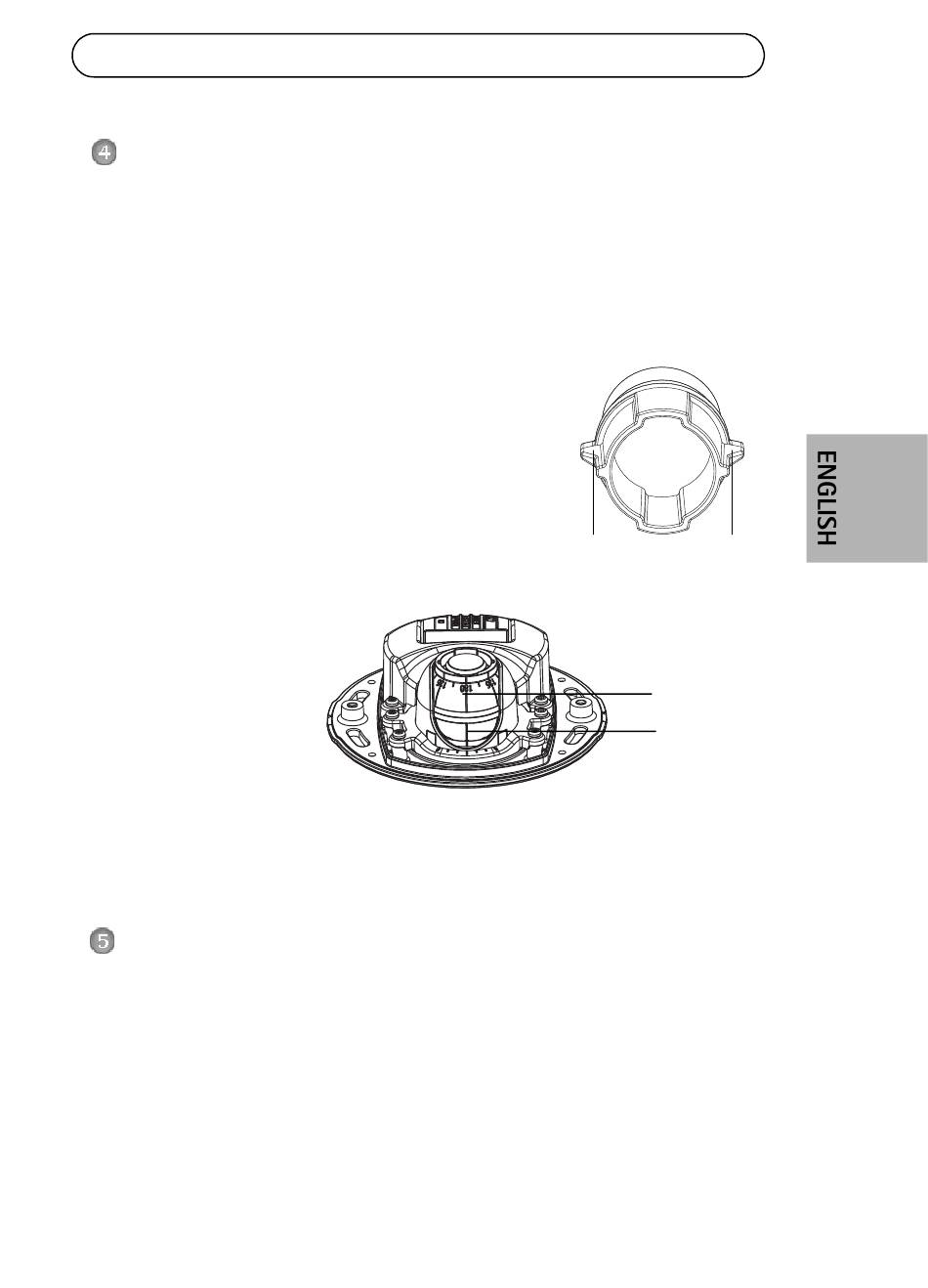

Align the ribs in the lens tool horizontally so that
the image is also aligned horizontally.
Note:
The '0' mark on the lens holder indicates the
bottom of the image and the '180' mark indicates
the top, see Hardware overview above. If the camera
is mounted upside down, adjust so the '0' mark is on
top and the '180' mark below the lens.
The line inside of the bot-
tom of the optic holder
should be aligned with
the line at the center of
the optic mount.
Do not turn the lens more
than one full turn.
Access the video stream
Use the tools provided on the Installation and Management Software CD
to assign an IP address, set the password and access the video stream.
This information is also available from the support pages on
www.axis.com/techsup
Page 15
Align ribs horizontally
line
line
