AXIS M31 Network Camera Series
Connectors
Network connector (AXIS M3113-R/AXIS M3114-R) - Female RJ-45
Ethernet connector for 10BaseT/100BaseTX. Supports Power over
Ethernet. Using shielded cables is recommended.

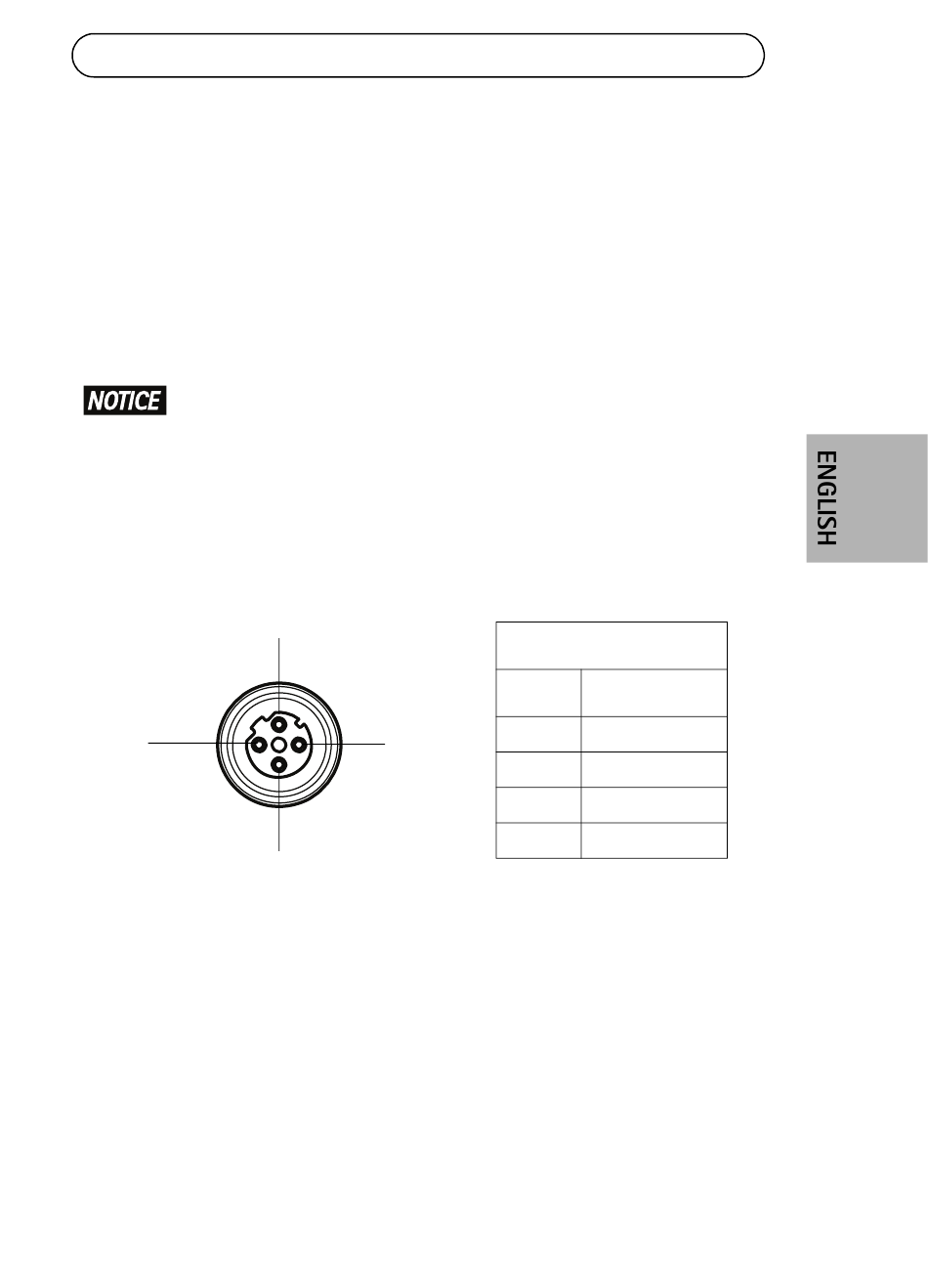

Network connector (AXIS M3113-R M12/AXIS M3114-R M12/AXIS
M3114-R M12 2MM - Rugged female, D-coded M12 connector.
Supports Power over Ethernet. Using shielded cables is recommended.
The product shall be connected using a shielded network cable (STP). All
cables connecting the product to the midspan shall be shielded (STP) and
intended for their specific use. Make sure the network switch is properly
grounded. See Electromagnetic Compatibility (EMC) for regulatory
requirements on page 2.
RX+
TX+
TX-
RX-
Page 11
M12
Data Power
TX+ DC+/DC-
RX+ DC-/DC+
TX- DC+/DC-
RX- DC-/DC+
