Installation and Connection

The following uses the DATALINK PRO 900, DJI Matrice 600, D-RTK and
DJI Intelligent Flight Battery to illustrate a typical installation and connection.

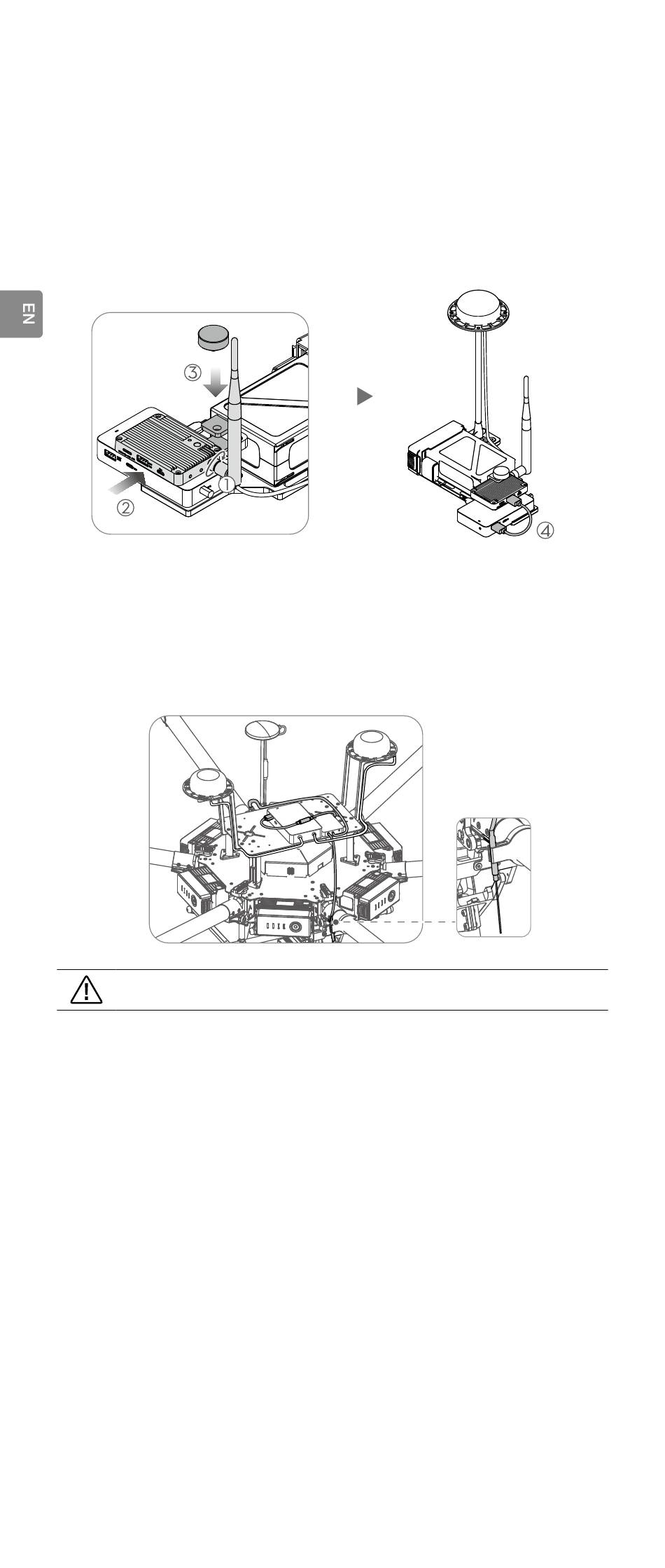

1. Attach the Base Station antenna. Place the Base Station on the D-RTK
Ground System's base board, and then fix it with a screw (included with
the D-RTK product). Then connect the Base Station and the D-RTK
Ground System via an 8-pin cable.
2. Install the Mobile Station to the DJI Matrice 600 with double-sided tape.
Attach the antennas to the Mobile Station and fix them to the frame
arms with two clips. Then connect the Mobile Station and the D-RTK Air
System via an 8-pin cable.
•
Refer to the "D-RTK User Manual" for details if using the D-RTK.
Usage
Use the DATALINK PRO in an open environment free from radio interference.
The DATALINK PRO can work in Full Duplex Mode, Broadcast Mode and
Ground Station Mode as described below:
1. Full Duplex Mode: Toggle the 4-position switch to the UART_SW1,
CAN_SW2 or USB_SW3 position. This is useful for point-to-point
communications.
2. Broadcast Mode: Toggle the 4-position switch to the UART_SW1, CAN_
SW2 or USB_SW3 position. This is useful for point to multi-point (up to
32) transmissions.
3. Ground Station Mode: Be sure to toggle the 4-position switch to the
COMBO_SW4 position when using the DJI Ground Station. The DJI
Ground Station supports up to five Air Systems. (Refer to www.dji.com
to learn more, as the number varies according to region.)
