Introduction
The DATALINK PRO is used for real-time wireless data transmission, including
communication between the Base Station and the Mobile Station. There
are DATALINK PRO 400 and DATALINK PRO 900 versions to meet the
requirements of different regions. The multi-functional bidirectional transmission
link is perfect for the DJI A3 flight control system, D-RTK and Ground Station.
Use frequency bands near 400 MHz and 900 MHz to avoid radio interference
with the DJI Lightbridge and remote controller. Support for multiple interfaces,
such as USB, CAN and UART, offers additional connectivity.

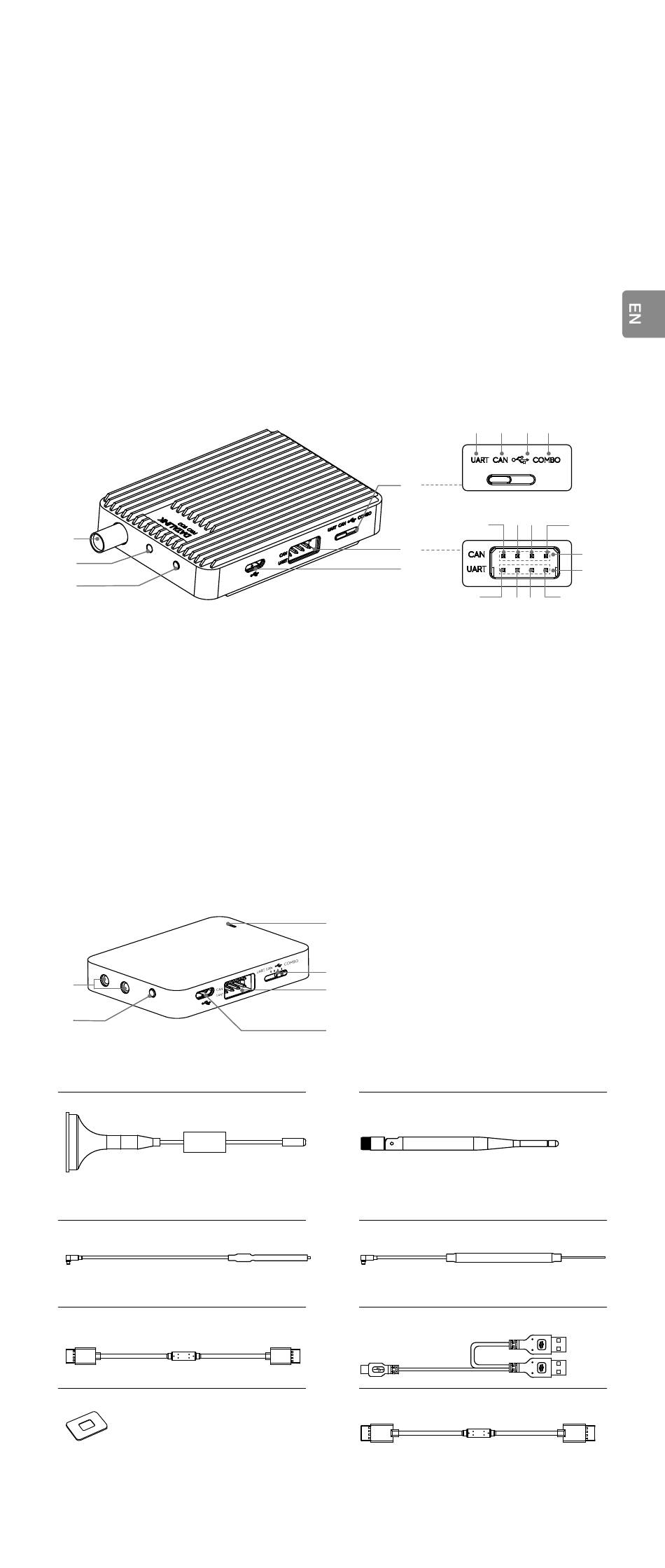

Overview

Base Station

1
2
3
1. Antenna Interface
2. Working Status Indicator
3. Linking Button
4. Micro USB
5. CAN/UART Port, CAN port and UART
port can be used separately.
A. CAN port with baud rate of 1 Mbps.
A1: Power (DC 9 V input)
A2: GND
A3: CAN-H
A4: CAN-L

Mobile Station

1
2
Base Station Antenna*
DATALINK PRO 400 Antenna ×1
Mobile Station Antenna *
DATALINK PRO 400 Antenna ×3
Accessories
* The DATALINK PRO 400 and DATALINK PRO 900 use different antennas with identical
functionality. No need to install antennas for the TAIWAN version as the antennas are built-in.
8-pin Cable ×2
Double-sided tape
6
5
4
B. UART port with baud rate 115200 bps
supported.
B1: Power (DC 9 V input)
B2: GND
B3: UART-RX
B4: UART-TX
6. 4-position Switch
C1: UART_SW1
C2: CAN_SW2
C3: USB_SW3
C4: COMBO_SW4
1. Antenna Interface
6
2. Linking Button
3. Micro USB
5
4. CAN/UART Port (same specification
4
as the Base Station)
5. 4-position Switch (same specification
3
as the Base Station)
6. Working Status Indicator
or DATALINK PRO 900 Antenna ×1
or
DATALINK PRO 900 Antenna ×3
Micro USB Cable ×1
4-pin Cable ×1
© 2016 DJI All Rights Reserved.
C1 C2 C3 C4
A2 A3
A1 A4
A
B
B1 B4
B2 B3
3
