Babboe CURVE Einbauanleitung Seite 5

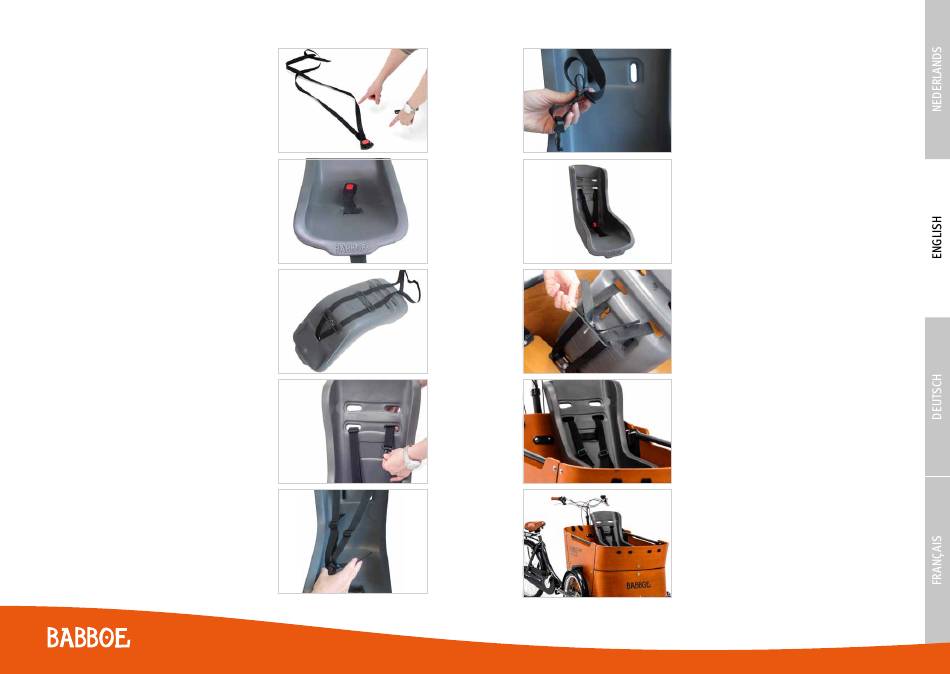

Step 2:
Attaching the baby seat or toddler seat
1. Insert the bolt through the bottom plate and then into
the hole in the bottom bench. (photo A)
2. Thread both ends of the belt through the bottom hole
in the toddler seat to approximately 7 cm from the end.
(photo B)
3. Turn the toddler seat around and thread both belt ends
along the back through both plates. Baby seat:
the plates have a wide and a narrow opening,
the narrow opening should be at the bottom. (photo C)
4. Thread the belts from the back of the seat to the front
through the openings in the toddler seat. Choose either
the high or low opening, depending on the size of the
child. (photo D)
5. Thread the belts first through the three-bar slides and
then through the easy-lock inserts. (photo E)
6. Adjust the belts to equal height by drawing the belts
through the three-bar slides. (photo F) The belts will
later be adjusted to the exact length. The toddler seat is
now ready to be mounted onto the bench. (photo G)
8
A.
B.
C.
D.
E.
Step 3:
Attaching the baby seat or toddler seat
1. Insert the bolt through the bottom plate and then into the
2. Attach the adjusting nut, but do not tighten it yet.
F.
3. Now place the toddler seat so that it faces in right direction.
4. Insert the second bolt through the hole in the Velcro and
5. Attach the adjusting nut.
G.
6. Draw the Velcro through the openings and join the Velcro
7. Adjust the belts to the correct length and tighten both
H.
8. The toddler seat is now ready for use. (Foto J)
I.
J.
J.
hole in the bottom bench.
then through the top plate. Then, insert the bolt through the
hole in the backrest of the box. (photo H)
mats together. (Foto I) It is not a problem if the belts
themselves are already threaded through these openings.
Baby seat: First draw the upholstery down from the top of
the seat before attaching the Velcro to the baby seat.
adjusting nuts.
You should still be able to move the toddler seat. Once your
child is seated, the belts will tighten and secure the entire
seat to the cargo bike. The baby seat is attached using the
same procedure.
9
