INSTRUCTION FOR ATTACHING BABY SEAT/TODDLER SEAT
Initial remarks
This instruction guide shows you how to attach the toddler seat. The baby seat is attached using
the same procedure unless there are additional instructions for the baby seat.
Would you prefer to see how to attach the toddler seat or baby seat? Watch this instructional video:
https://youtu.be/-_lYh_Ll9oE

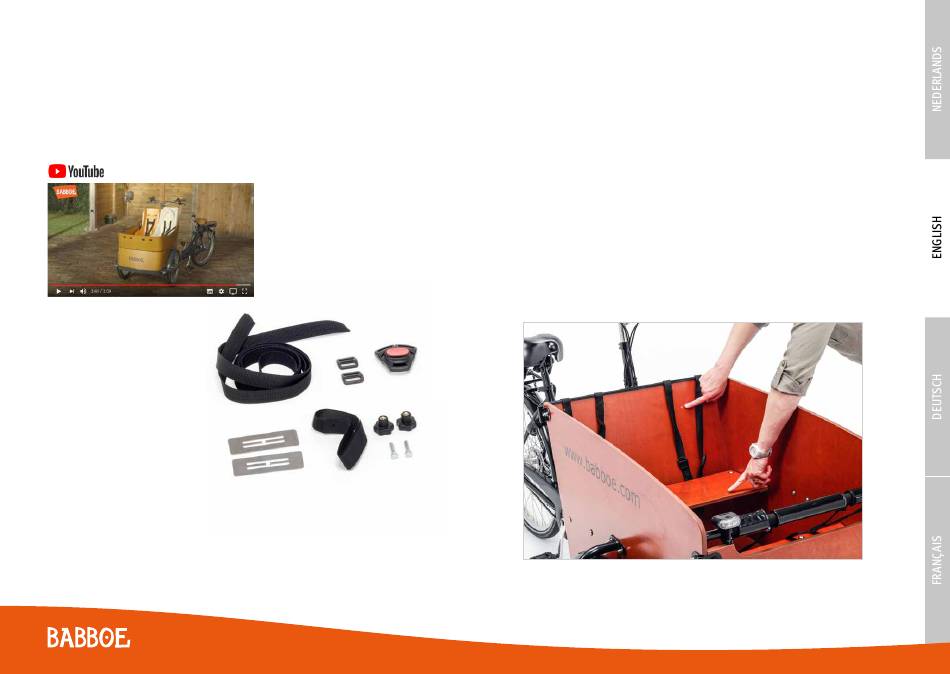

The package contains the following
• 2 plates
• 2 three-bar slides
• 2 easy-lock inserts
• 1 belt with easy-lock
• 2 bolts
• 2 adjusting nuts
• 1 piece of Velcro
Required equipment
• Drill (+ 6 mm wood drilling bit)
• Measuring tape
• Pencil
• Cross-head (Phillips-head) screwdriver
• Spanner (size 10)
6
Assembly
Step 1: Preparing the cargo bike
We strongly advise you to attach the toddler chair on the side closest to the handlebar because the back panel
is the highest.
BABBOE CURVE, CITY, MINI, CARVE
1. Drill a hole exactly between the two holes where the seat belts come through the back panel*.
2. Remove the existing belts in the area where the toddler seat will be placed.
* You can also use the existing holes through which the original belts are threaded, but then the chair will not be situated
completely upright on the bench.
BABBOE BIG
1. Drill a hole approximately 7 cm from the top edge and 14 cm in from the side (measured from the inside).
2. Remove the existing belts in the area where the toddler seat will be placed.
