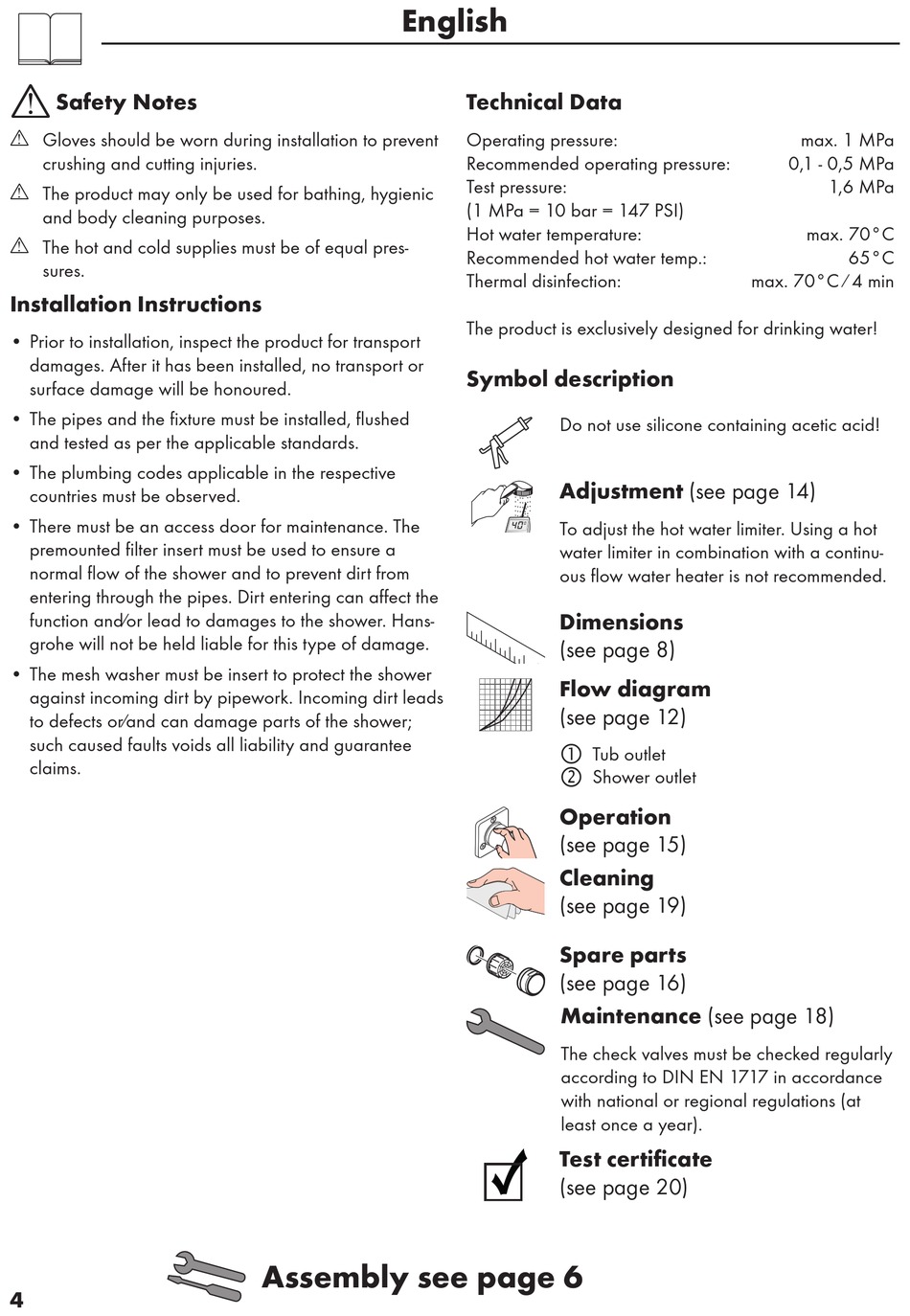

Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The product may only be used for bathing, hygienic
and body cleaning purposes.
The hot and cold supplies must be of equal pres-
sures.
Installation Instructions
• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be observed.
• There must be an access door for maintenance. The
premounted filter insert must be used to ensure a
normal flow of the shower and to prevent dirt from
entering through the pipes. Dirt entering can affect the
function and⁄or lead to damages to the shower. Hans-
grohe will not be held liable for this type of damage.
• The mesh washer must be insert to protect the shower
against incoming dirt by pipework. Incoming dirt leads
to defects or⁄and can damage parts of the shower;
such caused faults voids all liability and guarantee
claims.
4
English
Assembly see page 6
Technical Data
Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
Thermal disinfection:
The product is exclusively designed for drinking water!
Symbol description
Do not use silicone containing acetic acid!
Adjustment (see page 14)
To adjust the hot water limiter. Using a hot
water limiter in combination with a continu-
ous flow water heater is not recommended.
Dimensions
(see page 8)
Flow diagram
(see page 12)
Tub outlet
Shower outlet
Operation
(see page 15)
Cleaning
(see page 19)
Spare parts
(see page 16)
Maintenance (see page 18)
The check valves must be checked regularly
according to DIN EN 1717 in accordance
with national or regional regulations (at
least once a year).
Test certificate
(see page 20)
max. 1 MPa
0,1 - 0,5 MPa
1,6 MPa
max. 70°C
65°C
max. 70°C ⁄ 4 min
