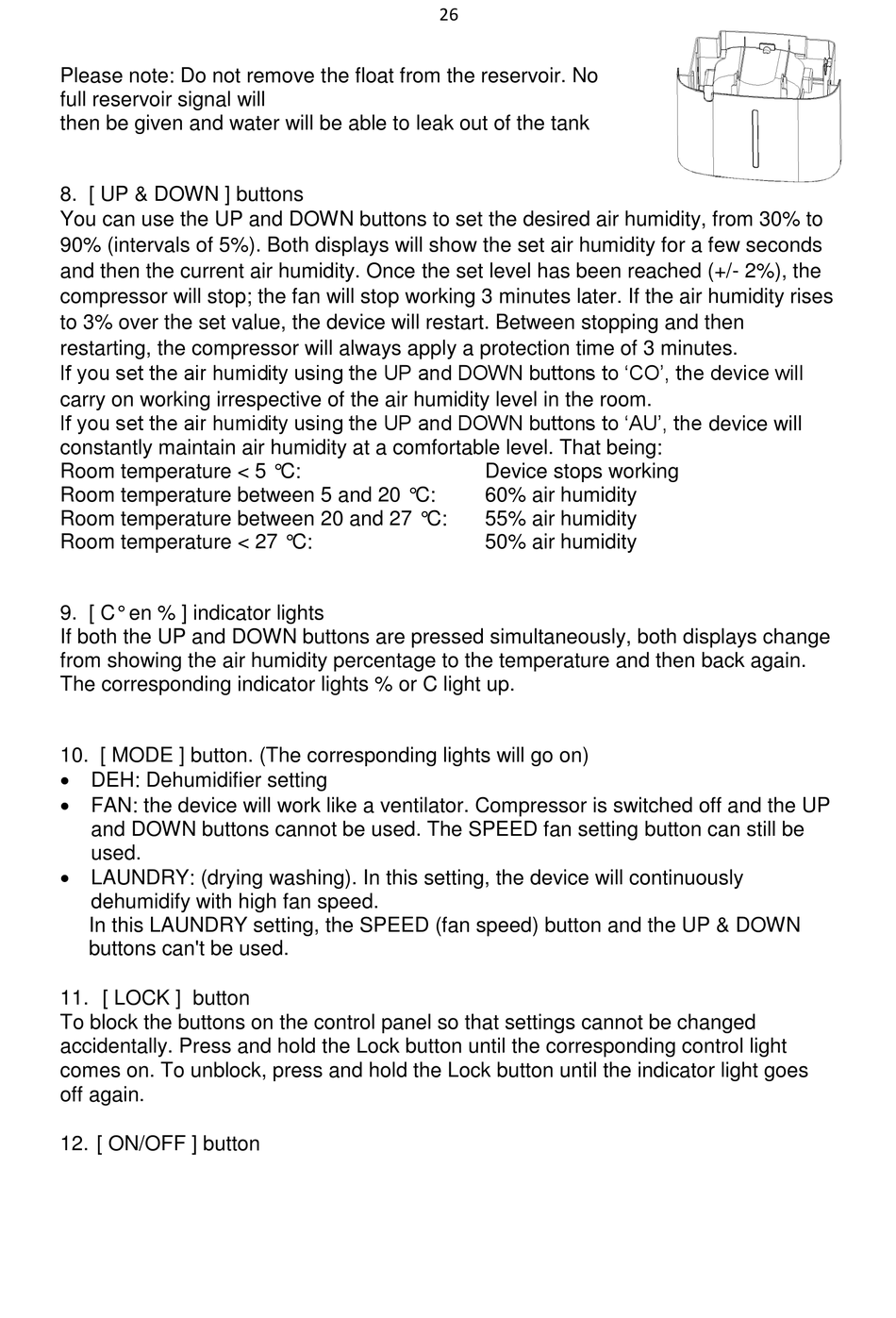

Please note: Do not remove the float from the reservoir. No
full reservoir signal will
then be given and water will be able to leak out of the tank
8. [ UP & DOWN ] buttons
You can use the UP and DOWN buttons to set the desired air humidity, from 30% to
90% (intervals of 5%). Both displays will show the set air humidity for a few seconds
and then the current air humidity. Once the set level has been reached (+/- 2%), the
compressor will stop; the fan will stop working 3 minutes later. If the air humidity rises
to 3% over the set value, the device will restart. Between stopping and then
restarting, the compressor will always apply a protection time of 3 minutes.
If you set the air humidity using the UP and DOWN buttons to 'CO', the device will
carry on working irrespective of the air humidity level in the room.
If you set the air humidity using the UP and DOWN buttons to 'AU', the device will
constantly maintain air humidity at a comfortable level. That being:
Room temperature < 5 °C:
Room temperature between 5 and 20 °C:
Room temperature between 20 and 27 °C:
Room temperature < 27 °C:
9. [ C° en % ] indicator lights
If both the UP and DOWN buttons are pressed simultaneously, both displays change
from showing the air humidity percentage to the temperature and then back again.
The corresponding indicator lights % or C light up.
10. [ MODE ] button. (The corresponding lights will go on)
DEH: Dehumidifier setting
FAN: the device will work like a ventilator. Compressor is switched off and the UP
and DOWN buttons cannot be used. The SPEED fan setting button can still be
used.
LAUNDRY: (drying washing). In this setting, the device will continuously
dehumidify with high fan speed.
In this LAUNDRY setting, the SPEED (fan speed) button and the UP & DOWN
buttons can't be used.
11. [ LOCK ] button
To block the buttons on the control panel so that settings cannot be changed
accidentally. Press and hold the Lock button until the corresponding control light
comes on. To unblock, press and hold the Lock button until the indicator light goes
off again.
12. [ ON/OFF ] button
26
Device stops working
60% air humidity
55% air humidity
50% air humidity
