EX-1180HMS

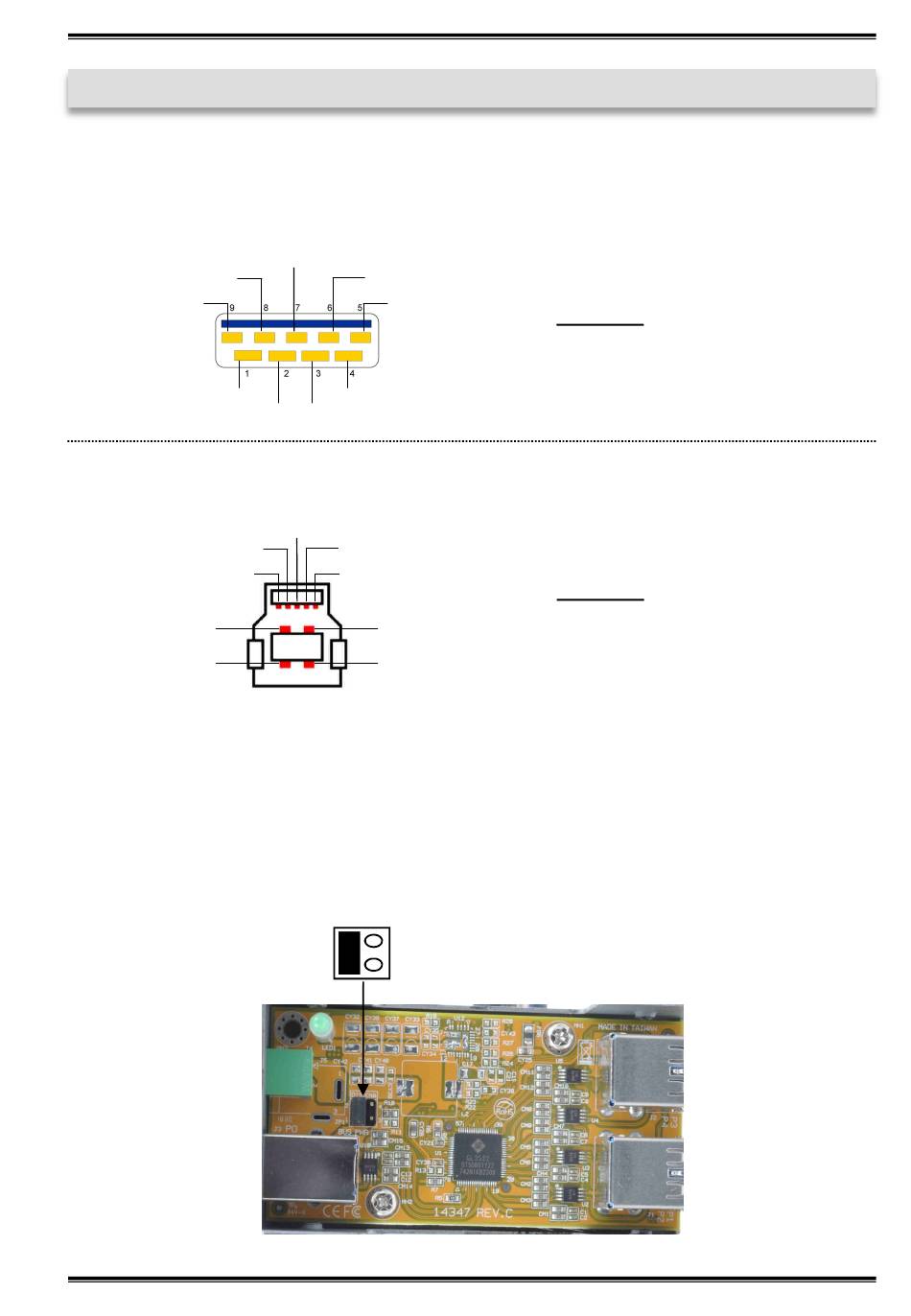

3. Layout, Connections & Jumper Settings
3.2 Connections
USB 3.1 (Gen1) A-Port:
StdB_SSTX +
StdB_SSTX -
VCC
USB 3.1 (Gen1) B-Port:
StdB_SSTX +
StdB_SSTX -
D-
D+

3.3 Jumper Settings

The EX-1180HMS comes with the setting Self-Power. You also have the possibility
the EX-1180HMS to supply Bus-Power. For this you open the case with the two
screws on both sides. Then you must set the jumper JP1 from DIS (Disable) to ENA
(Enable). See the following picture.
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
GND
D- D+
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
VBus
GND
DIS ENA
JP1
Attention!
Never plug in with force
or in wrong direction.
Attention!
Never plug in with force
or in wrong direction.
