HARTING
Electronics GmbH
ENGLISH
D-32339 Espelkamp
HARTING PushPull V4 Power
IP65 / IP67 connector for
line voltage (250 V) applications
Part.-No.: 09 46 145 3420
Description
The 250 V version of the HARTING PushPull Power
IP65 / IP67 connector is an universal solution for the
power supply in compact and robust applications.
The connector is loaded with two power contacts
and one pre-mating PE contact. The current carrying
contacts can carry up to 16 A each.
The innovative locking mechanism of the connector
enables an easy plugging and pulling with just one
hand.

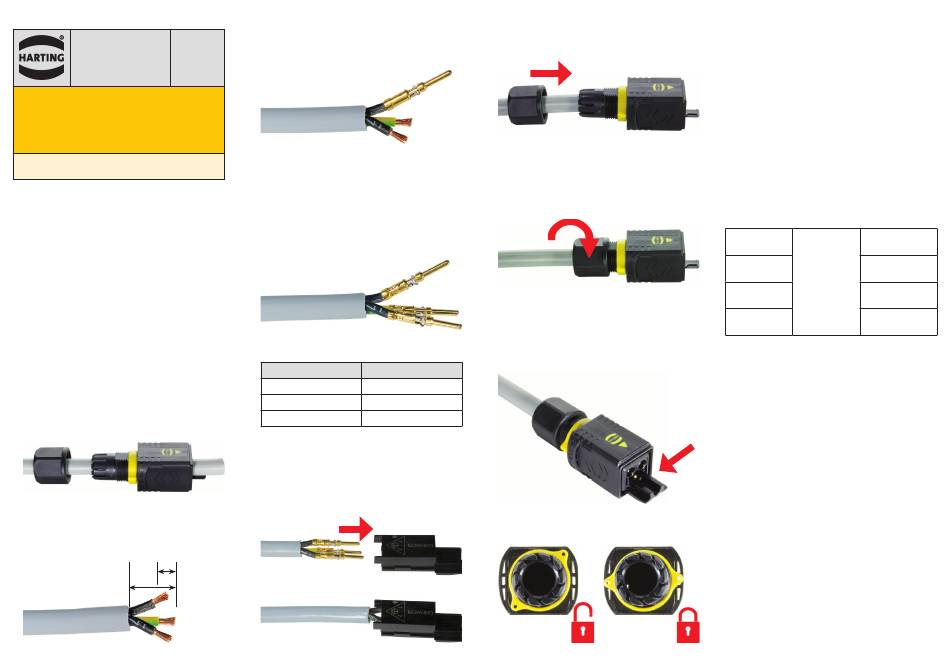

Assembly Instruction
1. Push the nut, thrust washer, seal and housing over
the cable sheath (Ø 4.9 ... 8.6 mm).
2. Strip the cable sheath and the single strands (wire
cross section 0,75...2,5 mm²).
4 mm
12-15 mm
3. Put the contacts on the strands up to the end of
the insulation.
4. Crimp the contacts with the HARTING PushPull
Power crimping tool (p/n 09 46 800 0000). The
crimping tool can also be used as an alternative
(p/n 09 99 000 0001) together with the Push Pull
Power locator (p/n 09 46 800 0010).
Wire cross section
Crimping depth
0.75 mm²
1.02
1.5 mm²
1.02
2.5 mm²
1.15
5. Push the contacts into the insulator body. Take the
PushPull Power insertion tool (09 46 800 0099) for
an easier assembly if necessary.
6. Push the housing over the insulator body.
7. Tighten the cable gland. A 18 mm open box wrench
is recommended for a secure tightening.
8. Insert the coding keys (p/n 09 46 840 0000) if
necessary.
Technical Data
Working Voltage:
250 V
Working current per contact:
16 A @ 55°C
No. of current carrying
contacts:
2 + PE
Electrical strength:
4 kV
Protection level:
IP65 / IP67
Wire gauge:
0.75 mm²
09 46 500 0403
(AWG 20 -18)
1.0 mm²
09 46 500 0407
with
(AWG 18)
crimp
1.5 mm²
contact
09 46 500 0401
(AWG 16 -14)
2.5 mm²
09 46 500 0405
(AWG 12)
Cable sheathe diameter:
4,5 ... 10 mm
Pollution degree:
3
Ambient temperature:
-40 ... 70°C
Mating cycles:
min. 750
Material:
UL 94-V0, halogen
free, UV-resistant
Part-No. 09 46 145 3420/99.00
Version 1.0 – 2018-01
Errors and technical changes excepted
